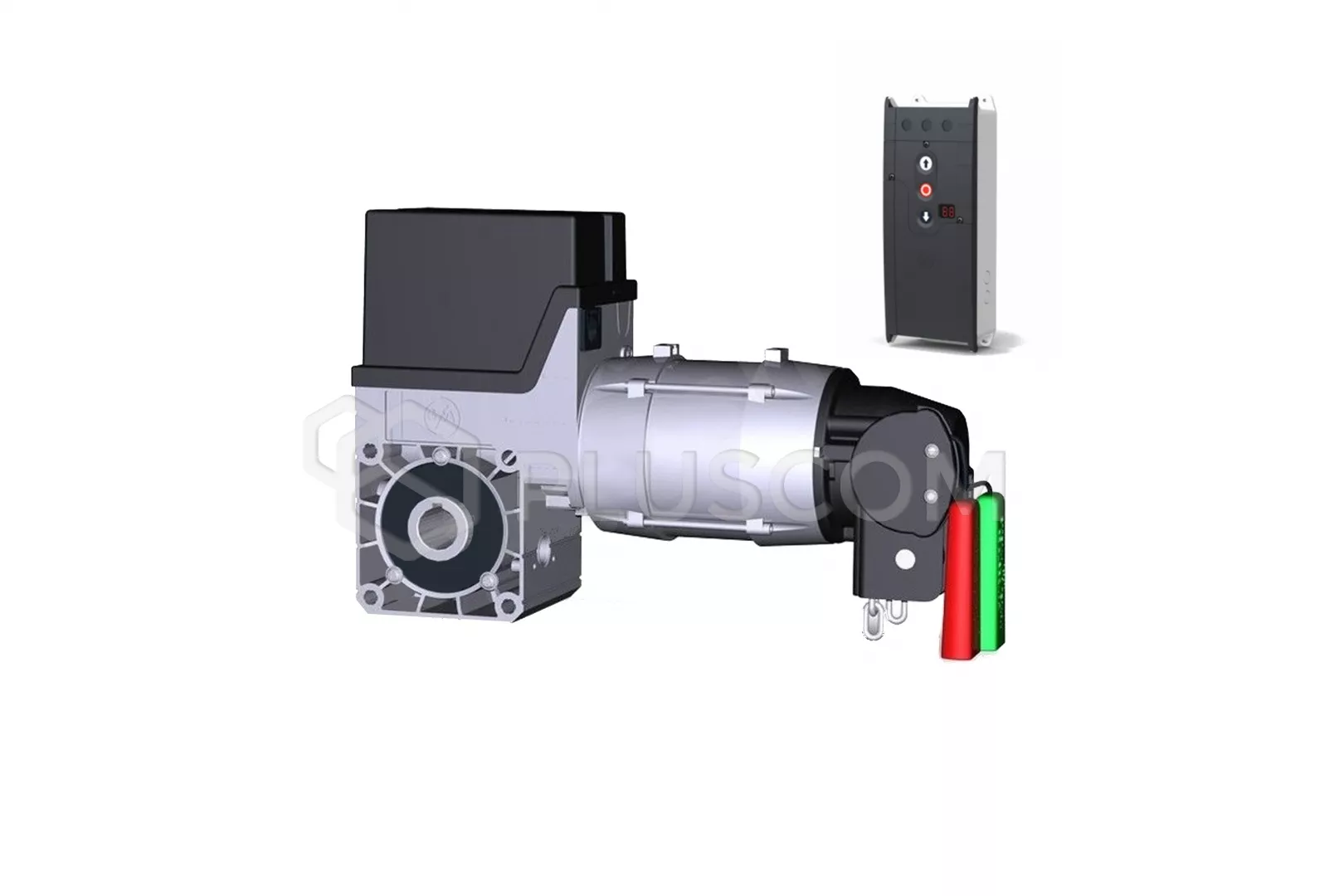

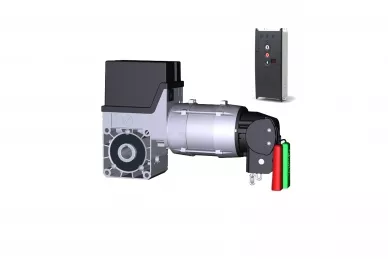

Came PL0127 SE 9 PLUS Set

CAME PL0127 SE 9 PLUS Set for industrial gates up to 400kg

SET INCLUDES

• Actuator 90 Nm, 400 V
• TS970 control, without cover
• TS-B CEE connection set 3N~400 V (5-pole) with plug-in mains cable, length 0.7 m
• TS-B1 black cover set for TS970 (small + large)
• DES connecting cable: 5 m
• OSE optical strip mounting kit with SK spiral cable, box and adapters 11/22 mm x 2
• Console for mounting the actuator with screws
• Cable extending the handles of the device for manual emergency unlocking (red-green)
• Wedge complete for Ø 25.4 mm (B 6.35 x 9.525 x 130)
• D-BAL for TS970 control panel

The SE 9 actuator is well designed and refined for sectional gates industrial loads up to 400 kg with mass balancing.
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and has all the functions of the proper one operation in accordance with the product standard DIN EN 13241.

MAIN PLUS FUNCTIONS

• Changing the direction of rotation using the keyboard
• Quick setting of end positions and all functions from the operator level
• Possibility to select the operating mode:
• • CLOSE/OPEN deadman mode
  • Dead man mode CLOSE/self-holding OPEN
  • Dead man mode with active contact strip
  • Self-holding CLOSE/OPEN
• Automatic recognition of the type of closing edges and analysis layout:
• • Optical contact strip
  • 8K2 NO contact principle
  • 1K2 break contact principle with testing
• Automatic closing time adjustable in the range of 1 - 240 seconds (can be turned on/off):
• • The gate closes automatically after reaching the upper end position or an intermediate position after the set time has elapsed
  • Possibility to select the time countdown again after the photocell is activated
• Adjustable intermediate position with individual programming options
• Setting the permissible number of contact strip operations during automatic timed closing (1-10)
• Possibility to set the reversal time when the contact strips are activated

TECHNICAL DATA

• power supply: 400V
• engine power: 370 W
• operating/maximum current 1.2 A/2.1 A
• resisting torque: 450 Nm
• maximum gate weight: 4000 N
• Output shaft Ø 25.4 mm
• maximum number of switches per hour: 20
• drive weight: 15 kg
