Came PL0132 SE 5 EURO (WITHOUT SKS-OSE) Set

825,13 EUR including 23.00% VAT
Product code: #26460
Manufacturer: CAME
  • Siłownik 50 Nm, 230V (NES)
  • Speed: 42/30 rev/min
  • MO720 control
  • Gate weight 250kg
  • Motor power: 300W
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
CAMEPL0139 DES connecting cables 9m Came PL0207 OSE set 6.5m Came PL0193 Chain connector T16/4 Came PL0142 DES connecting cables 7m Came PL0141 DES connecting cables 5m Came PL0440 OSE connection unit with spiral cable Came PL0168 TS970 control panel Came PL0143 DES connecting cables 13m Came PL0140 DES connecting cables 11m

CAME PL0129 SE 5 EURO Set for industrial gates for 250kg

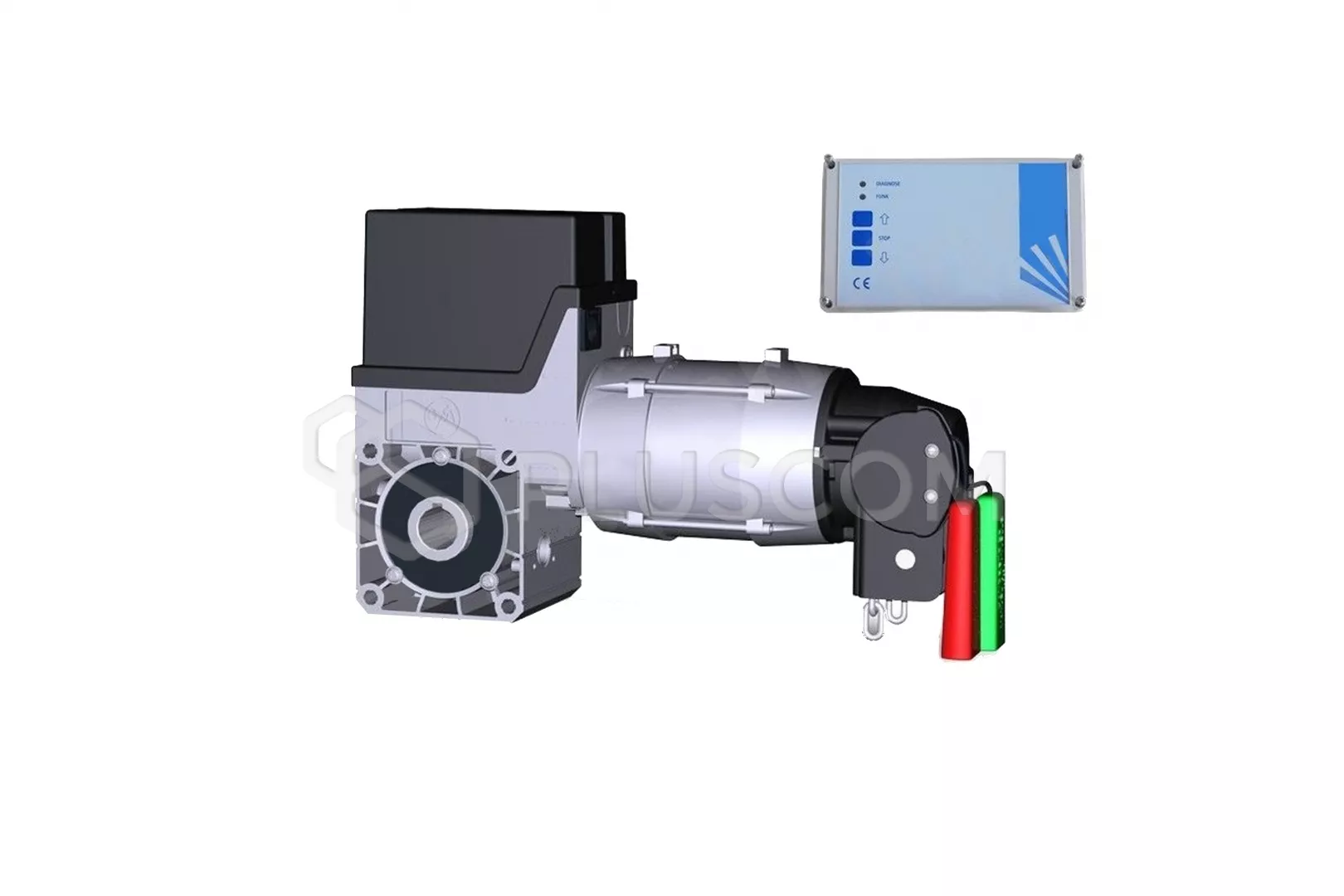

SET INCLUDES
  • Actuator 50 Nm, 230V
  • MO720 control
  • Cable 7 x 0.75/4860
  • Cable extending the handles of the manual emergency release device (red-green)
  • Console for mounting the actuator with screws
  • Complete wedge for Ø 25.4 mm (B 6.35 x 9.525 x 130)
CAME PL0132 SE 5 EURO (WITHOUT SKS-OSE) Set

CAME PL0132 SE 5 EURO (WITHOUT SKS-OSE) Set

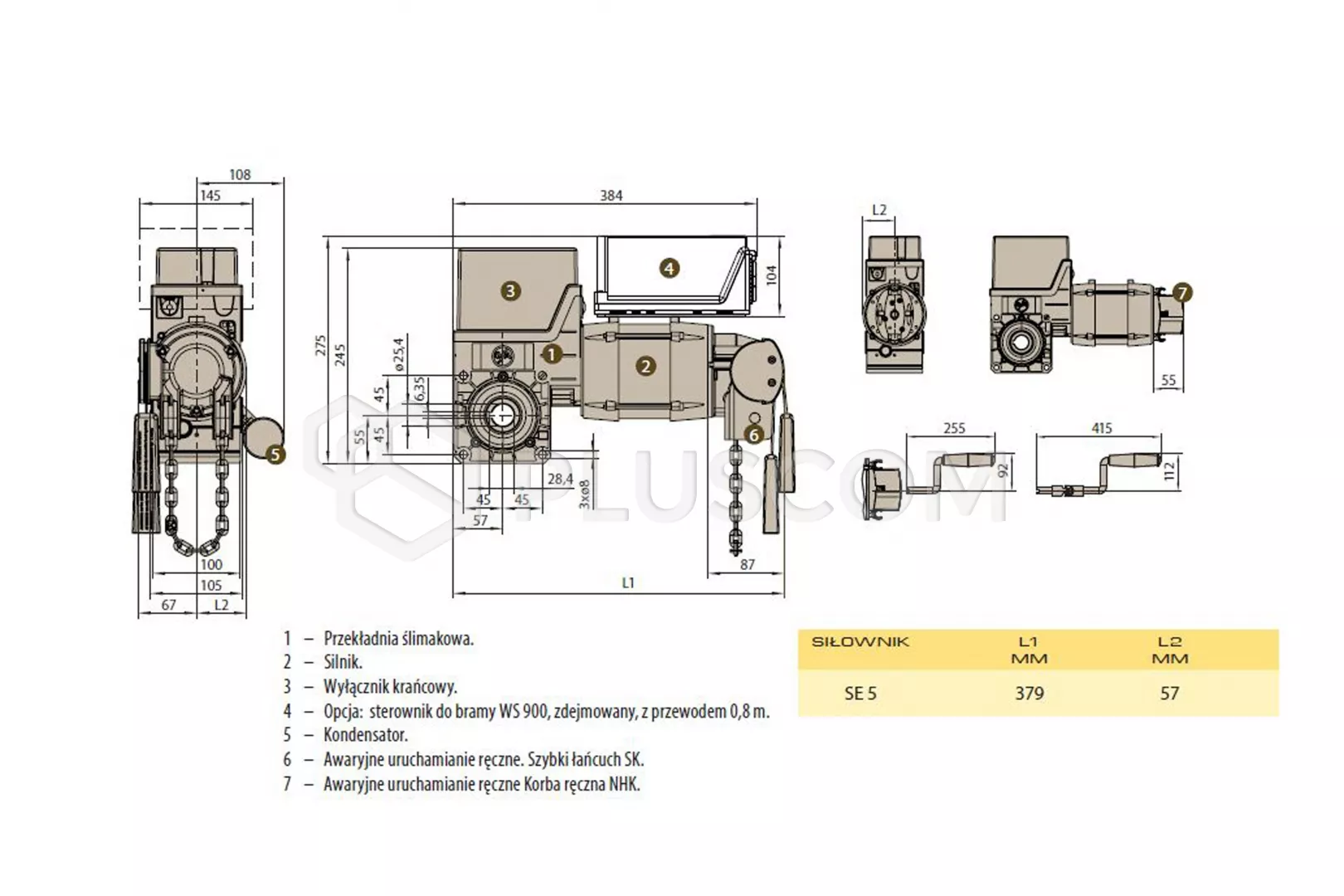

The SE 5 actuator is brilliantly designed and refined for sectional gates industrial loads up to 250 kg with mass balancing.
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and has all functions properly operated in accordance with the product standard DIN EN 13241.
CAME PL0132 SE 5 EURO (WITHOUT SKS-OSE) Set

CAME PL0132 SE 5 EURO (WITHOUT SKS-OSE) Set

TECHNICAL DATA

  • power supply: 230V
  • motor power: 300 W
  • operating/maximum current 1.1 A/1.9 A
  • output torque: 50 Nm
  • output speed: 24 rpm
  • resisting torque: 200 Nm
  • maximum gate weight: 2500 N
  • Output shaft Ø 25.4 mm
  • maximum number of switches per hour: 12
  • drive weight: 15 kg
