Came PL0123 SE 5 TOTMAN Set

698,69 EUR including 20.00% VAT
Product code: #26459
Manufacturer: CAME
  • Actuator 50 Nm, 230V (NES)
  • Speed: 42/30 rev/min
  • Gate weight 250kg
  • Motor power: 300W
  • Max. number of starts per hour: 12
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0141 DES connecting cables 5m Came PL0440 OSE connection unit with spiral cable Came PL0168 TS970 control panel Came PL0143 DES connecting cables 13m Came PL0140 DES connecting cables 11m CAMEPL0139 DES connecting cables 9m Came PL0207 OSE set 6.5m Came PL0193 Chain connector T16/4 Came PL0142 DES connecting cables 7m

CAME PL0123 SE 5 TOTMAN (WITHOUT SKS-OSE) Set for industrial gates up to 250kg


SET INCLUDES
  • 230 V actuator
  • Mounting kit with a three-function button
  • Console
  • Wedge complete for Ø 25.4 mm (B 6.35 x 9.525 x 130)
  • Cable extending the handles of the device for manual emergency unlocking (red-green)
CAME PL0123 SE 5 TOTMAN Set

CAME PL0123 SE 5 TOTMAN Set

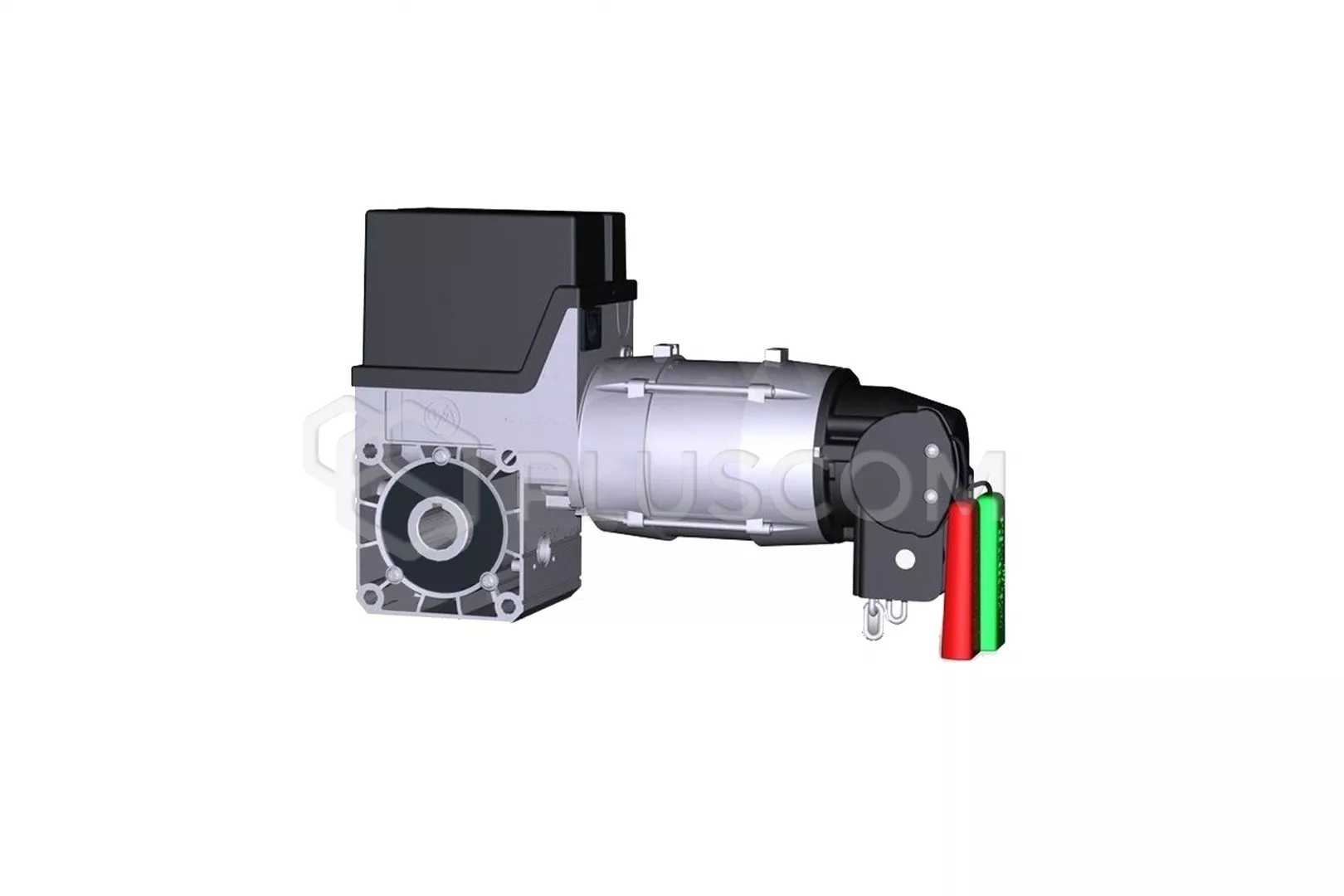

The SE 5 actuator is brilliantly designed and refined for sectional gates industrial loads up to 250 kg with mass balancing.
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and has all functions properly operated in accordance with the product standard DIN EN 13241.
CAME PL0123 SE 5 TOTMAN Set

CAME PL0123 SE 5 TOTMAN Set

TECHNICAL DATA

  • power supply: 230Vz
  • motor power: 300 W
  • operating/maximum current 1.1 A/1.9 A
  • output torque: 50 Nm
  • output speed: 24 rpm
  • resisting torque: 200 Nm
  • maximum gate weight: 2500 N
  • Output shaft Ø 25.4 mm
  • maximum number of switches per hour: 12
  • drive weight: 15 kg
