Came PL0312 SE 5 PLUS (WITHOUT SKS-OSE) Set

949,68 EUR including 23.00% VAT
Product code: #26466
Manufacturer: CAME
  • Actuator 50 Nm, 400 V
  • Speed: 42/30 rev/min
  • Gate weight: 250kg
  • TS970 control, without cover
  • Possibility to select the operating mode
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0168 TS970 control panel Came PL0143 DES connecting cables 13m Came PL0140 DES connecting cables 11m CAMEPL0139 DES connecting cables 9m Came PL0207 OSE set 6.5m Came PL0193 Chain connector T16/4 Came PL0142 DES connecting cables 7m Came PL0141 DES connecting cables 5m Came PL0440 OSE connection unit with spiral cable

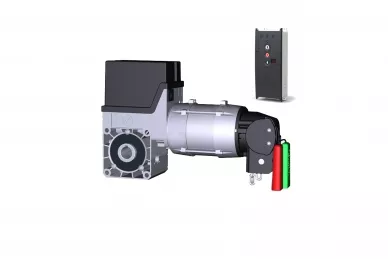

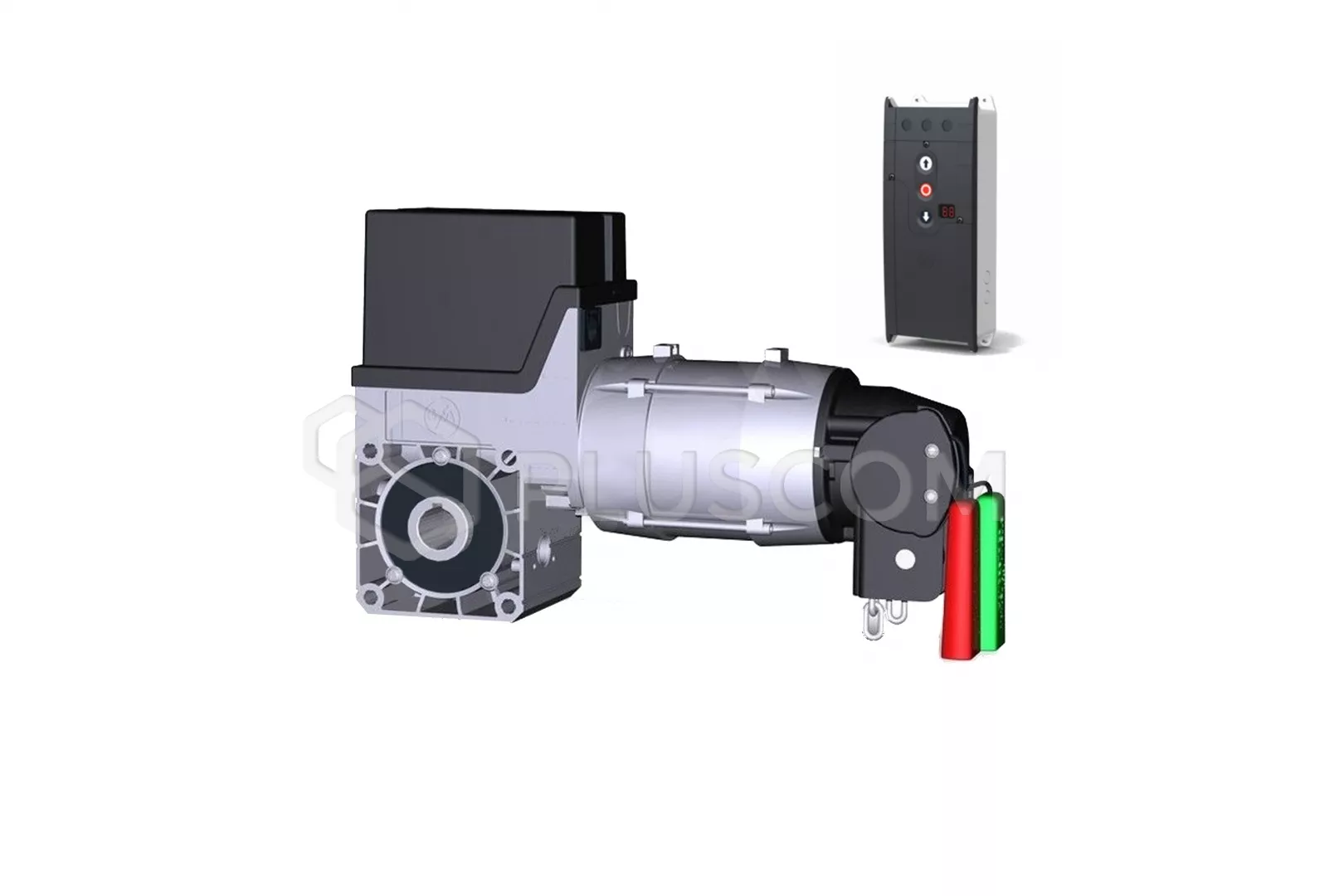

CAME PL0312 SE 5 PLUS (WITHOUT SKS-OSE) Set for industrial gates for 250kg


SET INCLUDES
  • Actuator 50 Nm, 400 V
  • TS970 control, without cover
  • TS-B CEE connection set 3N~400 V (5-pole) with plug-in mains cable, length 0.7 m
  • TS-B1 black cover set for TS970 (small + large)
  • DES connecting cable: 5 m
  • Console for mounting the actuator with screws
  • Cable extending the handles of the device for manual emergency unlocking (red-green)
  • Wedge complete for Ø 25.4 mm (B 6.35 x 9.525 x 130)
  • D-BAL for TS970 control panel
CAME PL0312 SE 5 PLUS (BEZ SKS-OSE) Set

CAME PL0312 SE 5 PLUS (BEZ SKS-OSE) Set


The SE 5 actuator is brilliantly designed and refined for sectional gates industrial loads up to 250 kg with mass balancing.
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and has all functions properly operated in accordance with the product standard DIN EN 13241.

MAIN PLUS FUNCTIONS

  • Changing the direction of rotation using the keyboard
  • Quick setting of end positions and all functions from the operator level
  • Possibility to select the operating mode:
    • CLOSE/OPEN deadman mode
    • Dead man mode CLOSE/self-holding OPEN
    • Dead man mode with active contact strip
    • Self-holding CLOSE/OPEN
  • Automatic recognition of the type of closing edges and analysis layout:
    • Optical contact strip
    • 8K2 NO contact principle
    • 1K2 break contact principle with testing
  • Automatic closing time adjustable in the range of 1 - 240 seconds (can be turned on/off):
    • The gate closes automatically after reaching the upper end position or an intermediate position after the set time has elapsed
    • Possibility to select the time countdown again after the photocell is activated
  • Adjustable intermediate position with individual programming options
  • Setting the permissible number of contact strip operations during automatic timed closing (1-10)
  • Possibility to set the reversal time when the contact strips are activated
CAME PL0312 SE 5 PLUS (BEZ SKS-OSE) Set

CAME PL0312 SE 5 PLUS (BEZ SKS-OSE) Set

TECHNICAL DATA

  • power supply: 400V
  • motor power: 300 W
  • operating/maximum current 1.1 A/1.9 A
  • output torque: 50 Nm
  • output speed: 24 rpm
  • resisting torque: 200 Nm
  • maximum gate weight: 2500 N
  • Output shaft Ø 25.4 mm
  • maximum number of switches per hour: 12
  • drive weight: 15 kg
