Satel ACCO-KP2 Door controller

Satel ACCO-KP2 Door controller module

ACCO KP2 is a module to control one door (e.g. door) within ACCO or ACCO NET access control systems. In terms of user rights and time schedules for each of them has extensive capabilities and can work as a standalone device.
User authorization is based on the code, proximity card (passive transponder in the form of a card, key fob, etc.) or DALLAS iButton.

The device is equipped with 2 OC type outputs (e.g. for bidirectional operation gates and revolving gates) and 1 relay output to operate the lock electromagnetic or other device that activates the passage. Inputs and module outputs can also be used for cooperation, among others with system alarm.

The most important features of the device are:

• Ability to connect up to two terminals
• Support for different terminals to enable user identification:
• ACCO-KLCDR keypad: proximity card / code
• ACCO-SCR keypad: proximity card / code
• CZ-EMM, CZ-EMM2, CZ-EMM3 or CZ-EMM4 readers: proximity card
• CZ-DALLAS reader: DALLAS iButton
• third-party readers that send data in the Wiegand format
• 5 programmable inputs:
• support for devices with NO and NC type outputs
• different input types
• Additional inputs for:
• connecting the readers
• controlling the presence of the readers
• connecting the tamper circuit
• Power input
• 2 programmable outputs:
• low-current OC type outputs
• different output types
• Additional outputs for connecting the readers
• Relay output for controlling electric strike, electromagnetic lock, gate controller or other devices which activate the door
• 4 power outputs (0.5 A / 12 VDC)
• Over 24 thousand events
• Recording of work time information
• Up to 1024 users
• User can be assigned:
• code
• proximity card (passive transponder in the form of card, key tag)
• DALLAS iButton
• User rights to define the extent of door access
• Time schedules:
• Up to 256 weekly schedules
• Up to 256 daily schedules
• Up to 256 time slots

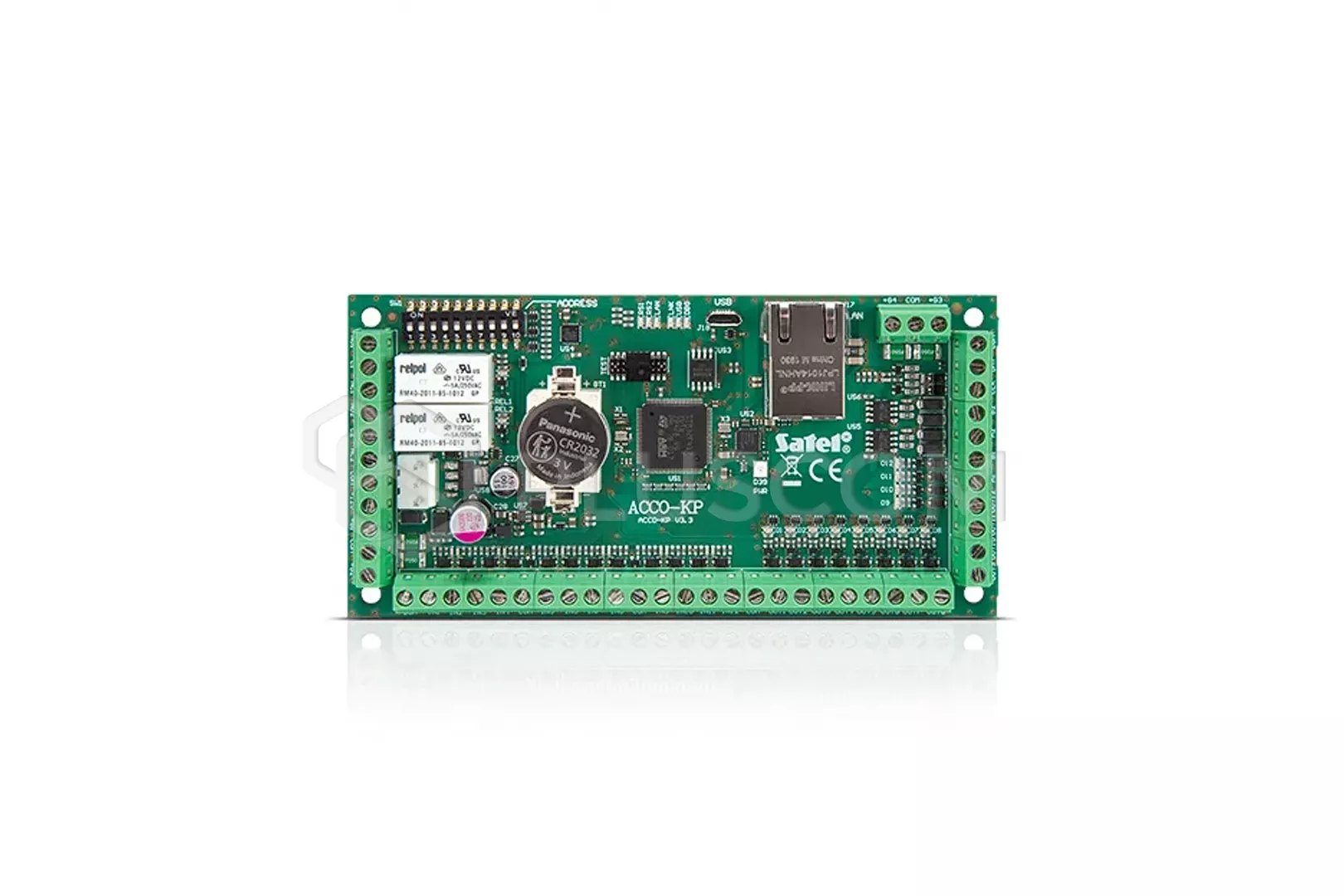

On the motherboard are:

• USB Micro-B port to enable firmware update
• Clock with battery backup
• LEDs to indicate:
• • the status of communication between module and computer
  • the power supply status
  • the receipt of identifier information
  • the relay status
  • the status of outputs
• Connector for SATEL power supply unit
