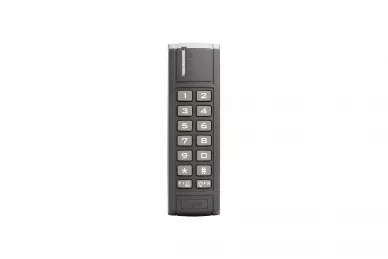

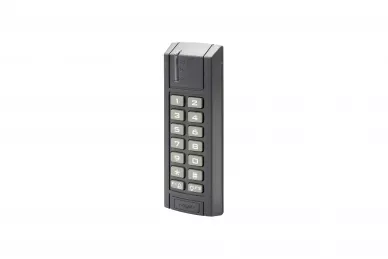

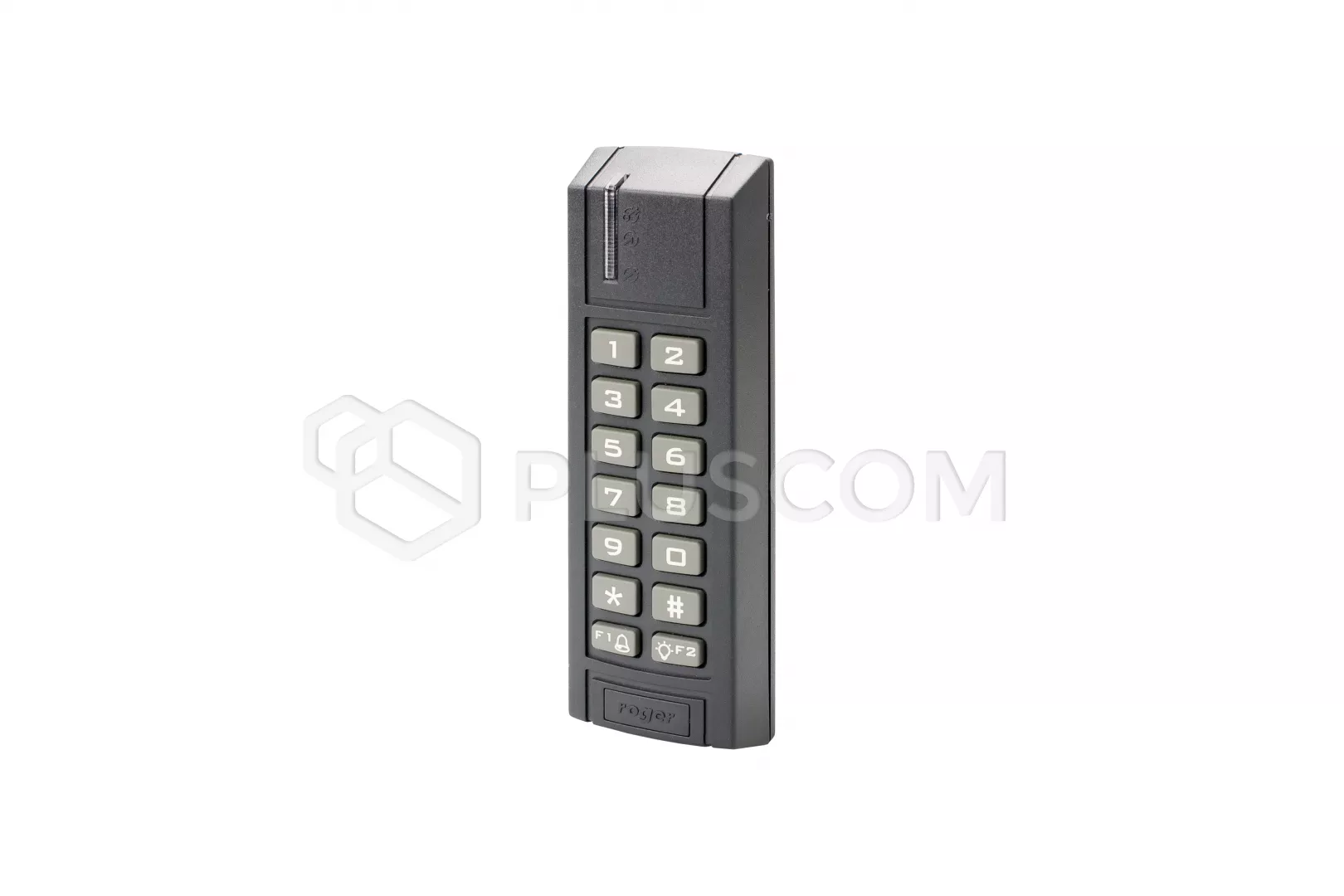

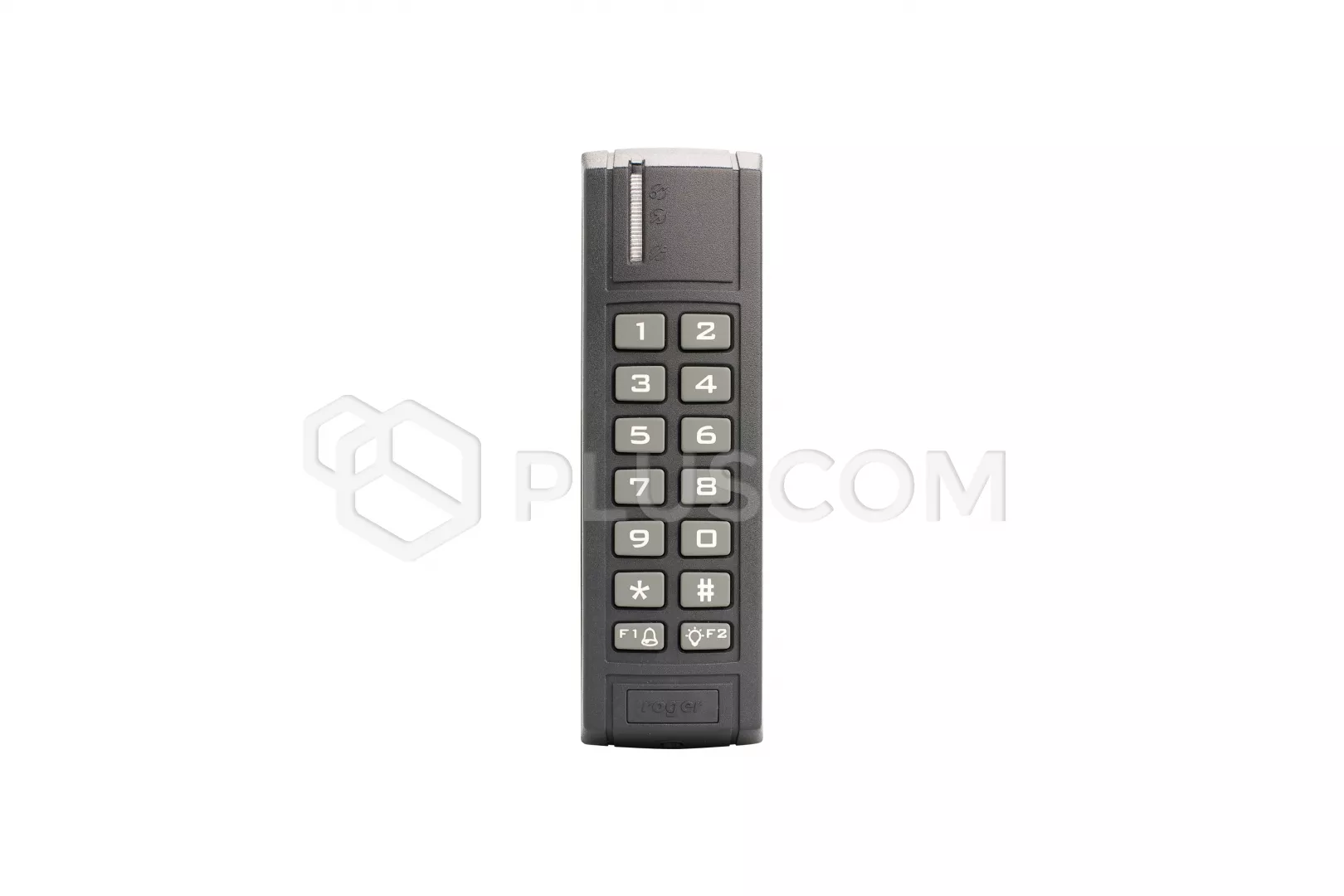

Roger PR312EM Outdoor access controller

Roger PR312EM Outdoor access controller with built-in EM 125 kHz proximity reader and keypad

PR312EM access controllers may operate as standalone access control units or in integrated access control system with CPR network controllers. In standalone mode PR312EM autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real-time clock. Access control system based on PR312EM controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN.

FEATURES:

• built-in EM 125 kHz proximity reader
• buzzer
• keypad
• outdoor operation
• 3 programmable inputs/outputs
• 1 relay output 1.5 A/30 V
• tamper
• programmed from PC
• RS485, RACS Clock&Data communication interface
• operation with RFT1000 readers
• up to 4000 users
• up to 32 000 built-in event buffer
• up to 33 000 000 event buffer in network equipped with CPR32-NET
• real time clock with battery backup
• user groups
• access zones
• schedules
• access control in elevators (XM-8 required)
• local APB
• global APB (CPR32 required)
• interlocking
• advanced access options: two users mode, conditional access, high security mode
• operation with turnstiles (XM-2 recommended)
• operation with barriers
• random user inspection
• integration with T&A system (RCP Master)
• integration with intruder alarm system
• integration with CCTV system (CCTV-DVR)

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards:
• • EM 125 kHz (UNIQUE)
  • compliant with EM4100 / 4102
• average current consumption: 70mA
• read range: up to 15cm
• environment class: IV
• IP65
• working temperature: -25 ° C ~ +60 ° C
• weight: approx. 150g
• dimensions: 152.5x46x23mm
