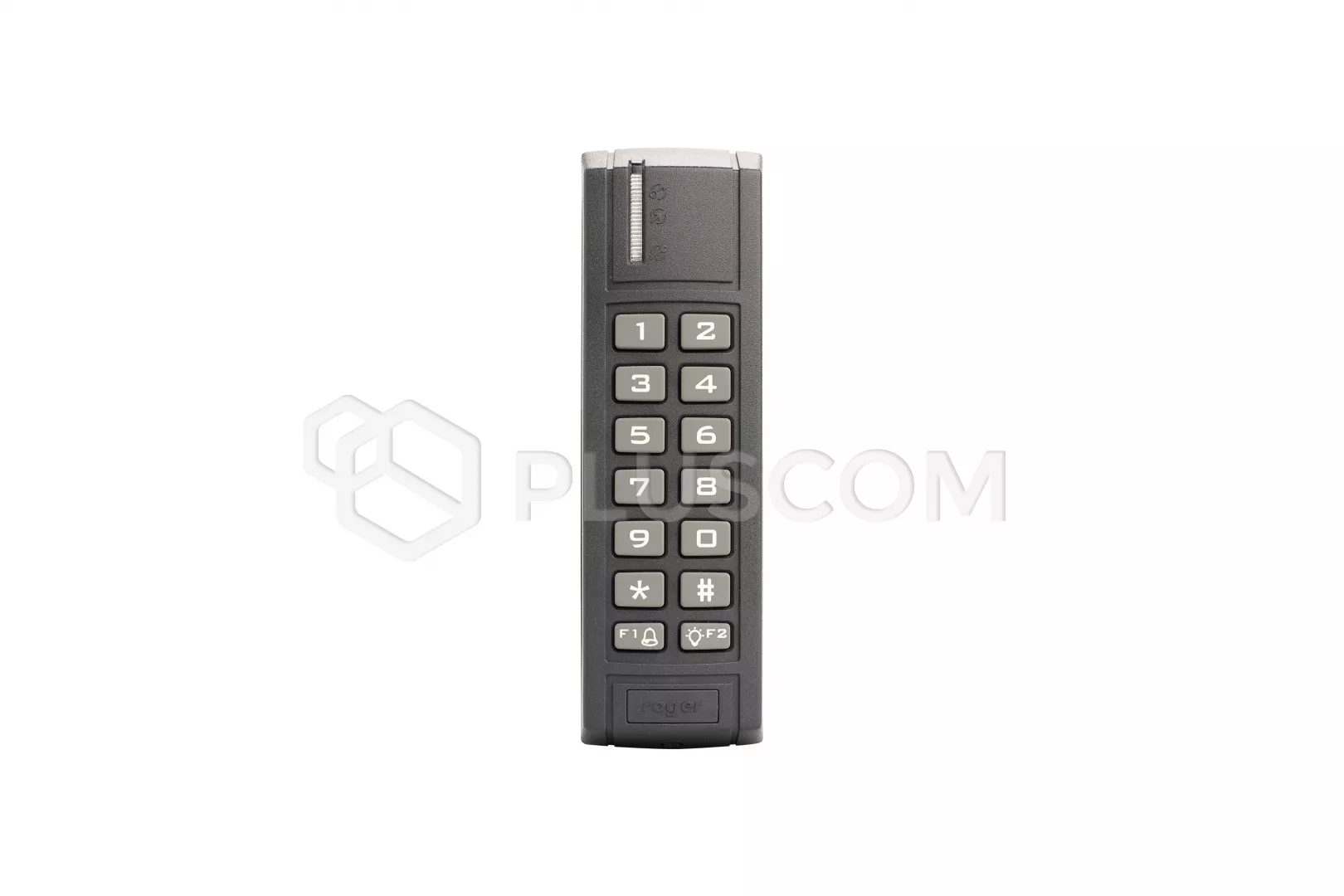

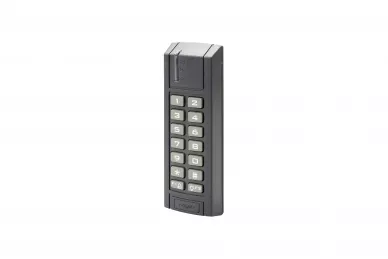

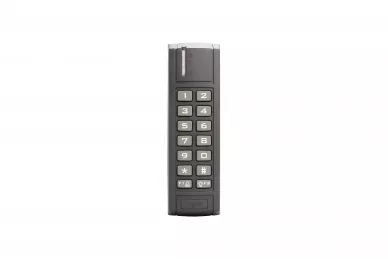

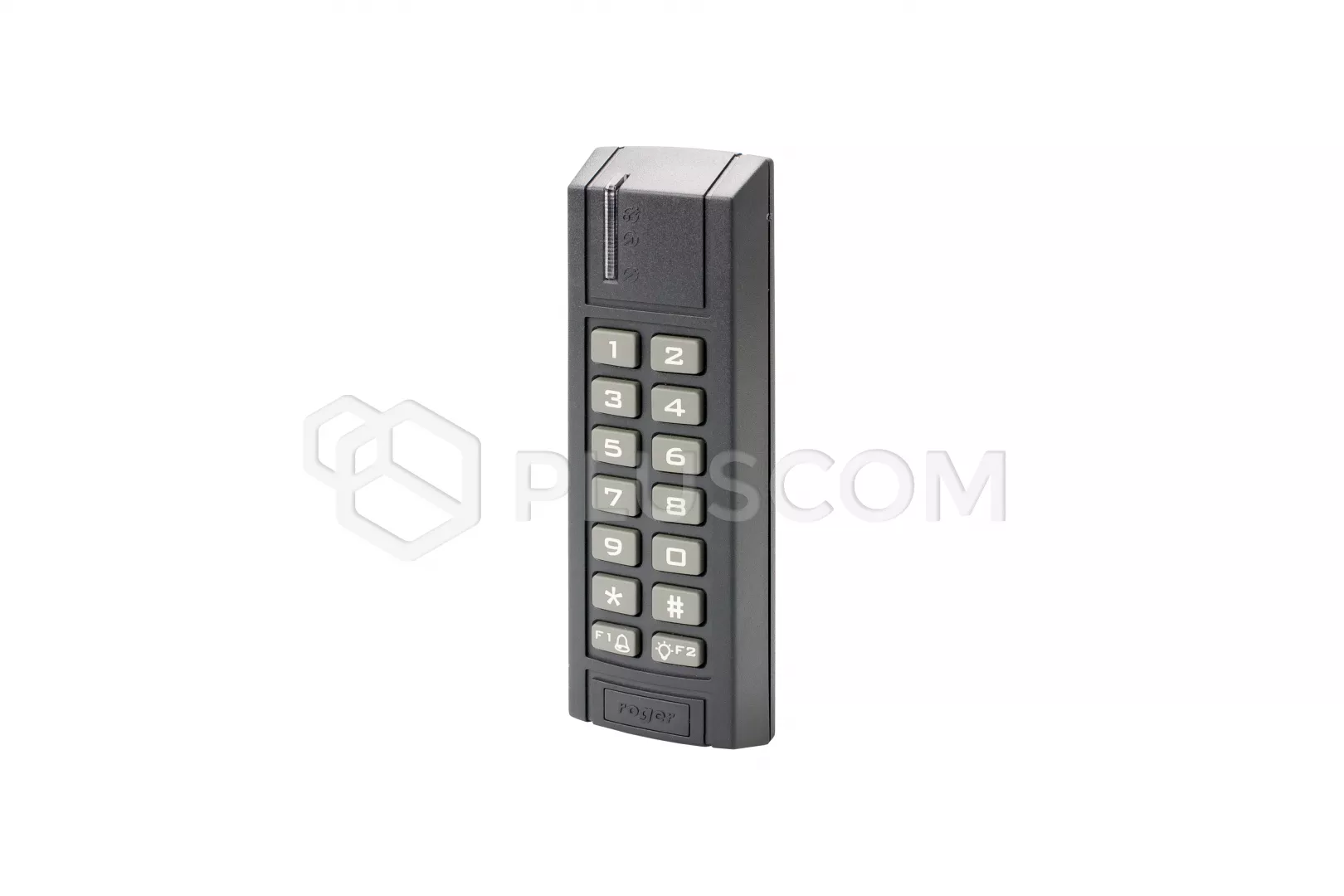

Roger PRT12LT Outdoor proximity reader

Roger PRT12LT EM 125 kHz outdoor proximity reader with keypad

PRT12LT reader can be used as a universal identification point connected to the access controller. PRT12LT readers can operate in many common communication standards (e.g. Wiegand, Magstripe, Clock and Data, RACS), so they can cooperate with majority of controllers from different vendors available on the market.

FEATURES:

• EM 125 KHz proximity cards (EM4100/4102 compatible)
• tamper switch (detection of enclosure opening and detachment)
• outdoor installation
• 26/32/32 reversed/34/42/66 bit Wiegand data formats
• magstripe data format (ABA Track II emulation)
• RACS data output format (Roger format)
• various options for transmission of PIN-s and keys
• LED and BUZZER control inputs

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards: EM 125 KHz proximity cards (EM4100/4102 compatible)
• average current consumption: 65mA
• read range: up to 15cm
• environment class: IV
• IP65
• working temperature: -25 ° C ~ +60 ° C
• weight: approx. 150g
• dimensions: 152.5x46x23mm
