Roger XM-2DR I/O expande

Roger XM-2DR I/O expande

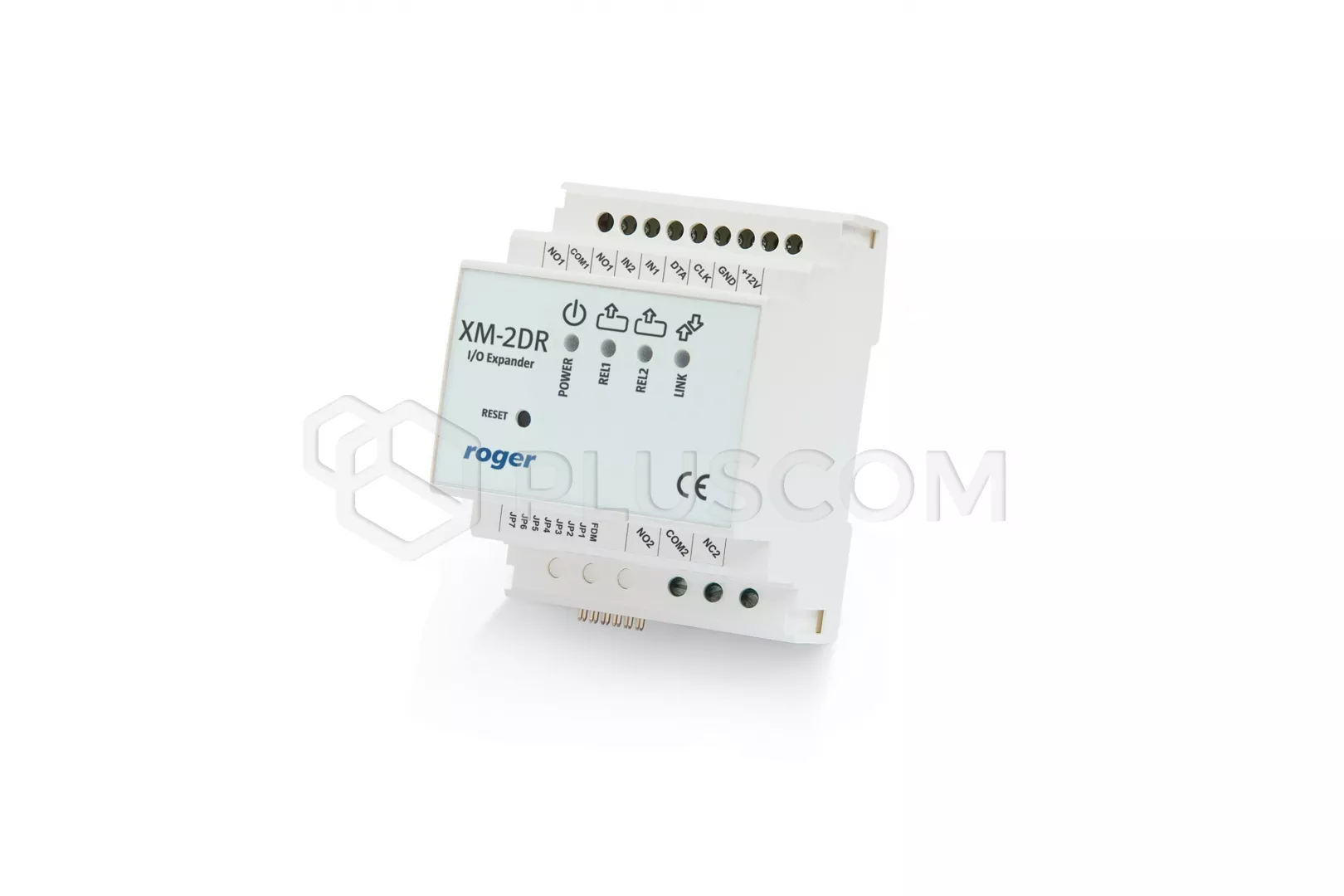

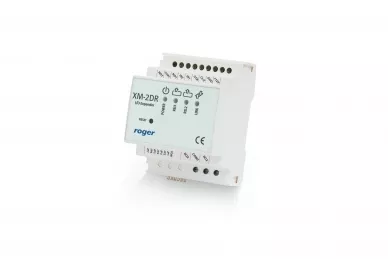

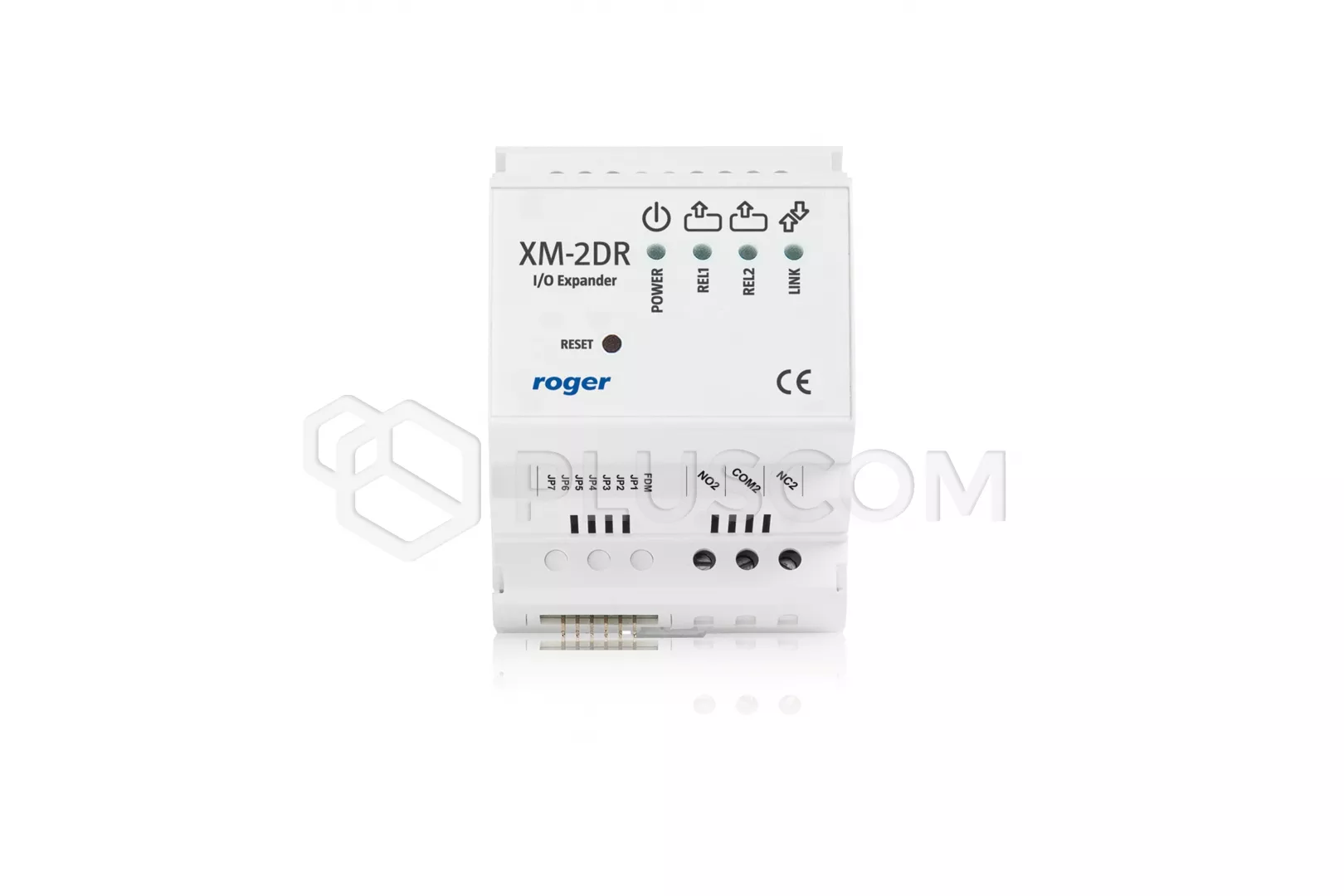

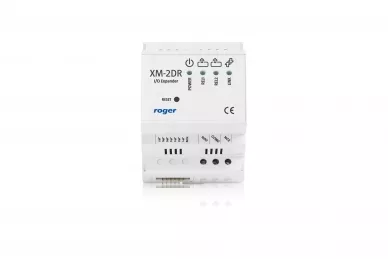

XM-2DR is an I/O expander dedicated to systems using RACS CLK/DTA protocol. Expander offers two NO/NC inputs and two relay outputs with 1.5 A/30 VDC and 5 A/30 VDC max load respectively. Optionally, XM-2DR can be used as a standalone device (without communication with master device), when so, its outputs are controlled by signals applied to its inputs.

Features:

• two NO/NC inputs
• relay output with single NO/NC contact and 1.5 A/30 VDC max load
• relay output with single NO/NC contact and 5 A/30 VDC max load
• version with plastic enclosure dedicated to installation on DIN rail
• communication by means of RACS Clock&Data protocol or standalone operation

TECHNICAL DATA:

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• current consumption:
• • 25 mA (both relays deactivated)
  • 110 mA (both relays activated)
• relay output with single NO/NC contact and 1.5 A/30 VDC max load
• relay output with single NO/NC contact and 5 A/30 VDC max load
• working temperature: -25°C- +60°C
• dimensions: 62x85x73mm
• weight: 110g
