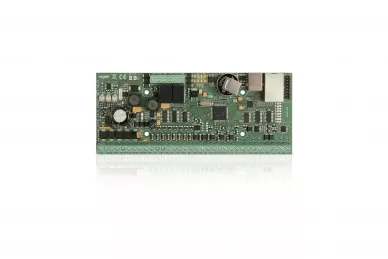

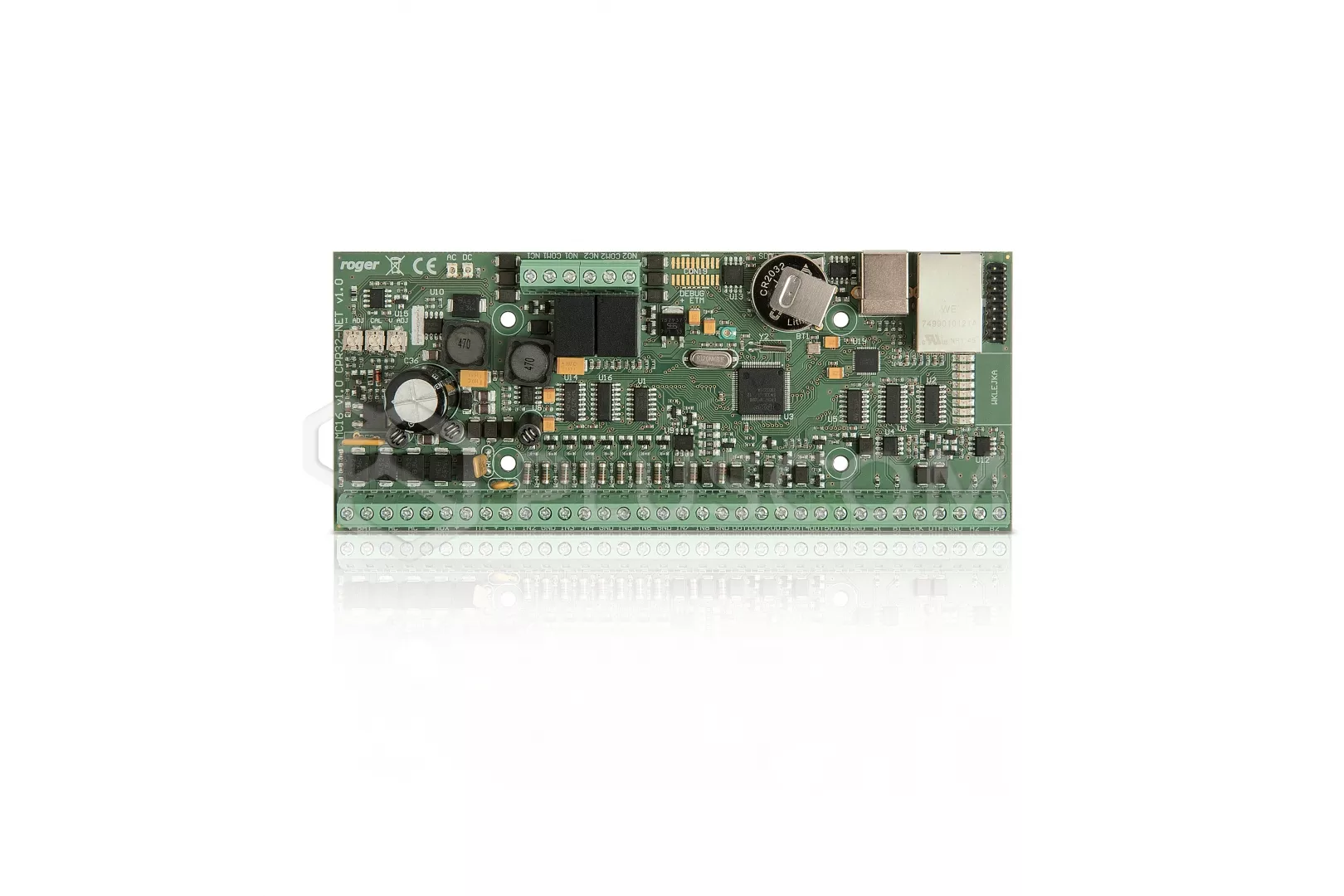

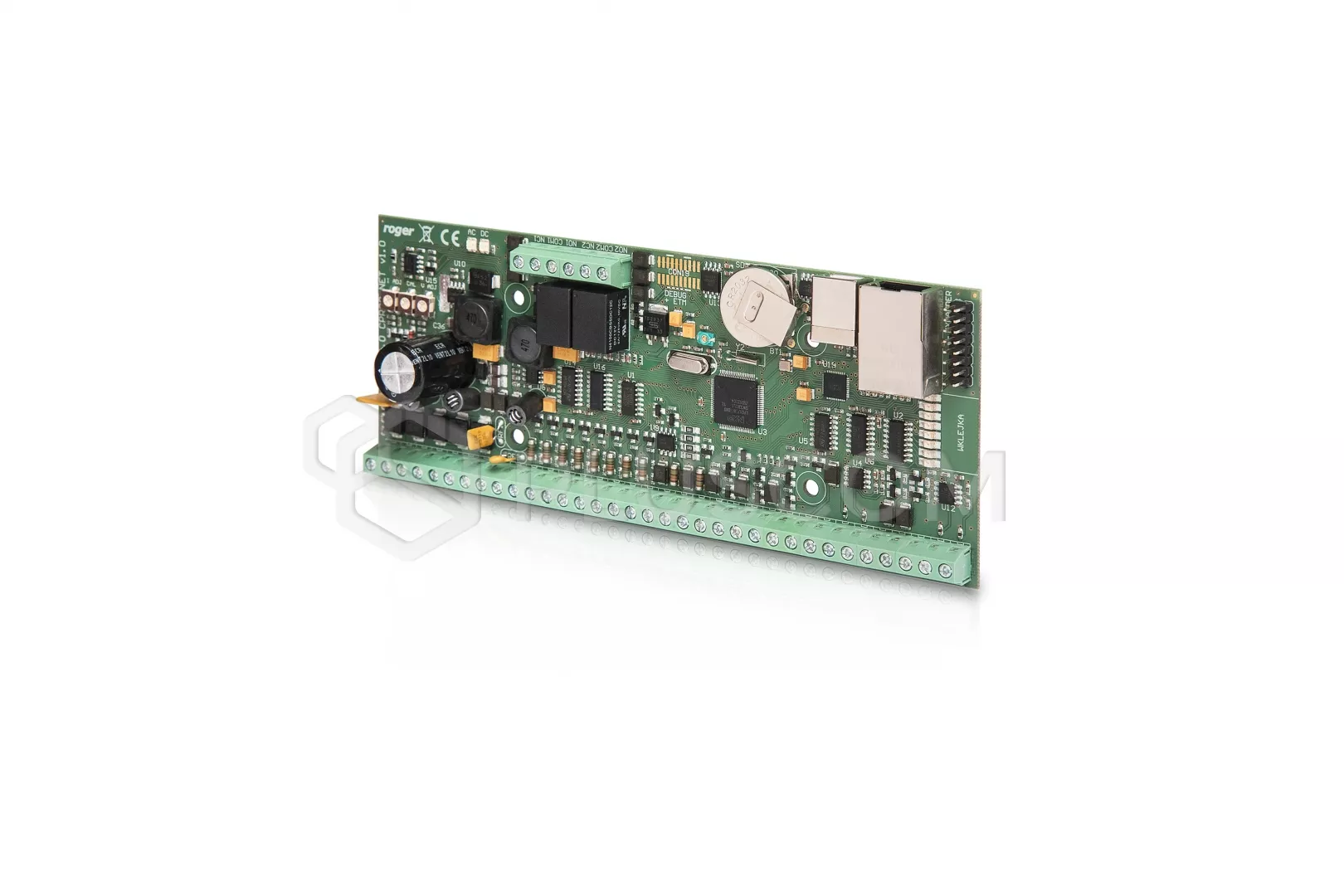

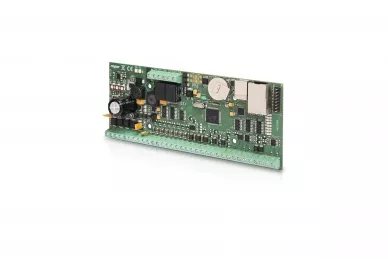

Roger CPR32-NET-BRD RACS 4 system control panel

Roger CPR32-NET-BRD RACS 4 system control panel

CPR32-NET-BRD network controller expands functionality of RACS 4 system and due to the built-in Ethernet interface allows for management of the access control system through LAN or WAN network. The most important features provided by CPR32-NET-BRD are: centralized event buffer, centralized clock and calendar, global anti-passback and connection of controllers in concurrently armed and disarmed alarm zones. Additionally, CPR32-NET-BRD offers software integration with Integra series intruder alarm panels (SATEL) and management of 16 wireless door locks APERIO system from ASSA ABLOY.

Control panel properties:

• operation with up to 32 access controllers of PRxx1 or PRxx2 series
• real time clock with battery back-up
• schedules and calendars
• global functions: Alarm Zones and Anti-passback Zones
• 250 000 built–in event buffer
• up to 33 000 000 event buffer on memory card
• ethernet communication interface
• encrypted communication protocol AES 128 CBC
• integration with INTEGRA (SATEL) alarm panels at alarm zones level
• integration with APERIO (ASSA ABLOY) wireless door locks system
• 8 NO/NC inputs
• 6 transistor outputs 1 A/15 V
• 2 relay outputs 1.5 A/30 V
• programmable inputs/outputs
• signalling of alarm conditions
• RS485 interface (free topology)
• power supply 18VAC, 12VDC or 24VDC
• 1 A/12 VDC and 200 mA/12 VDC supply outputs
• backup battery charging and monitoring
• IP41
