Roger XM-8DR-BRD I/O expander

118,96 EUR including 20.00% VAT
Product code: #22317
Manufacturer: Roger
  • 8 NO/NC inputs
  • 8 relay outputs
  • Dedicated to systems using RACS CLK/DTA protocol
  • Ability to work in an autonomous mode

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger PR302 Indoor access controller Roger PR602LCD-DT-O Outdoor access controller Roger PR602LCD-DT-I Indoor access controller Roger PR402DR Indoor access controller Roger PR312MF-BK Outdoor access controller Roger PR312MF Outdoor access controller Roger PR312EM Outdoor access controller Roger PR312EM-BK Outdoor access controller Roger PR102DR Indoor access controller Roger ME-1 Metal enclosure with 40 VA transforme

Roger XM-8DR-BRD I/O expander

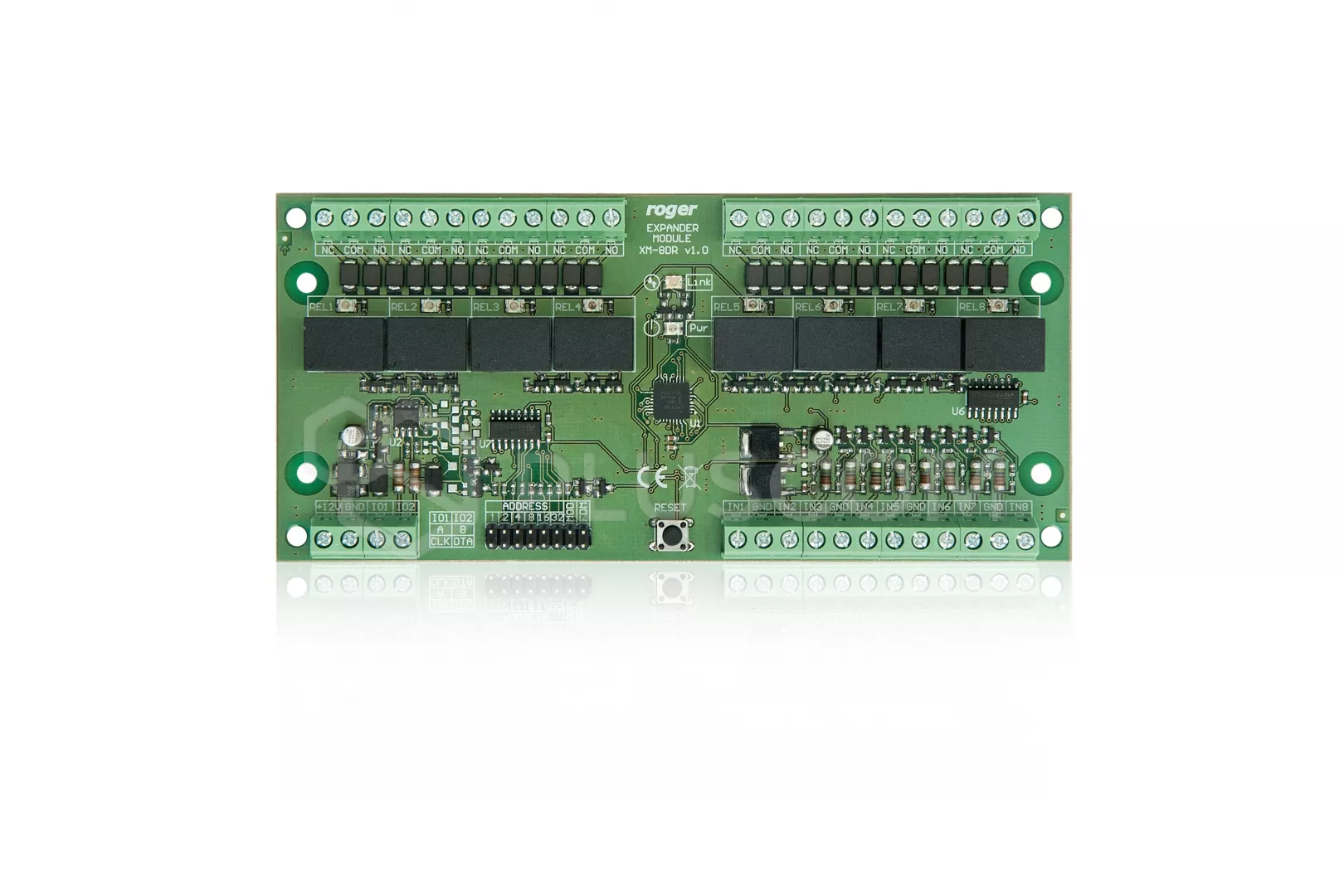

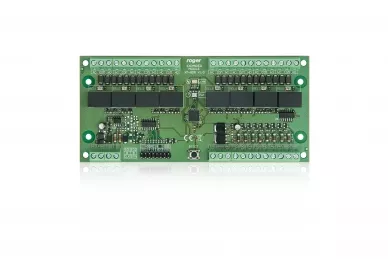

The XM-8DR is I/O expander with 8 NO/NC input lines and 8 relay outputs with single NO/NC contact each. The module is addressable and it is dedicated to devices with RACS Clock&Data interface, namely RACS 4 controllers. Optionally, XM-8DR can be used as standalone device (without communication with master device) and then its outputs are controlled by means of voltage signals at respective inputs. Currently the expander is available only as electronic module without enclosure and it is designated as XM-8DRBRD. With expander there are included adapters, which can be used for XM-8DR-BRD installation on DIN 35 mm rail.


Roger XM-8DR-BRD I/O expander

Roger XM-8DR-BRD I/O expander


TECHNICAL DATA:
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • current consumption: 25mA plus 40mA per each activated relay
  • relay max load: 30VDC/1.5A
  • environmental class: IV
  • working temperature: -25°C- +60°C
  • dimensions: 72x155mm
  • weight: 115g
