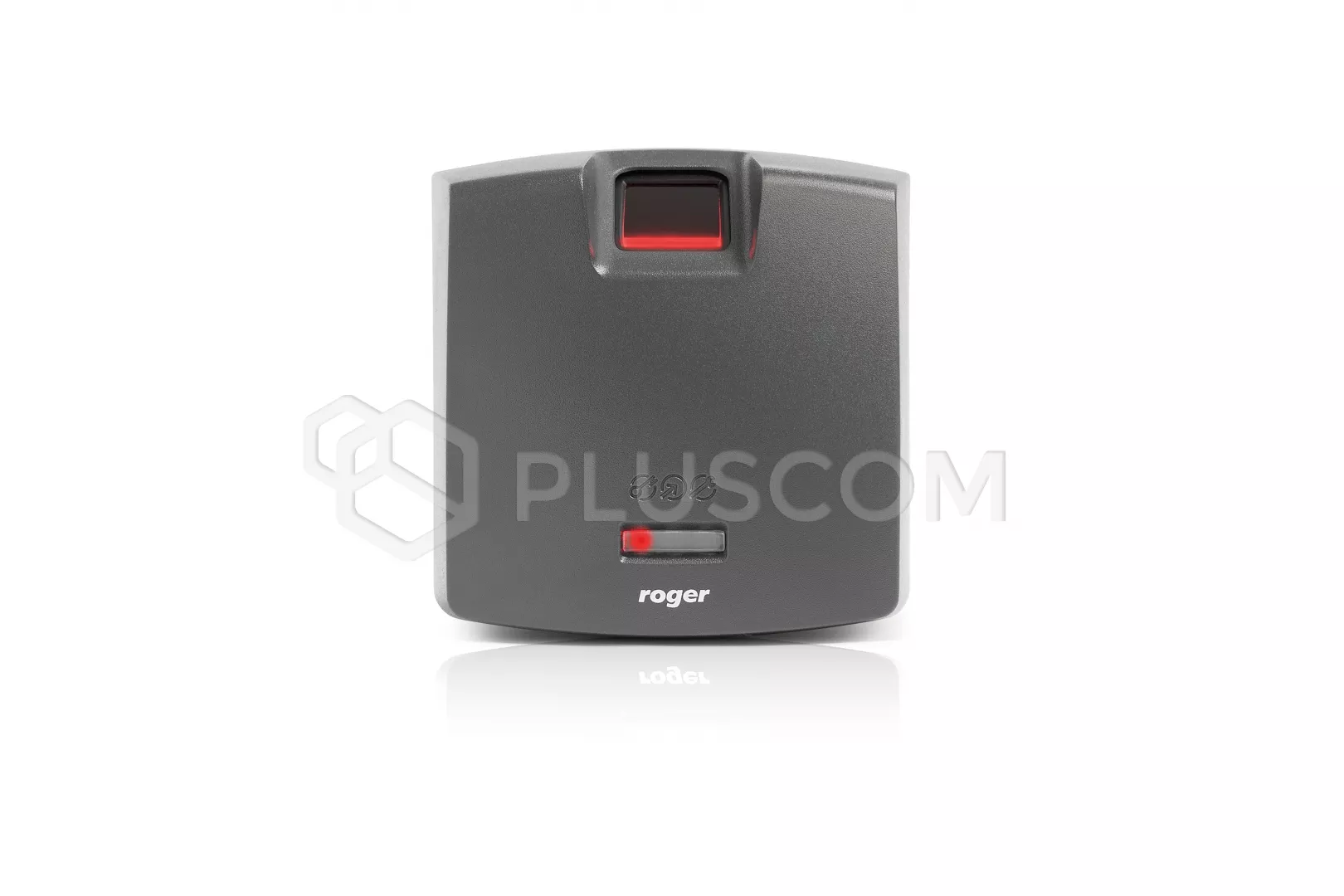

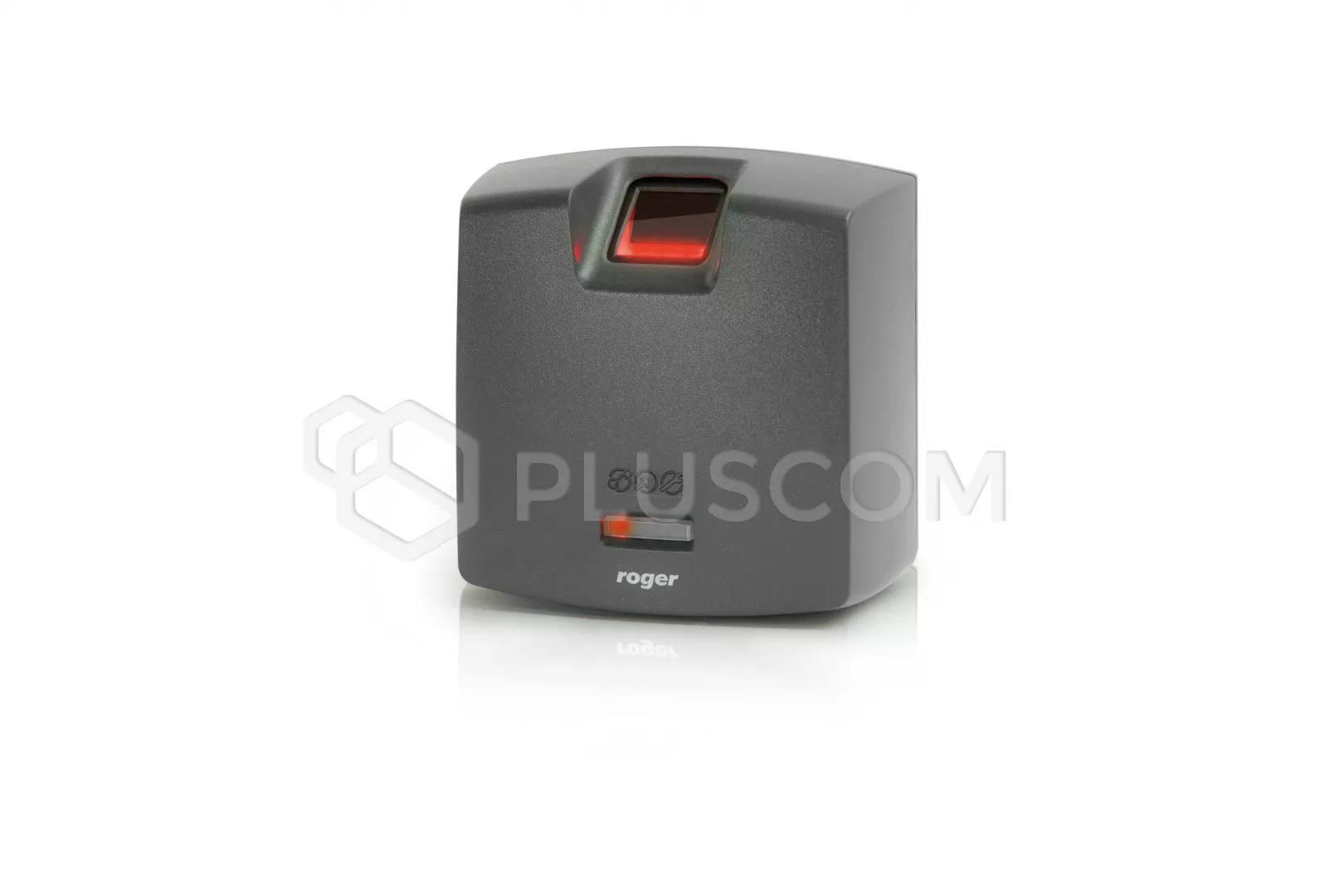

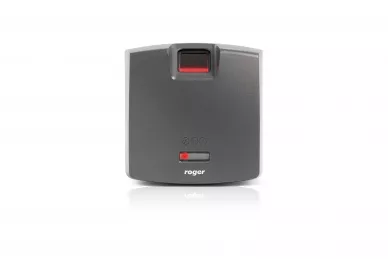

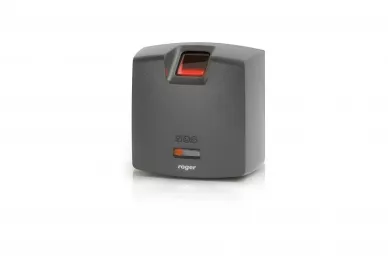

Roger RFT1000 Fingerprint reader

Roger RFT1000 Fingerprint reader with built-in MIFARE proximity reader

RFT1000 reader operates as terminal for master device (controller) and is equipped with fingerprint scanner and MIFARE proximity card reader. RFT1000 reader can be configured by means of RogerVDM software through Ethernet port or RS485 port and the communication is encrypted with AES128 CBC standard. Whereas the communication between RFT1000 reader and master device (controller) is performed by means of Wiegand interface. The reader can store up to 1900 fingerprint templates. User can be identified by comparison of his fingerprints with fingerprint templates recorded in reader’s memory (1:N mode) or by comparison of his fingerprints with fingerprint templates recorded in MIFARE Classic card memory (1:1 mode).

Features:

• optical fingerprint scanner
• ISO/IEC 14443A MIFARE proximity card reader
• scanned fingerprint is compared with template read from proximity card (1:1 mode)
• scanned fingerprint is compared with template read from internal database (1:N mode)
• 1900 fingerprint templates in 1:N mode
• RACS CLK/DTA, RS485 and Wiegand interfaces
• Windows application for configuration and management of fingerprints (RogerVDM)
• users and fingerprint administration directly from the access system management application (PR Master or VISO)
• communication protocol encrypted by AES128 CBC
• configuration by Ethernet
• average current consumption 130 mA
• tamper

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards: MIFARE Ultralight/Classic
• average current consumption: 130mA
• environment class: I
• IP41
• working temperature: +5 ° C ~ +40 ° C
• weight: approx. 160g
• dimensions: 85x85x52mm
