Roger ME-1 Metal enclosure with 40 VA transforme

65,22 EUR including 22.00% VAT
Product code: #22334
Manufacturer: Roger
  • For RACS 4 and RACS 5 modules and devices
  • Transformer: 40VA
  • Place on the battery 12V/7Ah
  • DIN rail 245 mm
  • Dimensions: 295x285x88mm

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger PR411DR-BRD Electronic module of PR411DR access controller Roger ML-1 Mechanical lock Roger PR402DR-BRD Electronic module of PR411DR access controller Roger PR402DR Indoor access controller Roger PR411DR Indoor access controller Roger CPR32-SE-BRD RACS 4 system control panel Roger CPR32-NET-BRD RACS 4 system control panel

Roger ME-1 Metal enclosure with 40 VA transforme

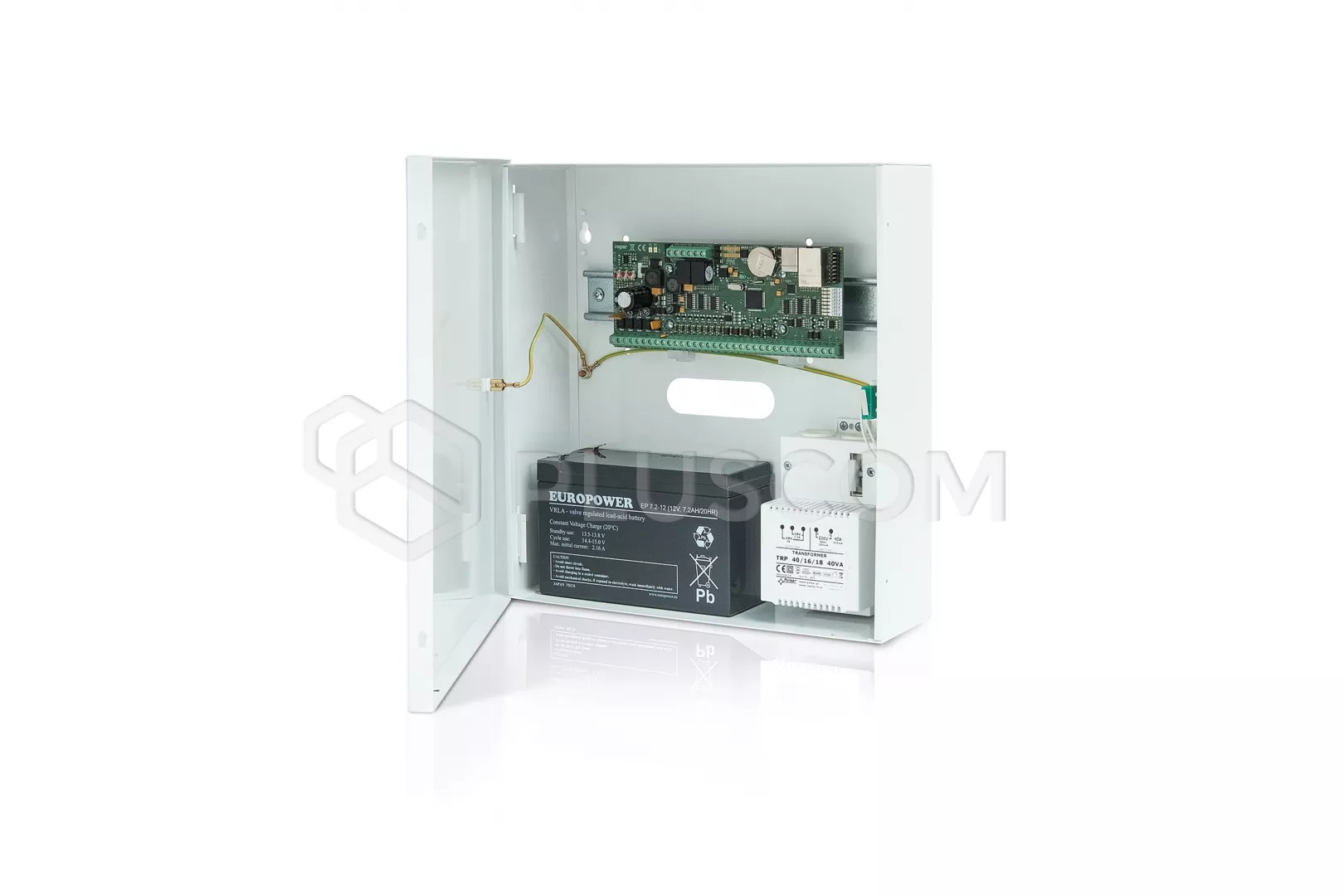

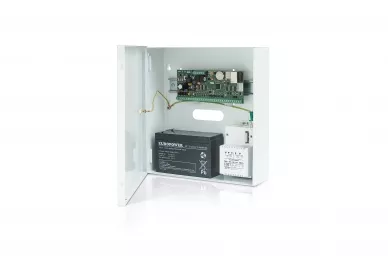

ME-1 metal enclosure is dedicated to installation of RACS 4 and RACS 4 modules and devices. The enclosure is equipped with DIN rail, 18VAC/40VA transformer, tamper and it offers space for 7Ah backup battery. The enclosure front panel is attached with screws. ME-1 is made of white powder coated stainless metal sheet.

Following modules can be installed:
  • CPR32-NET-BRD
  • CPR32-SE-BRD
  • PR402DR
  • PR402DR-BRD
  • PR411DR
  • PR411DR-BRD

Roger ME-1 Metal enclosure with 40 VA transforme

Roger ME-1 Metal enclosure with 40 VA transforme


SPECIFICATIONS:
  • Transformer TRZ 40/16/18
  • Tamper NO/NC; 50mA/50VDC
  • DIN rail 1 x 280mm
  • Metal sheet DC01; 0,7mm; anti-corrosion protection
  • Colour RAL9003
  • Battery Space for 7Ah battery
  • Indoor temperature -10°C to +40°C
  • IP code IP20
  • External dimensions of enclosure 290 x 280 x 80mm (+8mm for installation distance)
  • Weight 3,2kg

Download
Datasheet 0.29 MB
