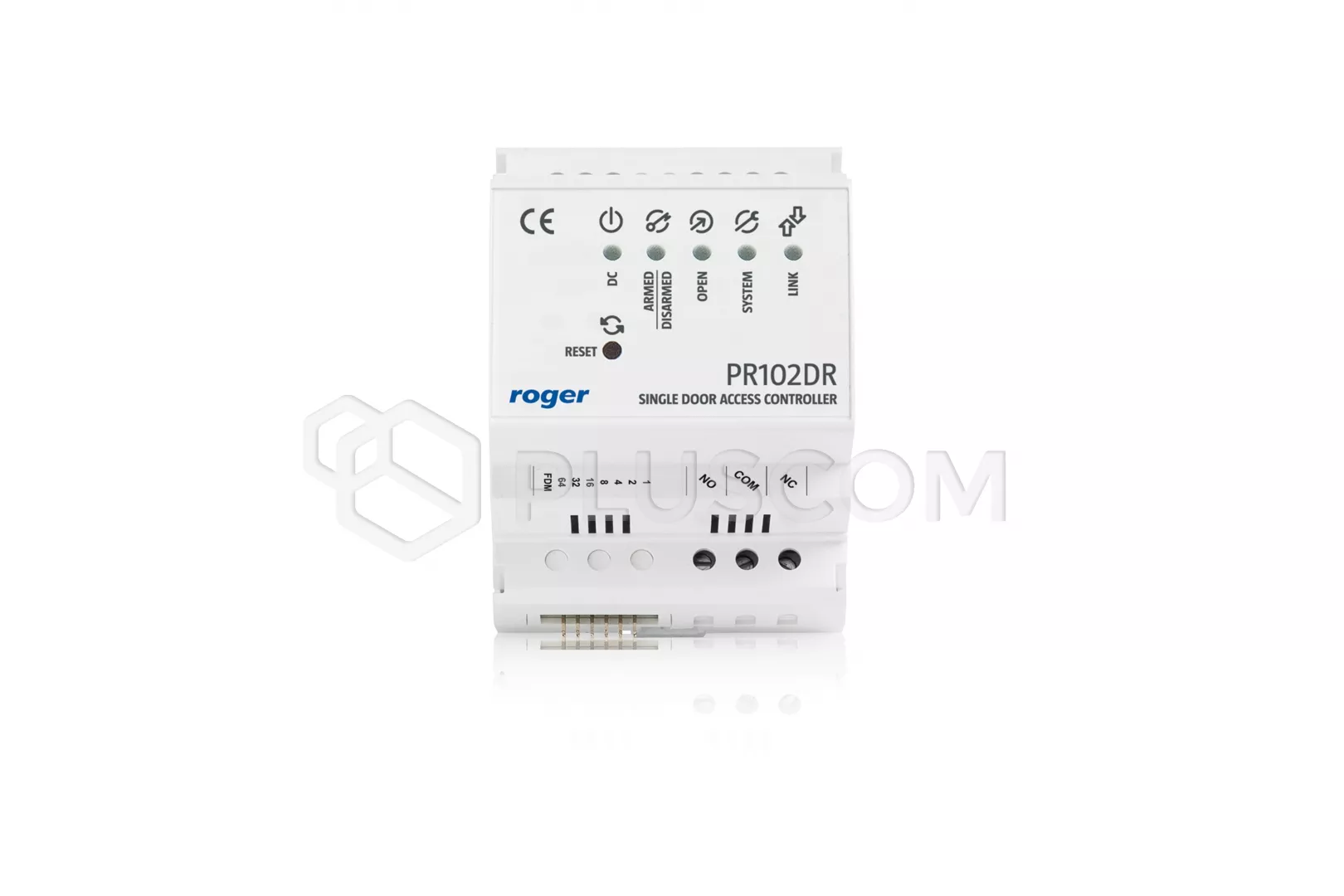

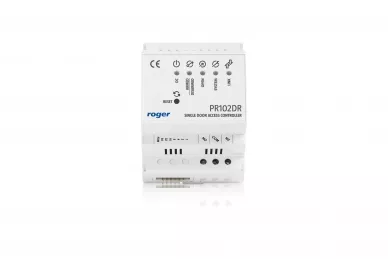

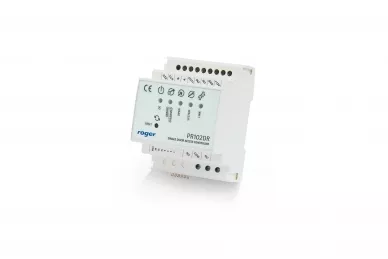

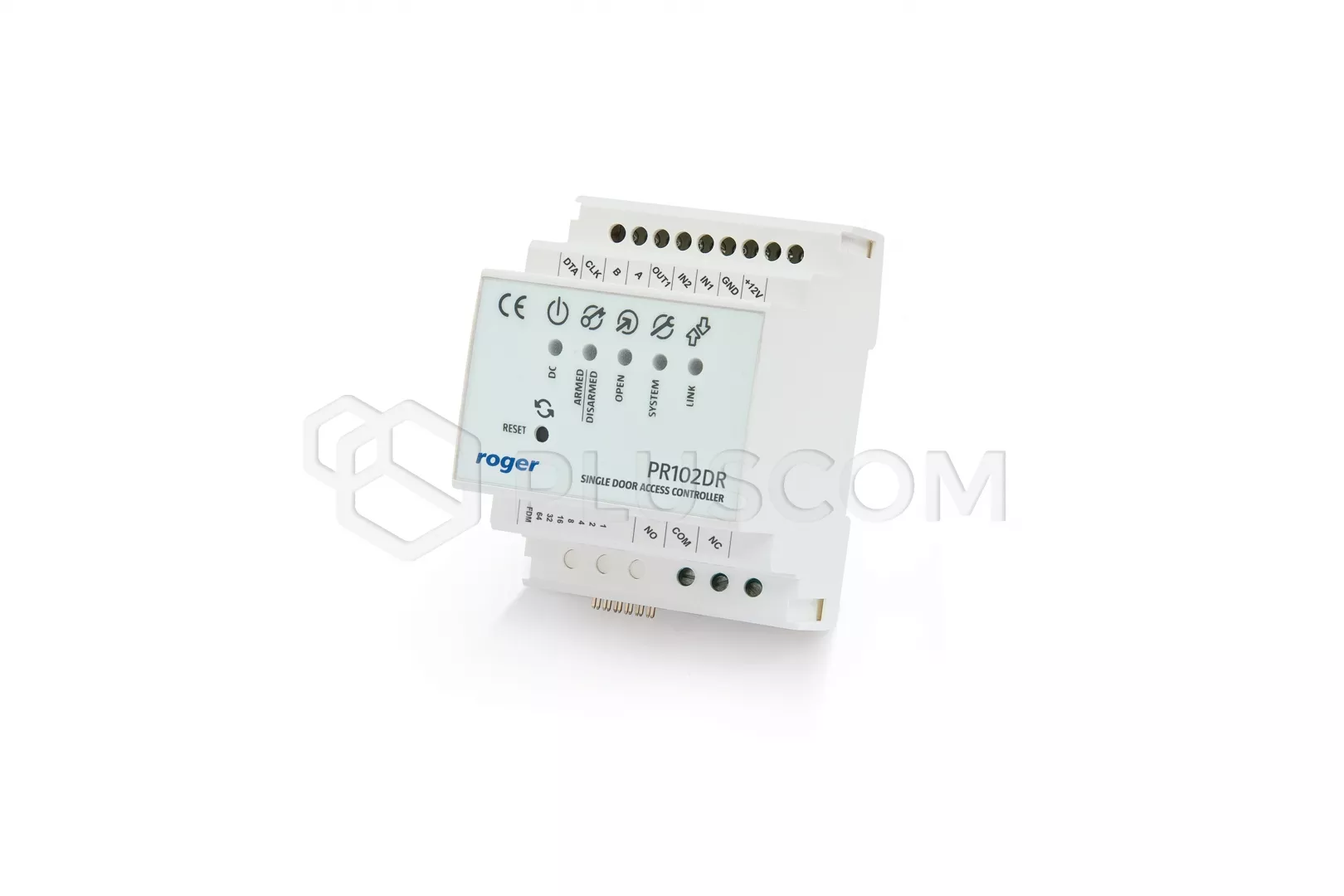

Roger PR102DR Indoor access controller

Roger PR102DR Indoor access controller; DIN rail plastic enclosure

PR102DR access controllers may operate as standalone access control units or in integrated access control system with CPR network controllers. In standalone mode PR102DR autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real time clock. Access control system based on PR102DR controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN. PR102DR is mounted inside plastic enclosure dedicated to installation on DIN rail.

FEATURES:

• mountable directly on a DIN rail
• 2 programmable inputs/outputs
• 1 relay output 1.5 A/30 V
• programmed from PC
• RS485, RACS Clock&Data communication interface
• operation with RFT1000 readers
• up to 4000 users
• up to 32 000 built-in event buffer
• up to 33 000 000 event buffer in network equipped with CPR32-NET
• real time clock with battery backup
• user groups
• access zones
• schedules
• access control in elevators (XM-8 required)
• local APB
• global APB (CPR32 required)
• interlocking
• advanced access options: two users mode, conditional access, high security mode
• operation with barriers
• random user inspection
• integration with T&A system (RCP Master)
• integration with intruder alarm system
• integration with CCTV system (CCTV-DVR)

TECHNICAL PARAMETERS

• 12VDC power
• average current consumption: 40mA
• programmable NO / NC inputs: 2
• programmable relay outputs: 1 x 1.5A / 30V
• programmable transistor outputs: 1
• environment class: I
• working temperature: 5 ° C ~ 40 ° C
• degree of protection: IP20
• weight: approx. 115g
• dimensions: 85.0 x 62.0 x 73.0 mm
