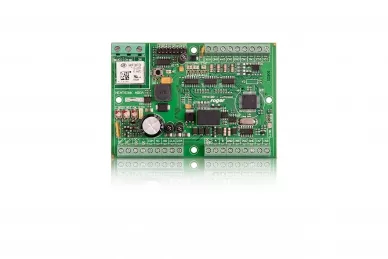

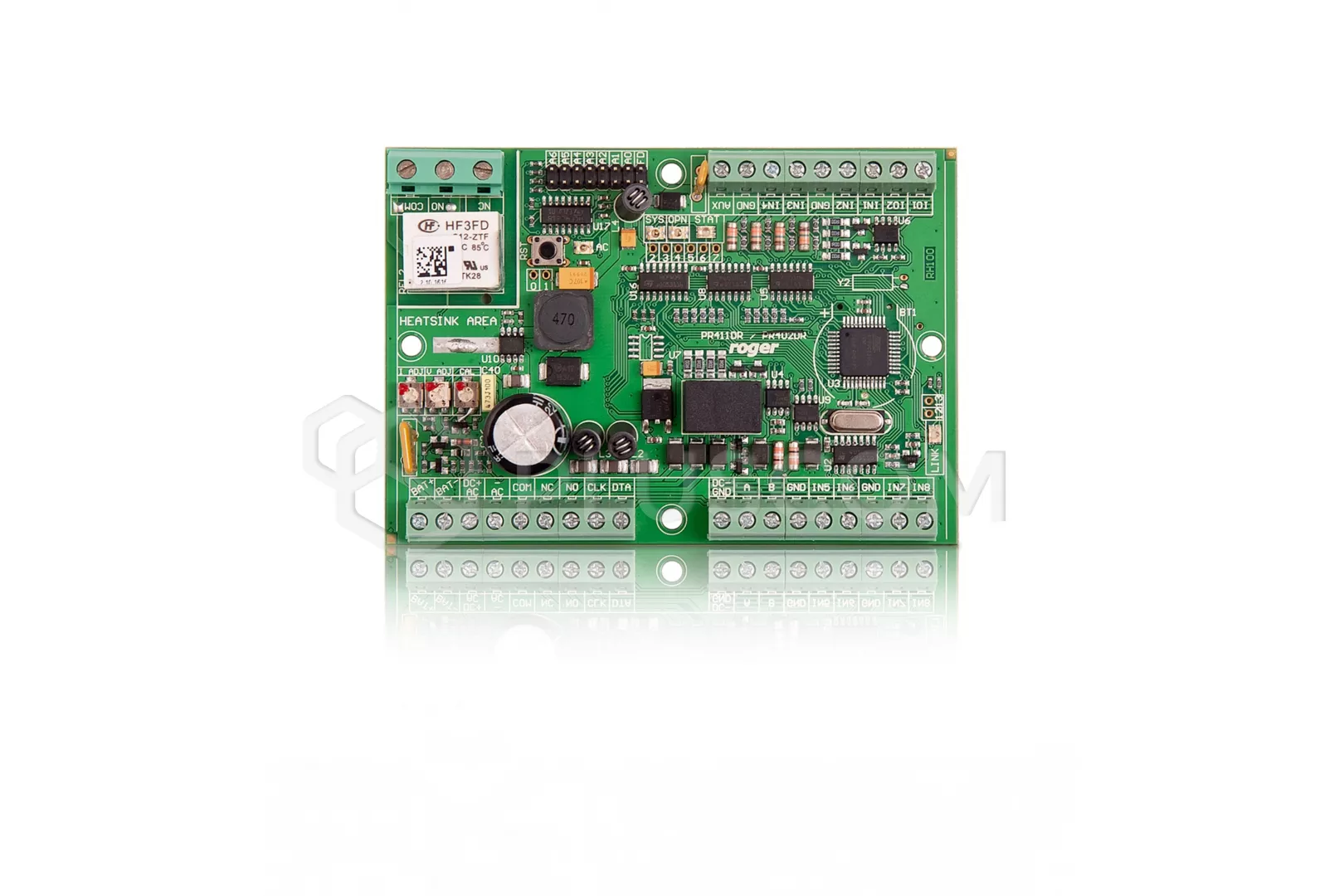

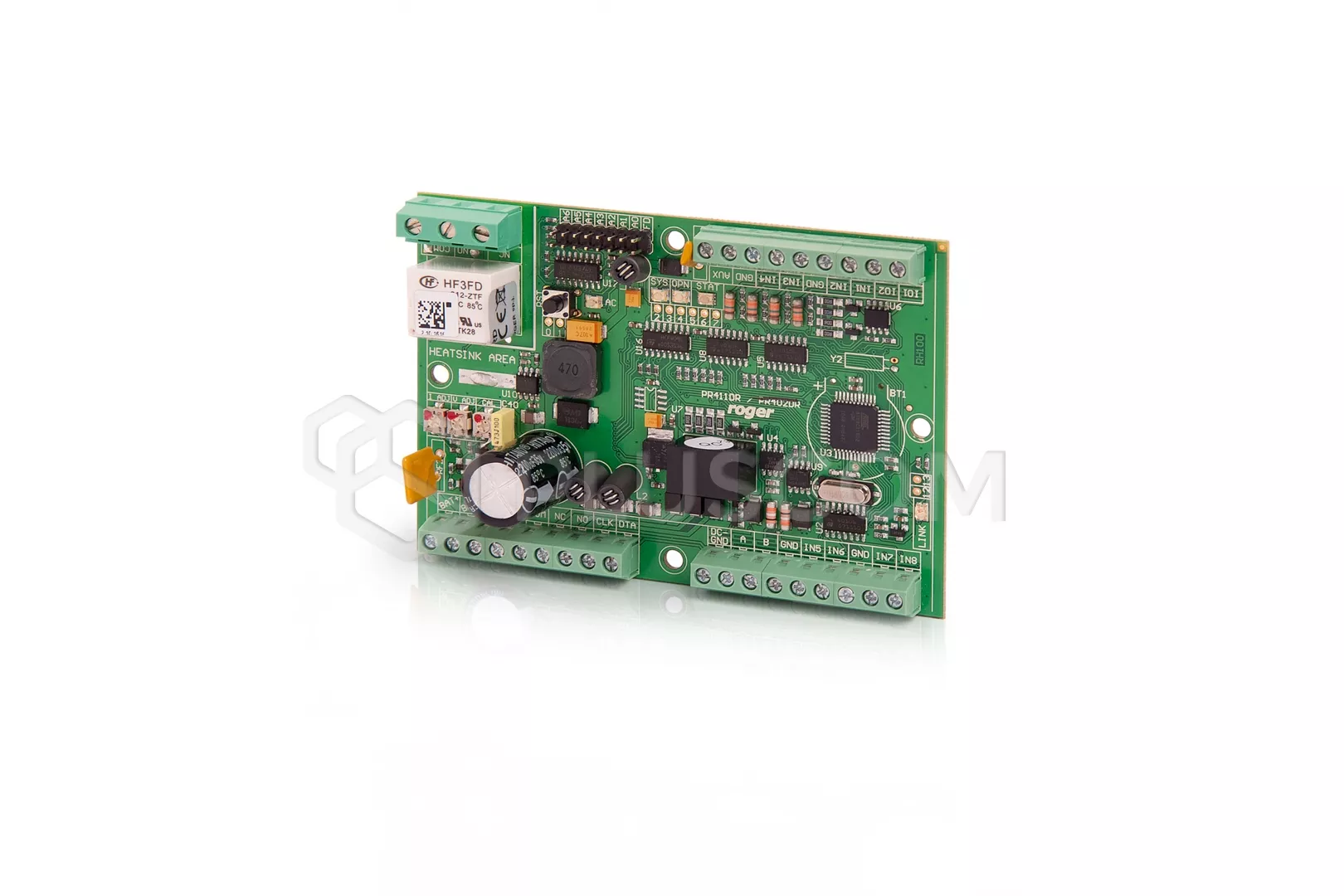

Roger PR411DR-BRD Electronic module of PR411DR access controller

117,82 EUR including 23.00% VAT
Product code: #22454
Manufacturer: Roger
  • 8 programmable NO/NC inputs
  • 2 programmable 1 A transistor outputs
  • Cooperation with RFT1000 and long range readers
  • Built-in 1.2A / 12VDC buffer power supply
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger PR411DR-BRD Electronic module of PR411DR access controller Roger RUD-1 Portable USB-RS485 communication interface Roger ME-1 Metal enclosure with 40 VA transforme Roger XM-2DR-BRD Electronic module of XM-2DR expander Roger UT-4DR RS485-Ethernet interface for RACS 4 Roger UT-2USB USB-RS485 Interface Roger CPR32-NET-BRD RACS 4 system control panel

Roger PR411DR-BRD Electronic module of PR411DR access controller


PR411DR-BRD access controllers are designed as the most popular and low cost access control solutions. They can be used either in standalone or integrated access systems for up to 1000 users. PR411DR-BRD units are equipped with RS485 interface which can be use for both programming and online communication in networked system. Access control system based on PR411DR controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN.

The most important features of the controller are:
  • connection of two PRT series readers and/or two Wiegand 26-66 bit readers
  • built-in 1.5 A buffered supply module
  • eight programmable NO/NC inputs
  • two programmable 1 A transistor outputs
  • one programmable 1.5 A/30 V relay output
  • one programmable 5 A/230 VAC relay output
  • RS485 communication bus
  • free topology of communication bus (star or tree topology allowed)
  • 1000 users
  • up to 8 “guest” type users on each controller in the system
  • 99 time schedules (CPR32-SE required)
  • 250 user groups
  • 250 000 event buffer (CPR32-SE required)
  • local APB
  • global APB (CPR required)
  • alarm Zones (CPR required)
  • operation with XM-2 I/O extension module
  • integration with burglary system through I/Os
  • door operating modes: Normal, Locked, Unlocked, Conditional Unlocked
  • fast programming (15 seconds per each controller in system)
  • quick user editing (up to 3 seconds per each controller in system)
  • integration of multiple access networks in one system (up to 250)
  • multiple networks doesn’t increase system programming time
Roger PR411DR-BRD Electronic module of PR411DR access controller

Roger PR411DR-BRD Electronic module of PR411DR access controller


TECHNICAL PARAMETERS
  • power supply 16.5-22 VAC or 12-15 VDC
  • backup battery: dry gel battery with final charge voltage 13.8V, charging current approx. 300mA
  • power consumption: 100mA
  • programmable NO / NC inputs: 8
  • programmable relay outputs:
    • 1 x 1.5A / 30V
    • 1 x 5A / 30V and 230VAC
  • programmable transistor outputs: 2 x 1A / 15VDC
  • environment class: I
  • working temperature: 5 ° C ~ 40 ° C
  • protection class: IP41
  • weight: approx. 200g
  • dimensions: 124x85x73mm
