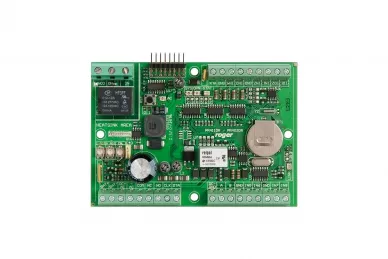

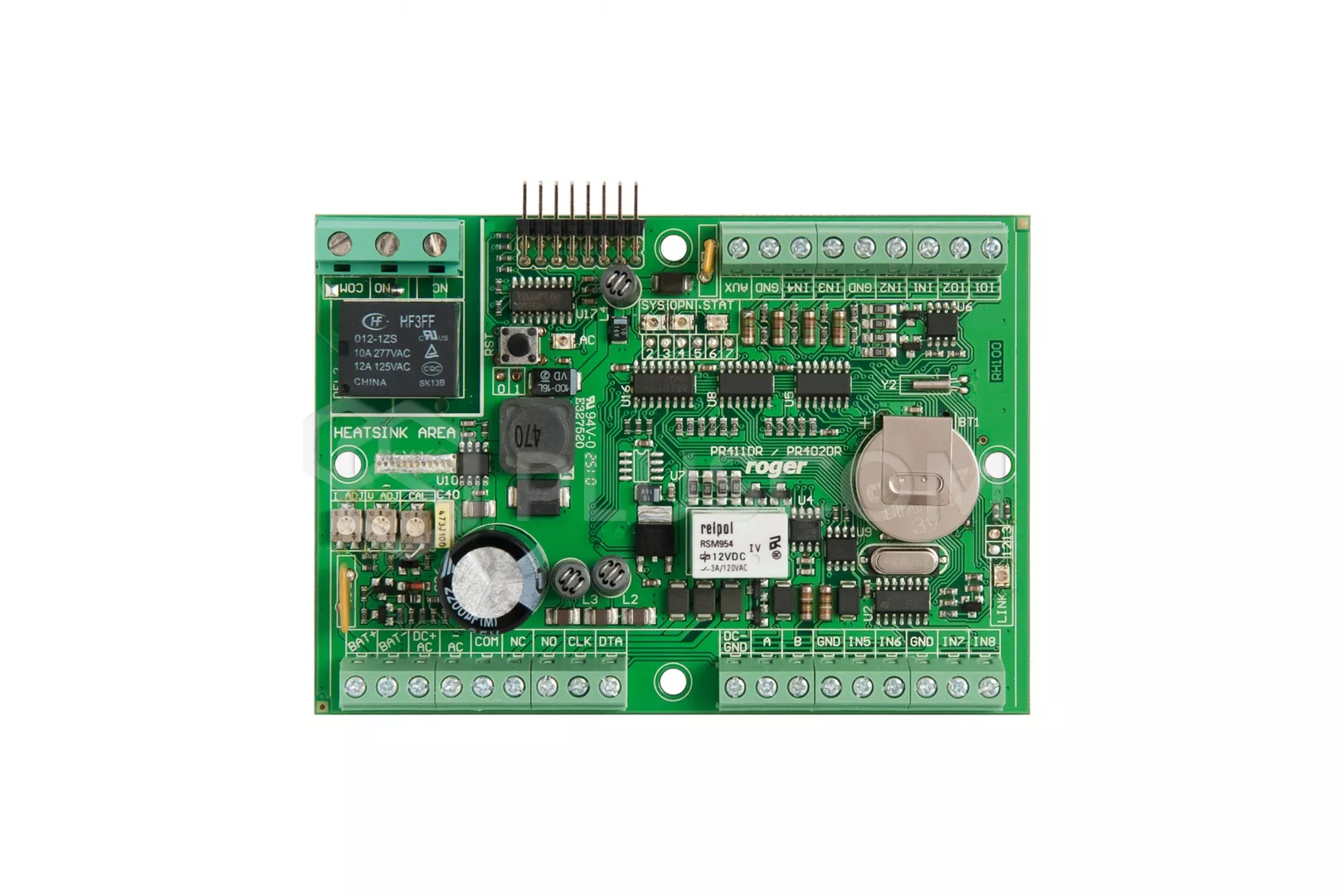

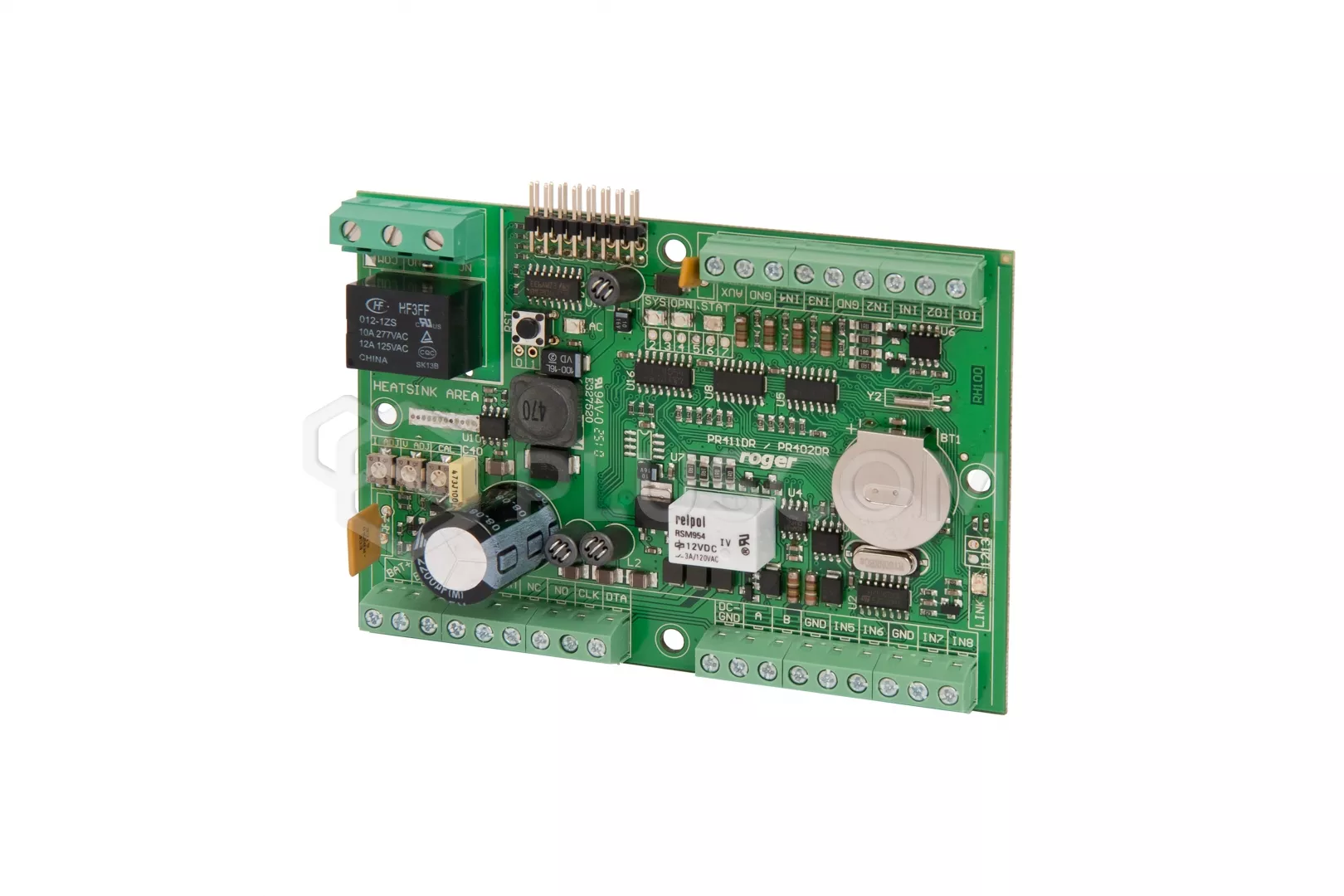

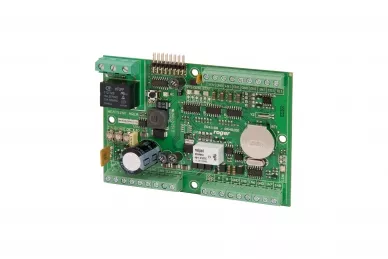

Roger PR402DR-BRD Electronic module of PR411DR access controller

Roger PR402DR-BRD Indoor access controller with DIN rail plastic enclosure

PR402DR-BRD access controllers may operate as standalone access control units or in integrated access control system with CPR32-SE network controller. In standalone mode PR402DR-BRD autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real time clock. Access control system based on PR402DR-BRD controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN. Unit is equipped with power supply module and can operate with one or two readers.

FEATURES:

• 8 programmable inputs
• 4 programmable outputs
• 2 relay outputs 1.5 A/30 V and 5 A/30 V or 230 VAC
• programmed from PC
• RS485, RACS Clock&Data, Wiegand 26..66bit, Magstripe communication interface
• operation with RFT1000 readers
• operation with long range readers
• up to 4000 users
• up to 32 000 built-in event buffer
• up to 33 000 000 event buffer in network equipped with CPR32-NET
• real time clock with battery backup
• user groups
• access zones
• schedules
• access control in elevators (XM-8 required)
• local APB
• global APB (CPR32 required)
• interlocking
• advanced access options: two users mode, conditional access, high security mode
• operation with turnstiles
• operation with barriers
• random user inspection
• integration with T&A system (RCP Master)
• integration with intruder alarm system
• integration with CCTV system (CCTV-DVR)

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC, min./max. range 10-15VDC
  • nominal 18VAC, min./max. range 17-22VAC
  • nominal 24VDC, min./max. range 22-26VDC
• average current consumption: 100mA
• programmable NO / NC inputs: 8
• programmable relay outputs: 12
• programmable transistor outputs: 2
• environment class: I
• IP20
• working temperature: 5 ° C ~ 40 ° C
• weight: approx. 100g
• dimensions: 80x115x28 mm
