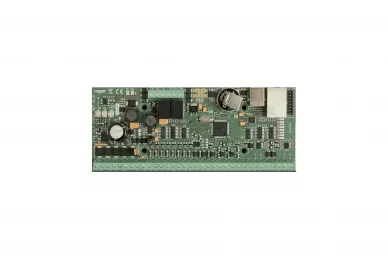

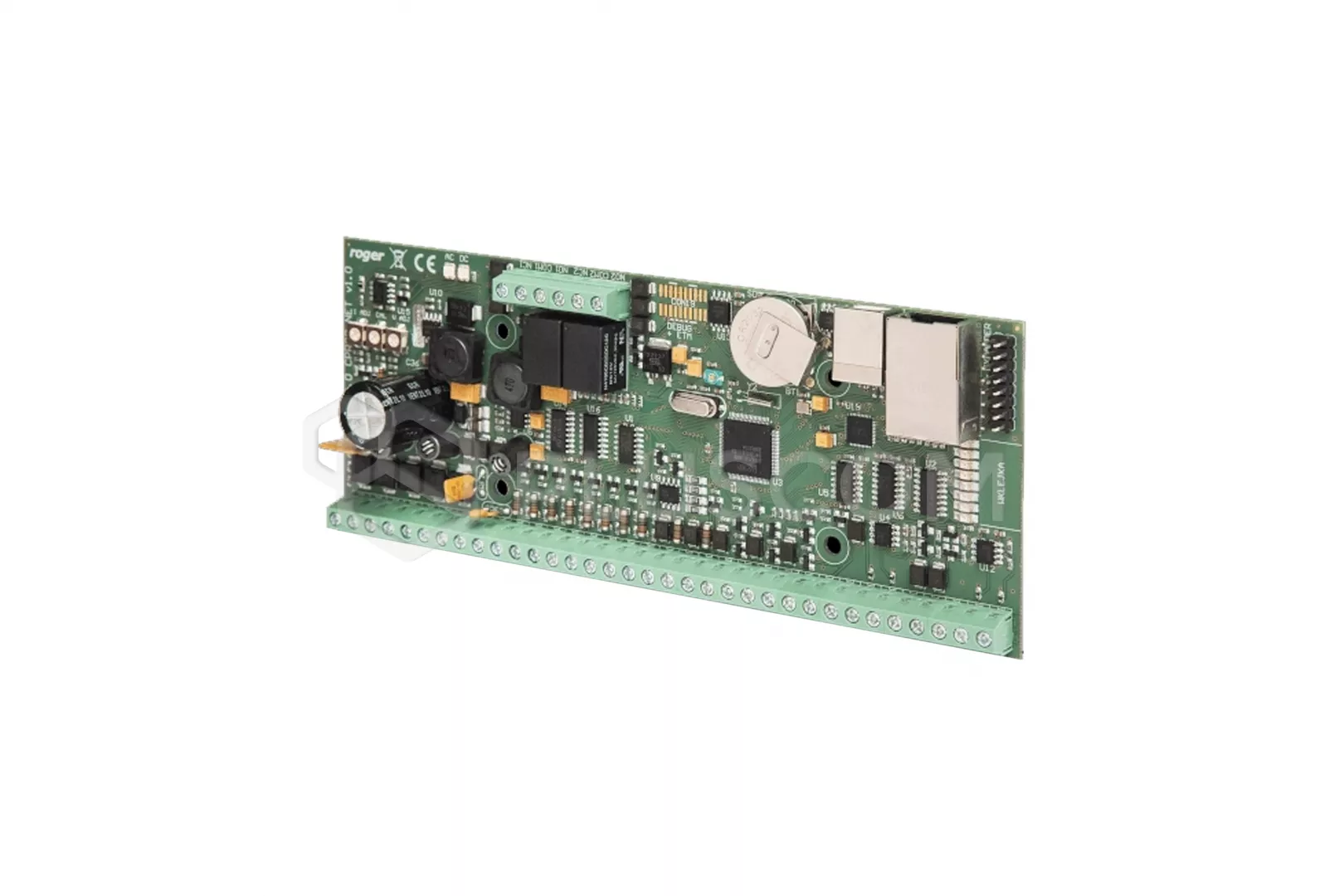

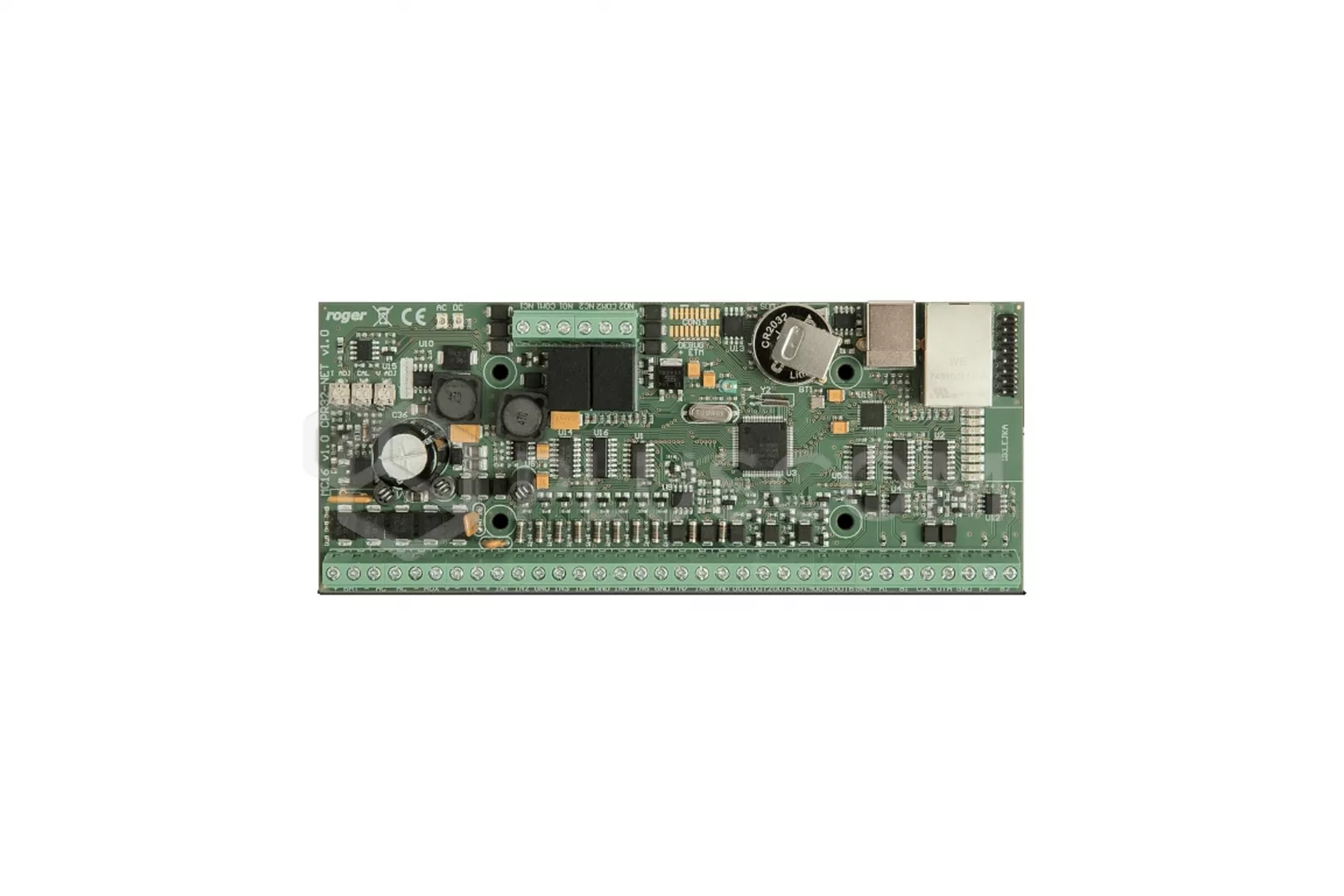

Roger MCX16-UZ-4 Expander to Integrate Clex System Locks

604,05 EUR including 23.00% VAT
Product code: #32990
Manufacturer: Roger
  • Interface for 4 Clex wireless locks
  • 8 parametric inputs
  • 2 relay outputs
  • 12V/1.0A and 12V/0.2A power outputs
  • Charging the battery with a current of 0.3 A
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger ME-43-S Metal enclosure Roger ME-43 Metal enclosure Roger ME-40-24V Metal enclosure Roger ME-40 Metal enclosure Roger MC16-AZC-2 Advanced parking controller Roger MC16-AZC-1 Advanced parking controller Roger ME-17 Metal enclosure Roger MCX4D Door Expander Roger ME-44-S Metal enclosure

Roger MCX16-UZ-4 Expander to Integrate Clex System Locks

The MCX16-UZ I/O expander enables use of Clex (Uhlmann & Zacher) wireless locks as access terminals in RACS 5 system. MCX16-UZ operates as hardware interface for communication of Clex locks with MC16 access controller. The expander communicates with the MC16 controller using RS485-1 bus and with Clex public online system using RS485-2 bus. MCX16-UZ offers its input and output lines for use in RACS 5 system.

FEATURES:
  • interface for 4 Clex (Uhlmann & Zacher) wireless locks
  • 8 inputs NO/NC
  • 6 transistor outputs 12 V/1.0 A
  • 2 relay outputs NO/NC 30 V/1.5 A DC/AC
  • power outputs 13.8 V/1.0 A and 13.8 V/0.2 A
  • 24 VDC, 18 VAC or 12 VDC power supply
  • battery charging with 0.3 A current
  • protection against full battery discharge
  • reporting of power supply status to access controller
  • installation on DIN rail or flat surface
  • module dimensions: 72.0 x 175.0 x 30.0 mm
Download
Datasheet 0.59 MB
CE Declaration 0.11 MB
User manual 0.23 MB
