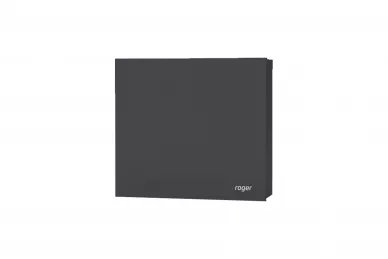

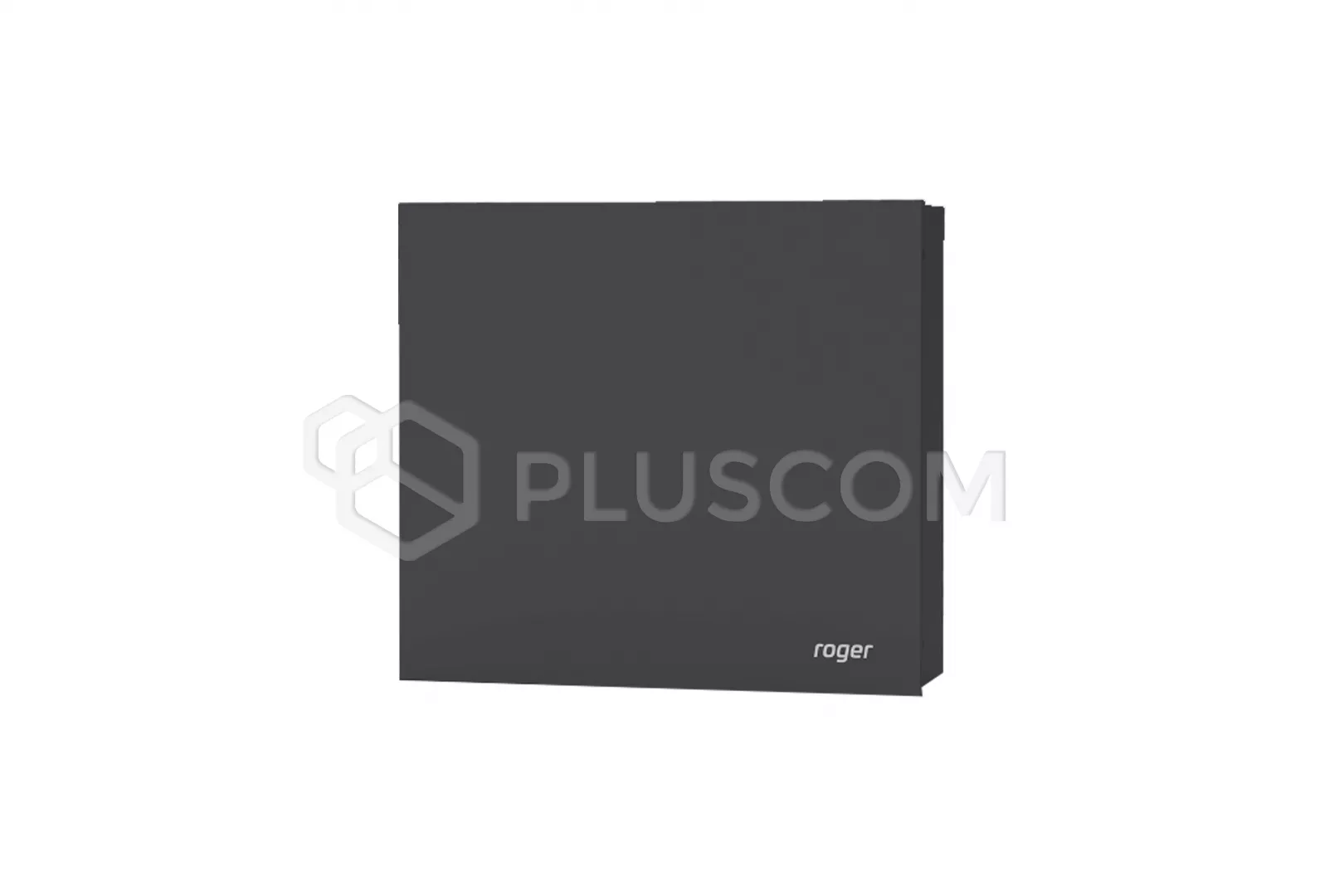

Roger ME-40-24V Metal enclosure

135,55 EUR including 23.00% VAT
Product code: #32994
Manufacturer: Roger
  • For RACS 5 modules and devices
  • Place on the battery 12V/17Ah
  • Built-in 24 VDC/2.2 A power supply
  • DIN rail 396 mm
  • Dimensions: 398 × 358 × 100 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MC16-HRC-3 Hotel access controller module Roger MC16-EVC-8 Conventional Elevator Access Controller Roger MC16-PAC-ST-2 Physical Access Controller Roger MC16-HRC-2 Hotel access controller module Roger MC16-EVC-64 Conventional Elevator Access Controller Roger MC16-PAC-ST-1 Physical Access Controller Roger MCX402-BRD Door Expander Roger MC16-EVC-32 Conventional Elevator Access Controller Roger MC16-PAC-EX-4 Physical Access Controller Roger MCX16-AP-8 I/O Expander with APERIO interface

Roger ME-40-24V Metal housing for RACS 5 system modules and devices

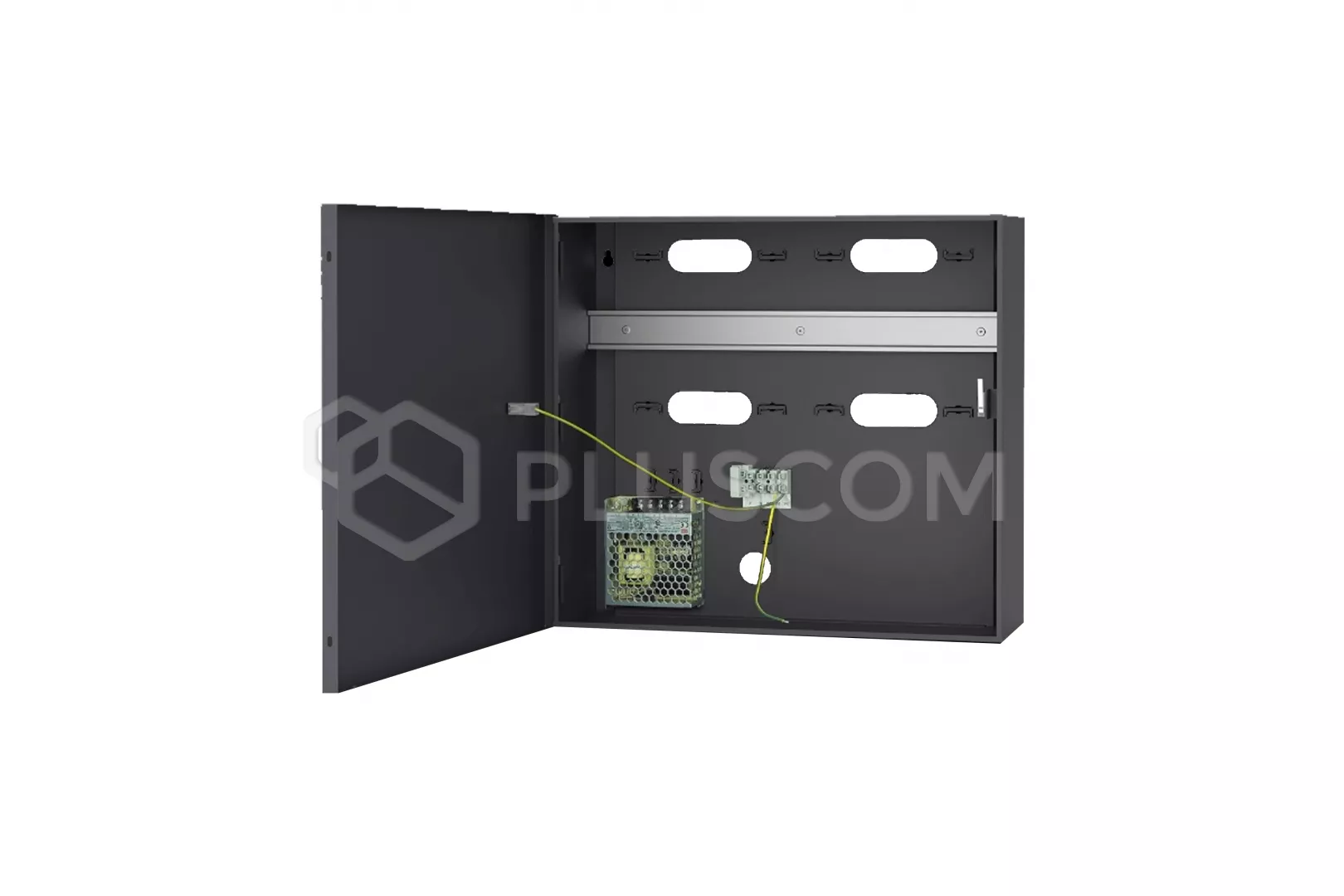

The ME-40-24V enclosure is dedicated to RACS 5 modules and devices which require installation on DIN rail along with a 17Ah battery. The enclosure is equipped with DIN rail, buffered power supply 24V/2.2A, tamper contact and main fuse switch. Access to the internal space of the enclosure is protected by a door fixed by screws. Optionally, the door can be equipped with a key lock. The ME40-24V is made of a metal sheet painted with an anthracite grey powder coating.

TECHNICAL DATES:
  • Nominal output voltage: 24VDC
  • Nominal output current: 2.2A
  • Nominal power: 50W
  • 24 VDC/2.2 A power supply
  • Protection: 5A/250VAC fuse switch
  • Anti-sabotage protection (Tamper): NO/NC switch; 50mA/50VDC
  • DIN rail: 1 × 396 mm
  • Material: DC01 sheet metal; 0.8mm; corrosion protection
  • Color: anthracite gray RAL 7016 Matt
  • Battery space: 17Ah battery
  • Ingress protection rating: IP20
  • Internal dimensions: 398 × 358 × 100 mm
  • External dimensions: 405 x 365 x 121 mm
  • Weight: 3.4 kg
Download
Datasheet 0.18 MB
CE Declaration 0.1 MB
User manual 1.29 MB
