Roger MCI-2 Communication Interface

66,47 EUR including 22.00% VAT
Product code: #25895
Manufacturer: Roger
  • Communication with RACS access control system
  • Converter between the RS485 protocol and the RACS CLK/DTA protocol
  • 3 signaling LEDs
  • IP20
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,33 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger PR302 Indoor access controller Roger MCT62E Proximity Reader Roger PR312EM Outdoor access controller Roger MCT84M Access terminal with keypad Roger RUD-1 Portable USB-RS485 communication interface Roger MCT82M-IO-HR Hotel Room Entry Terminal Roger PR622 Outdoor access controller Roger PR102DR Indoor access controller Roger MCT82M-IO-CH Access terminal with card holder Roger PR612 Outdoor access controller

Roger MCI-2 Communication Interface

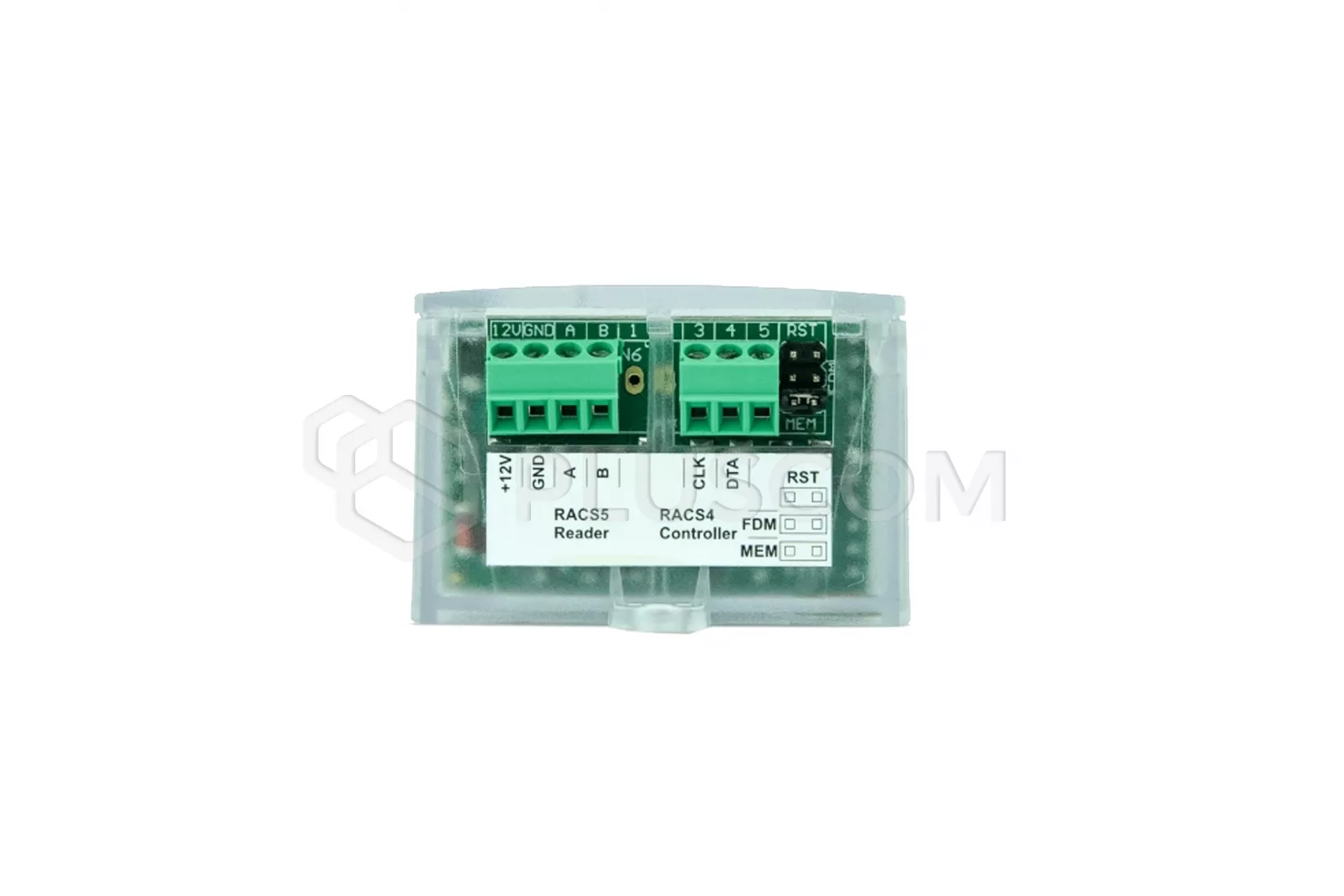

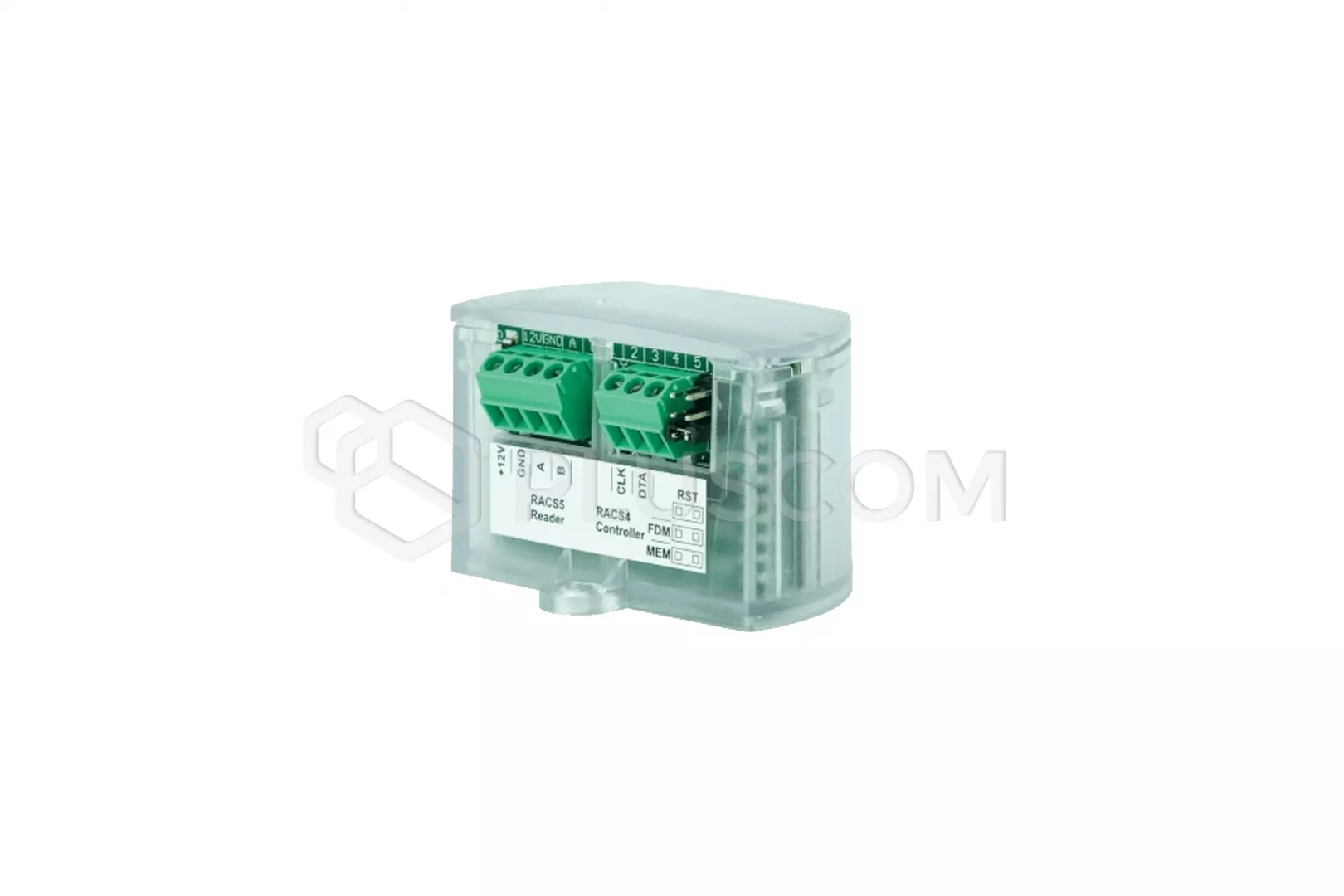

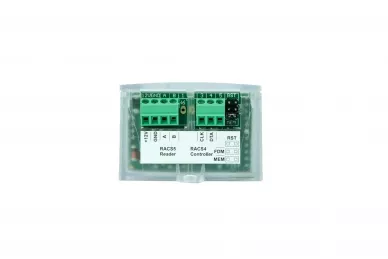

MCI-2 interface is a converter between RS485 (EPSO3) protocol and RACS CLK/DTA protocol. The interface is used to connect MCT series terminal of RACS 5 system to PR series controller of RACS 4 system or HRC series controller of hotel automation system.
Factory new device does not require low level configuration and can be operated with default settings (RACS CLK/DTA address ID0). Low level configuration of the MCI-2 interface with RogerVDM requires RUD-1 interface.

SPECIFICATIONS:
  • power supply from 12 VDC
  • RACS CLK/DTA interface to controller
  • RS485 interface to reader
  • 3 LEDs

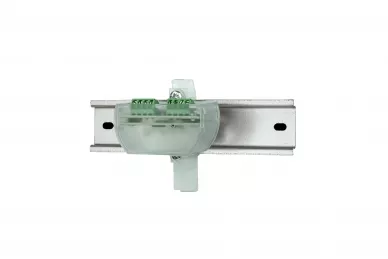

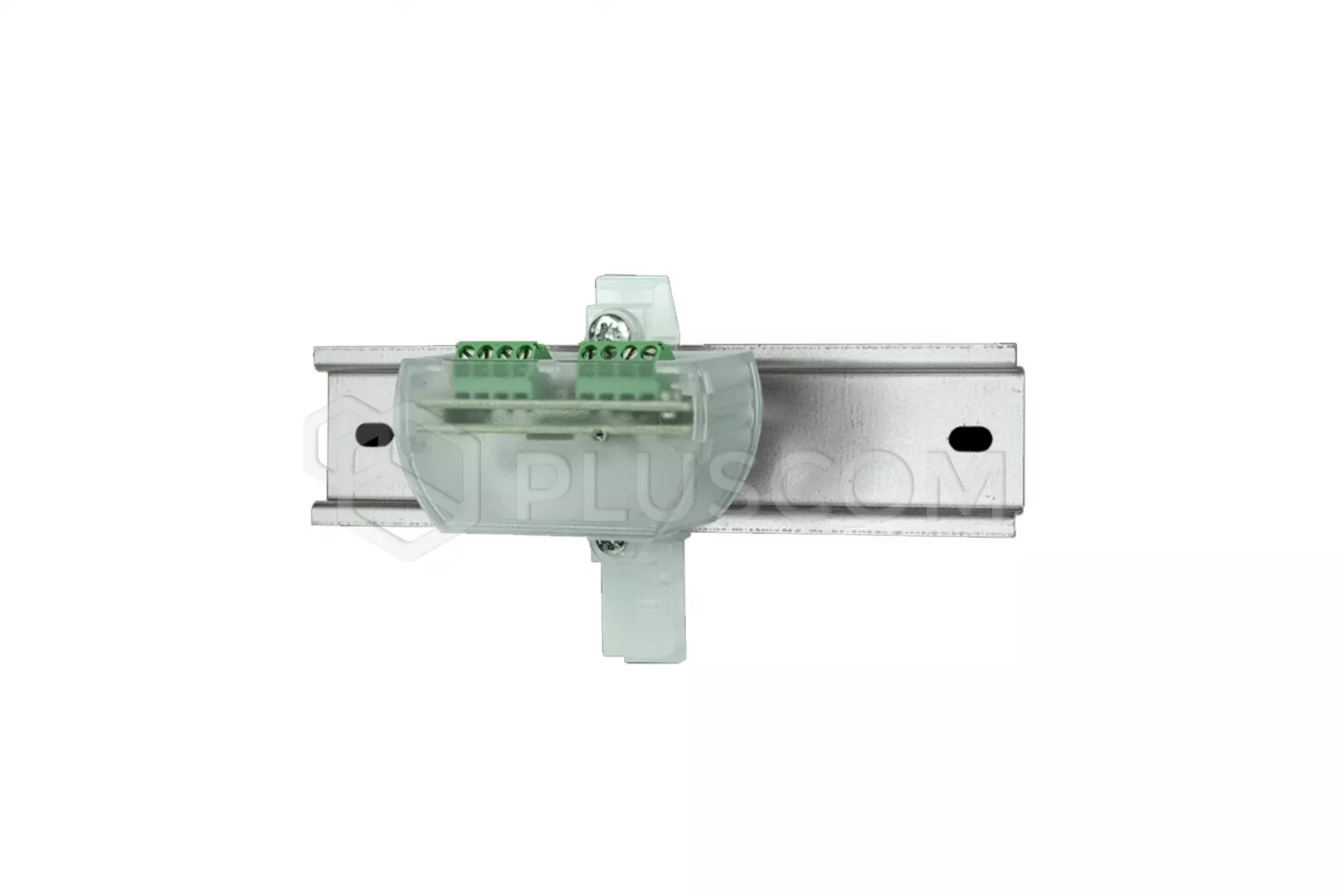

  • possible mounting on a DIN rail
  • plastic enclosure
  • dimensions: 37.0 x 55.0 x 47.0 mm
