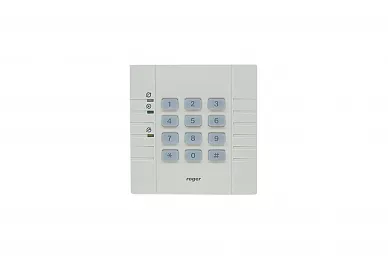

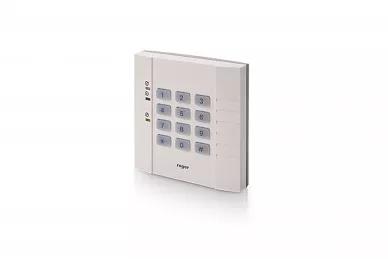

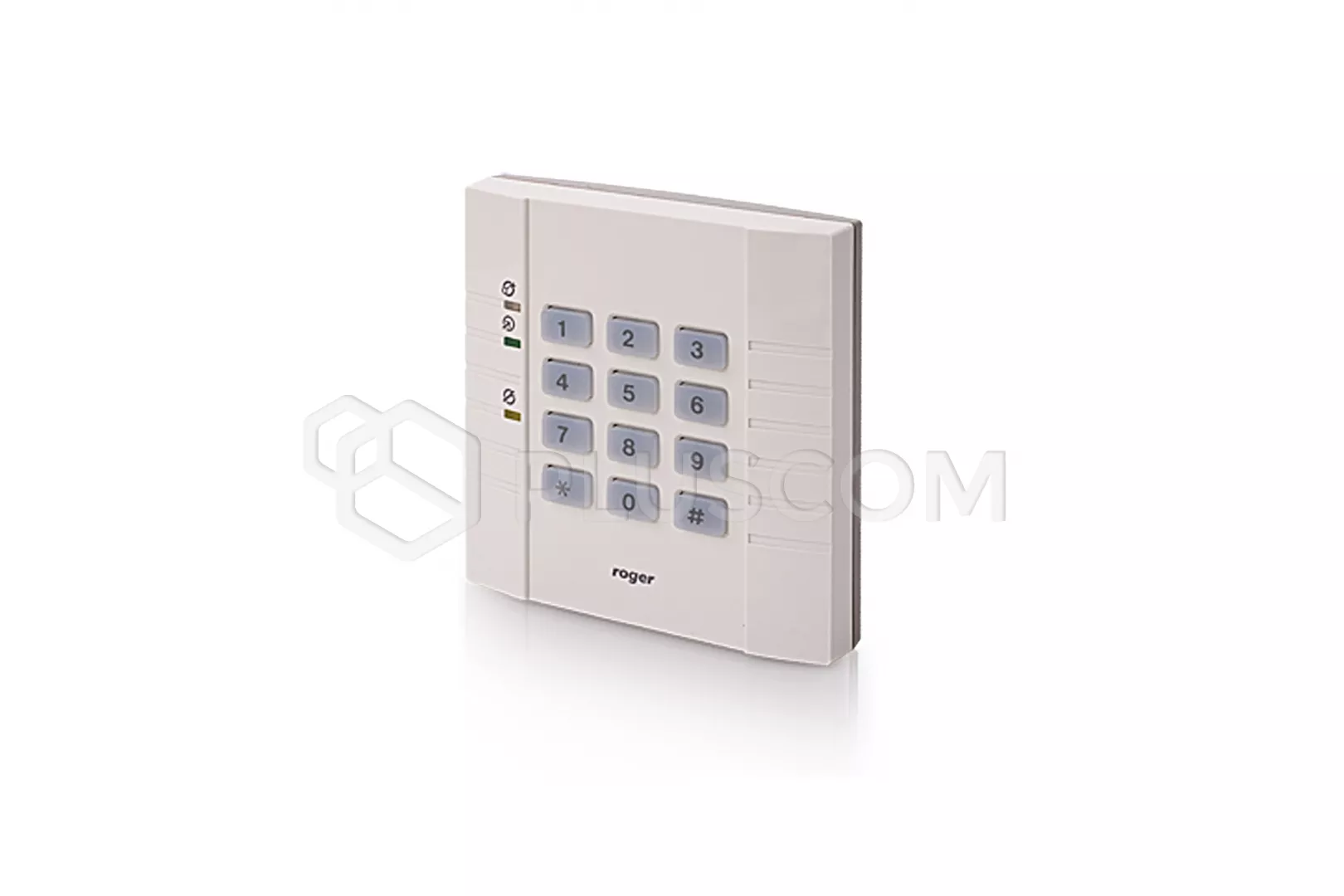

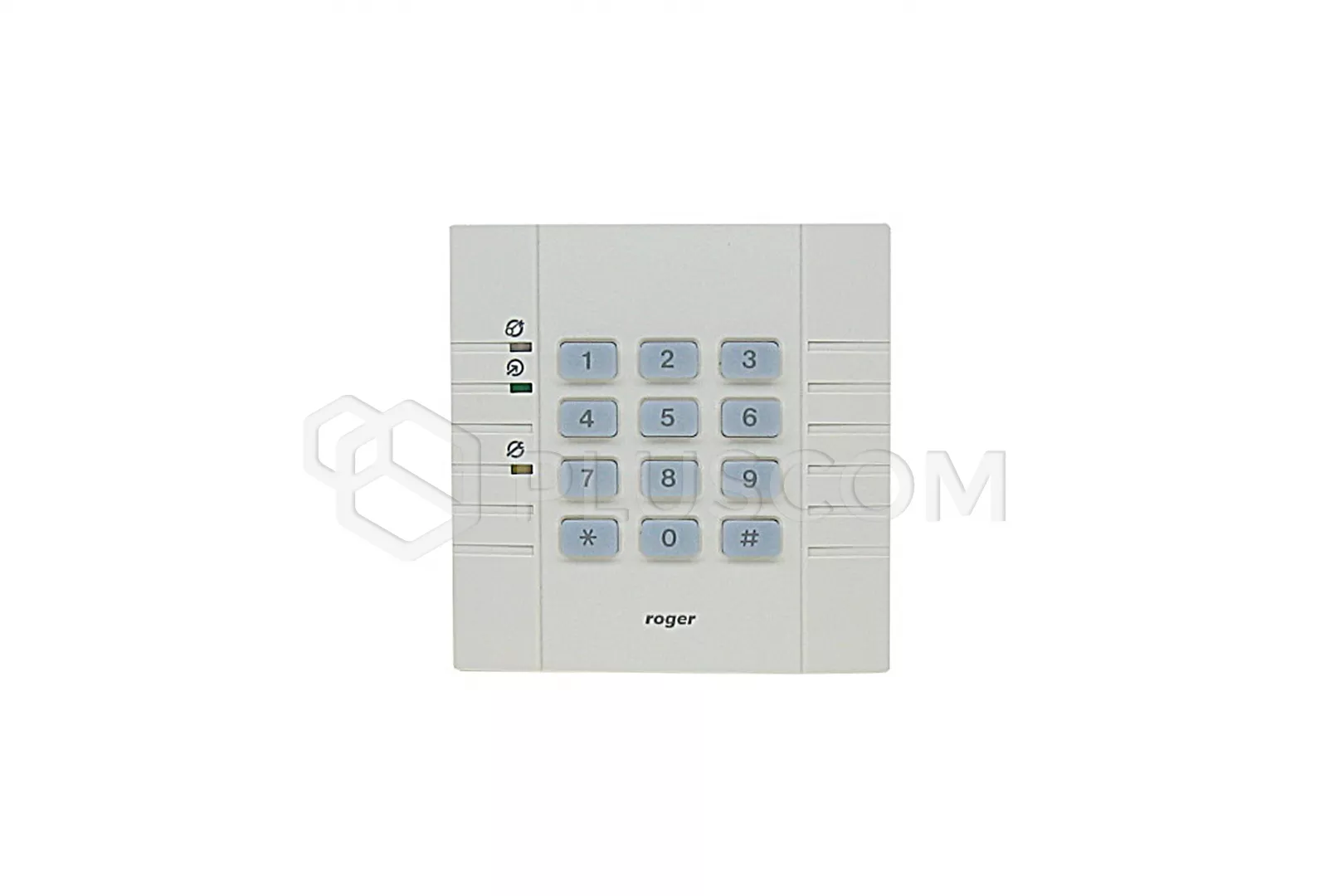

Roger PR302 Indoor access controller

Roger PR302 Indoor access controller with built-in EM 125 kHz proximity reader and keypad

PR302 access controllers may operate as standalone access control units or in integrated access control system with CPR32-SE network controller. In standalone mode PR302 autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real-time clock. Access control system based on PR302 controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN.

FEATURES:

• built-in EM 125 kHz reader
• reading distance up to 12 cm
• connection of one external reader (two way door control)
• support for Wiegand, Magstripe, PRT (Roger) readers and others
• three programmable NO/NC inputs
• two programmable 1 A transistor outputs
• one programmable 1.5 A relay output
• RS485 communication bus
• free topology of communication bus (star or tree topology allowed)
• 4000 users
• 99 time schedules
• 250 user groups
• built-in 32 000 event buffer
• local APB
• global APB (requires CPR32-SE in the system)
• global Alarm Zones (requires CPR32-SE in the system)
• operation with XM-2 I/O extension module
• 32 floor lift control (requires XM-8 I/O extension module)
• integration with burglary system through I/Os
• building automation through I/Os
• door operating modes: Normal, Locked, Unlocked, Conditional Unlocked
• user identification: Card or PIN, Card and PIN, Card only, PIN only
• two Persons, High Security and other advanced access options
• quick user editing (less than 5 seconds per each controller in system)
• management through Ethernet (LAN/WAN), USB or COM
• system can be divided into separate branches (networks, subsystems)
• multiple networks doesn’t increase system programming time
• tamper

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• average current consumption: 80mA
• programmable NO / NC inputs: 2
• programmable relay outputs: 1 x 1.5A / 30V
• programmable transistor outputs: 2 x 1A
• environment class: I
• working temperature: 5 ° C ~ 40 ° C
• weight: approx. 140g
• dimensions: 105x105x31 mm
