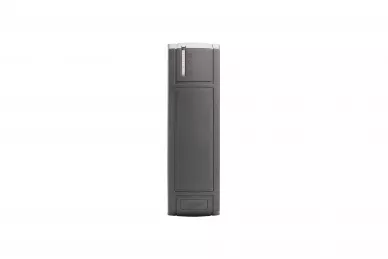

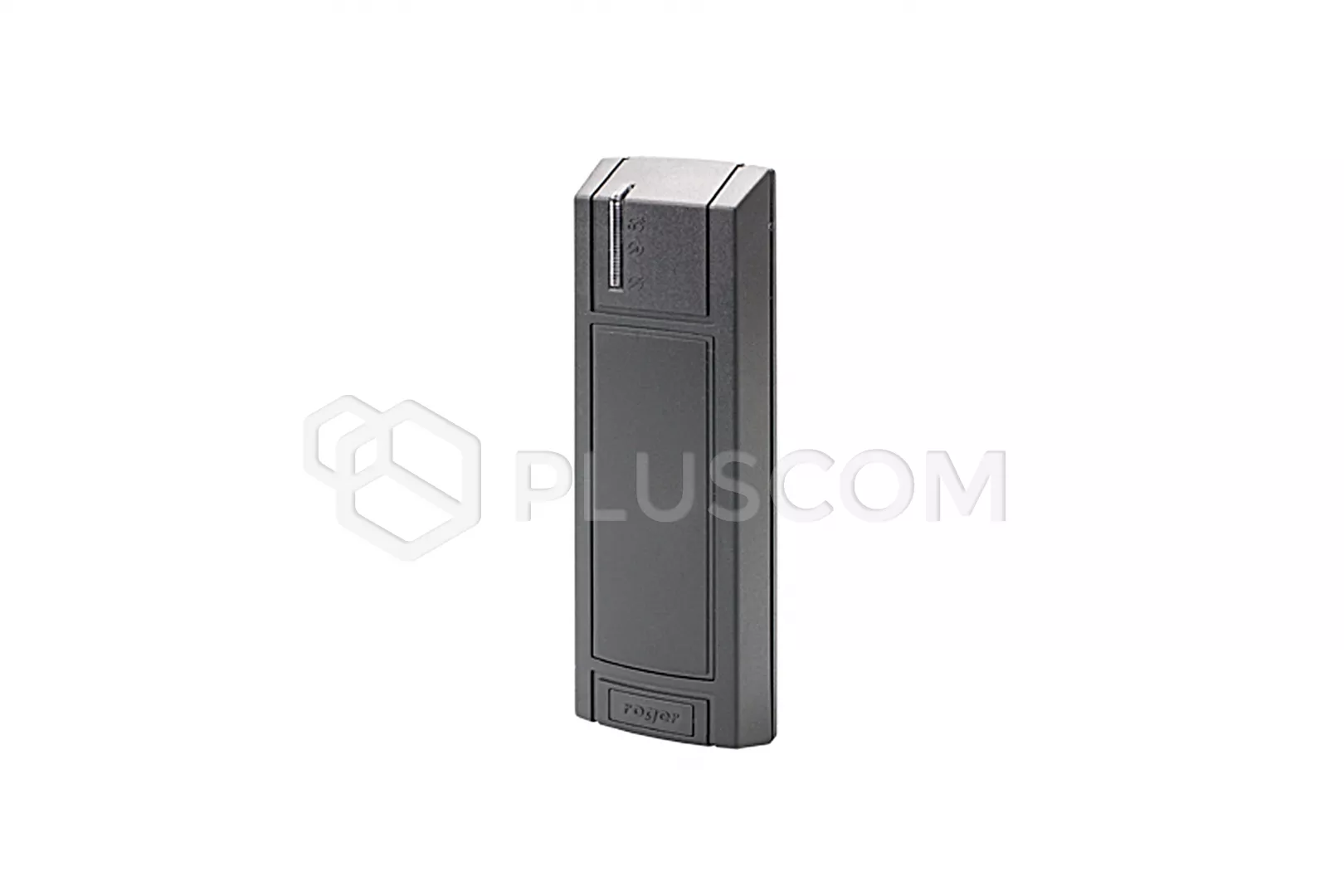

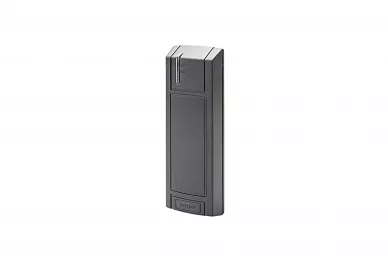

Roger PR312EM-BK Outdoor access controller

Roger PR312EM-BK Outdoor access controller with built-in EM 125 kHz proximity reader

PR312EM-BK access controllers may operate as standalone access control units or in integrated access control system with CPR network controllers. In standalone mode PR312EM-BK autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real-time clock. Access control system based on PR312EM-BK controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN.

FEATURES:

• built-in EM 125 kHz proximity reader
• buzzer
• outdoor operation
• 3 programmable inputs/outputs
• 1 relay output 1.5 A/30 V
• tamper
• programmed from PC
• RS485, RACS Clock&Data communication interface
• operation with RFT1000 readers
• up to 4000 users
• up to 32 000 built-in event buffer
• up to 33 000 000 event buffer in network equipped with CPR32-NET
• real time clock with battery backup
• user groups
• access zones
• schedules
• access control in elevators (XM-8 required)
• local APB
• global APB (CPR32 required)
• interlocking
• advanced access options: two users mode, conditional access, high security mode
• operation with turnstiles (XM-2 recommended)
• operation with barriers
• random user inspection
• integration with T&A system (RCP Master)
• integration with intruder alarm system
• integration with CCTV system (CCTV-DVR)

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards:
• • EM 125 kHz (UNIQUE)
  • compliant with EM4100 / 4102
• average current consumption: 70mA
• read range: up to 15cm
• environment class: IV
• IP65
• working temperature: -25 ° C ~ +60 ° C
• weight: approx. 150g
• dimensions: 152.5x46x23mm
