Nice OXILR radio receiver two-way

71,61 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #19677
Manufacturer: Nice
  • radio receiver two-way Long Range
  • Compatible with all Nice control units with SM connector
  • Memoris up to 1024 bidirectional transmitters
  • Antenna connectors
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ON3ELR 3 channels pilot with LoRa technology Nice Robus 500HS R10 Gear motor with built-in control unit HI-SPEED Nice Run 1200HS Gear motor with built-in control unit HI-SPEED Nice TITAN 3724HS Base set Nice Robus 250HS R10 Gear motor with built-in control unit HI-SPEED Nice TO5024HS actuator for swing gates up to 5m, 400kg/24V Nice WG3524HS actuator for a wing gate up to 3m/200kg Nice TITAN 6024HS Base set

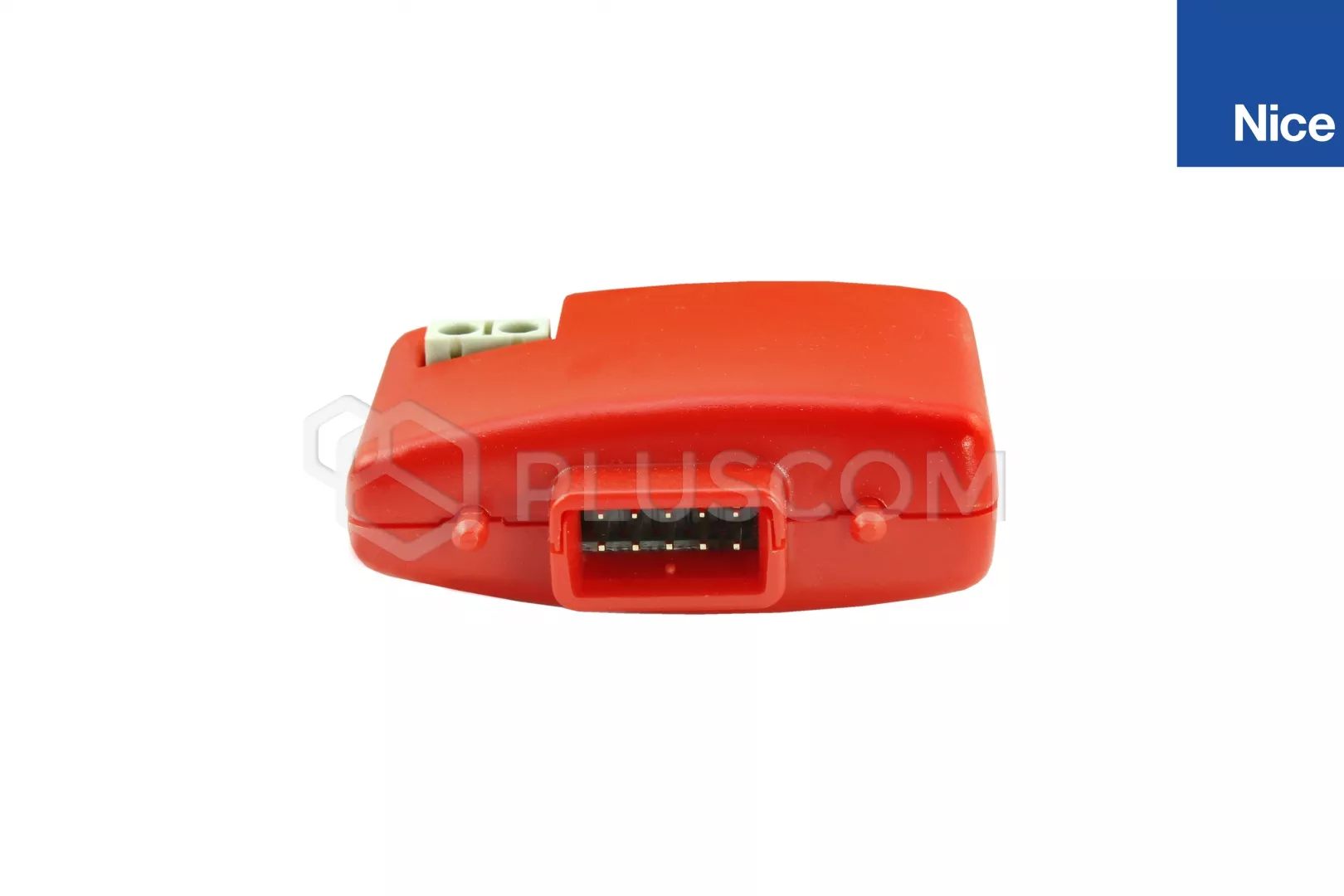

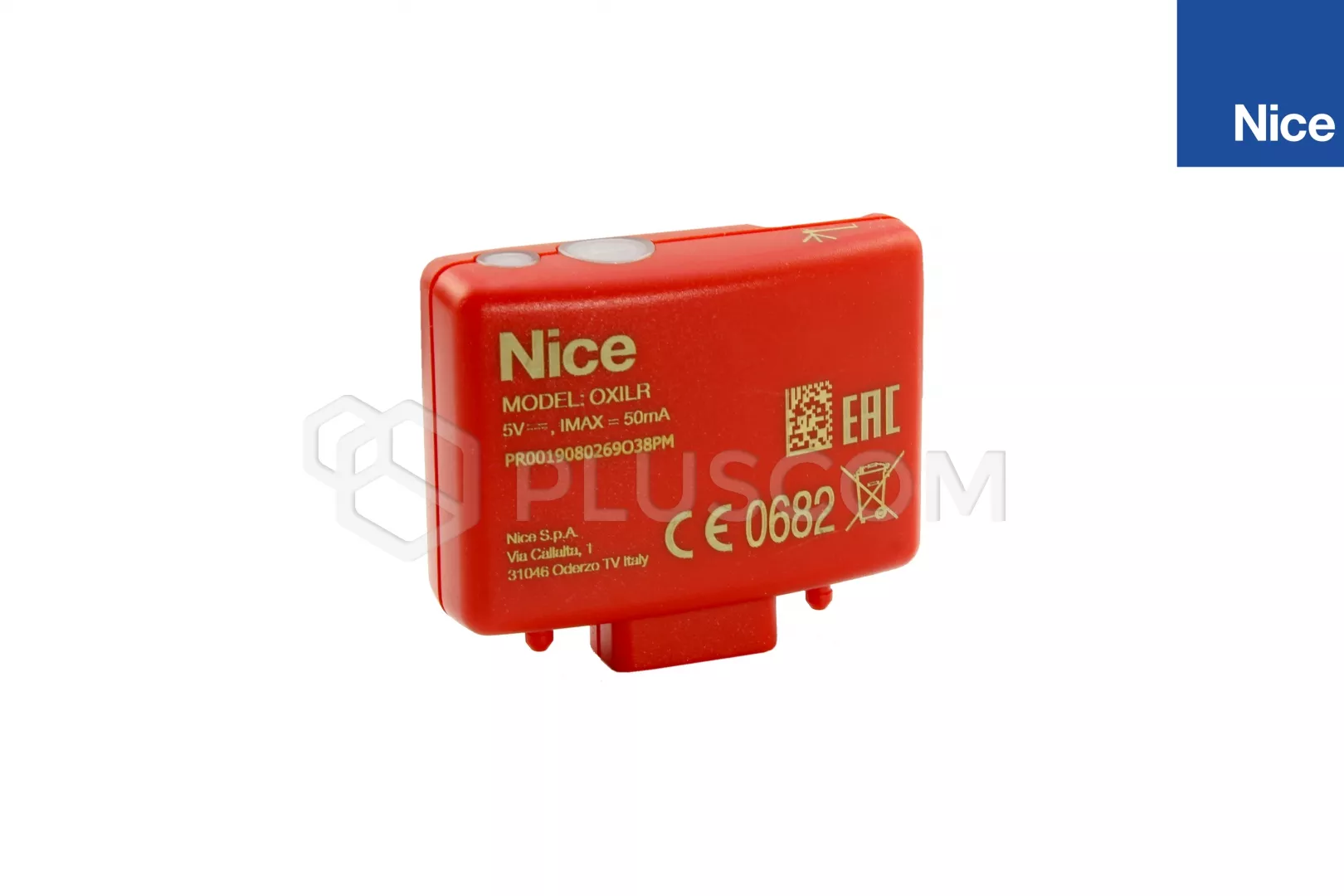

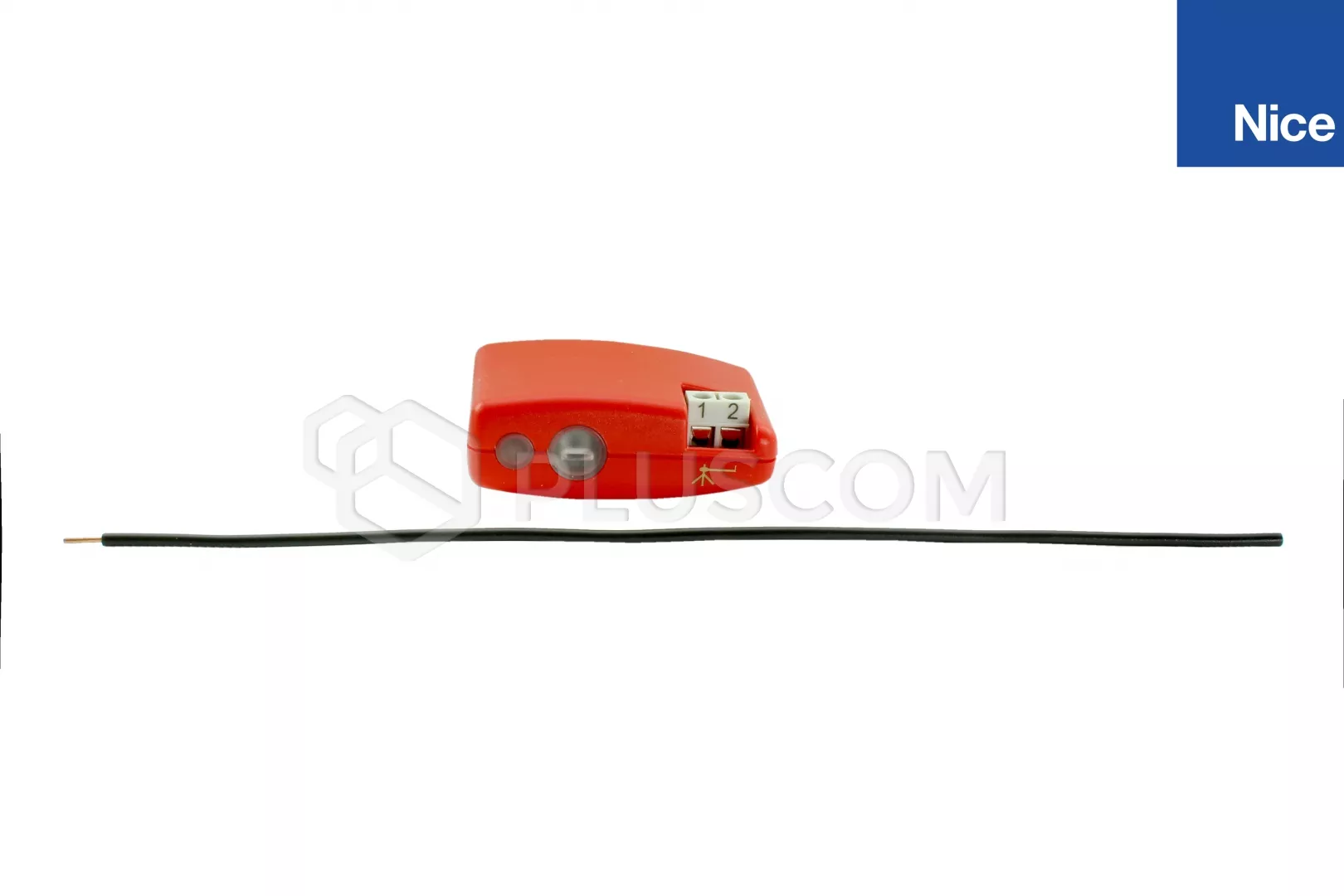

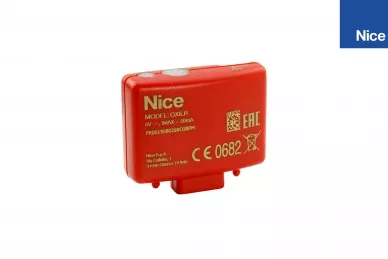

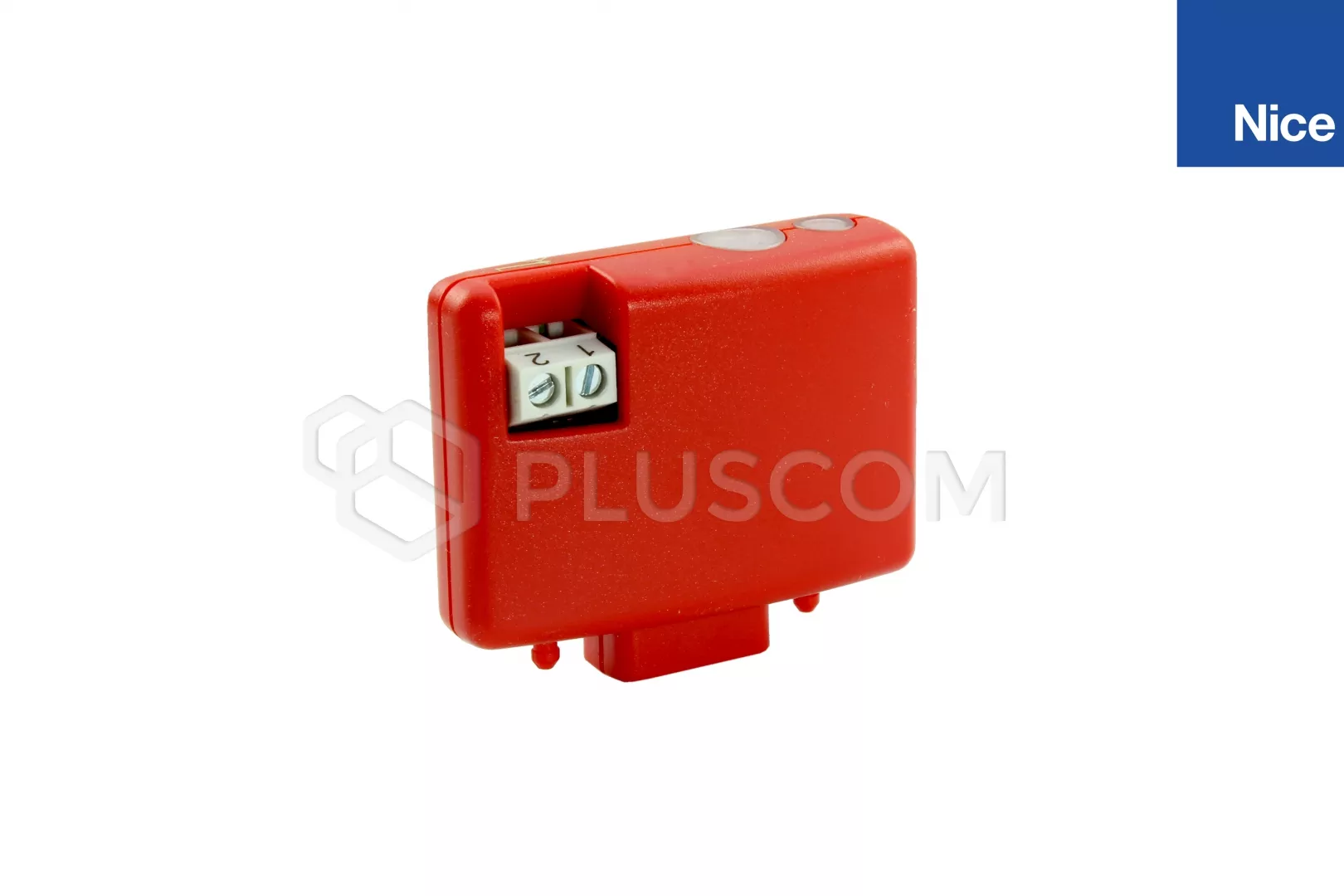

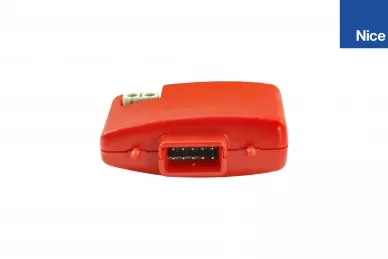

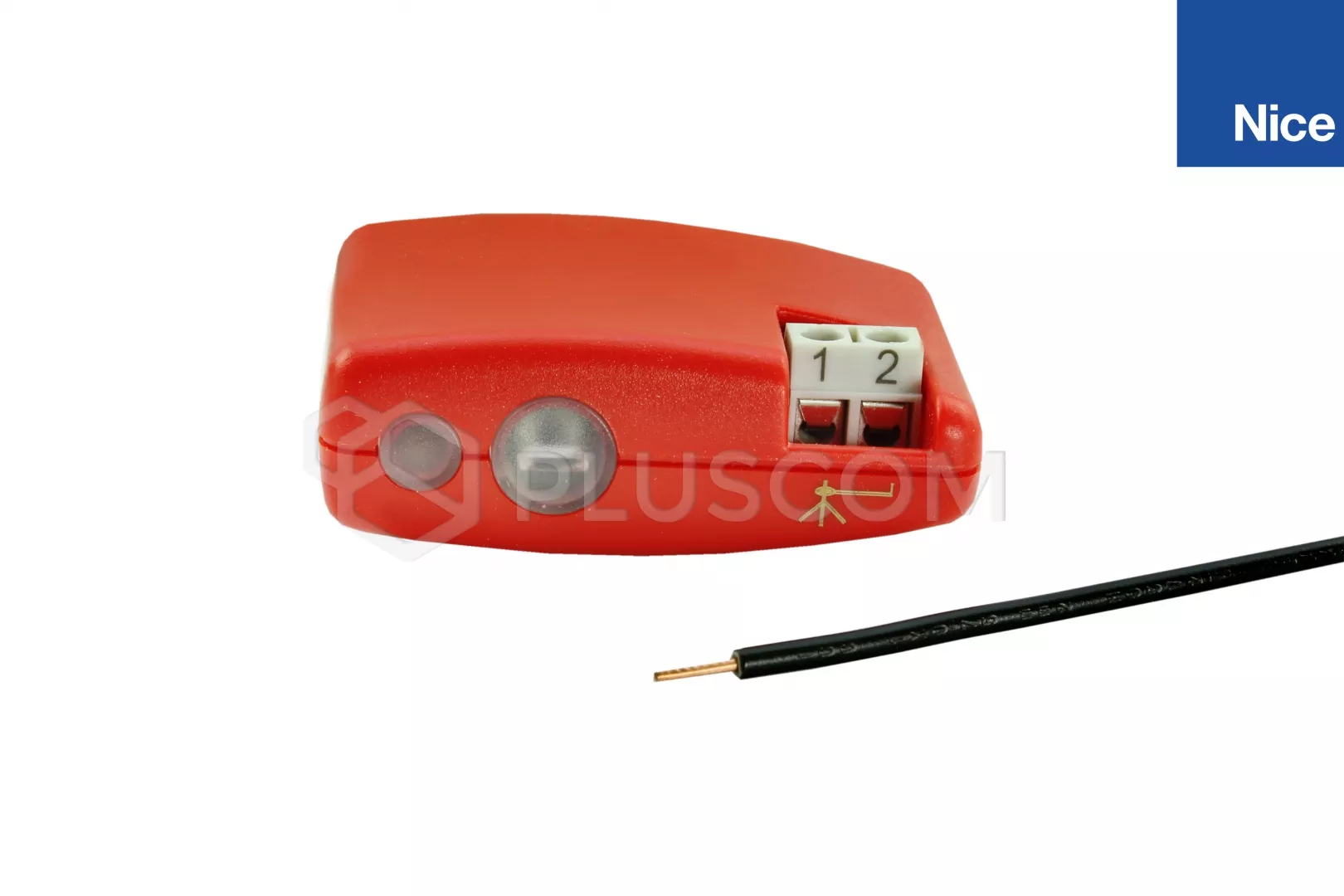

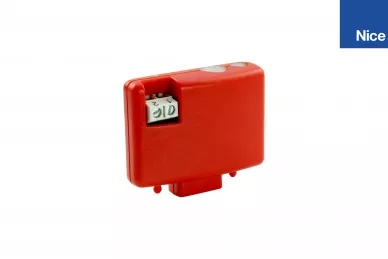

Nice OXILR long-range two-way radio receiver


Two-way radio receiver OXILR for mounting directly in the control panel drive.
It is compatible with all Nice control panels with an SM connector, which gives us the opportunity to adapt them to control in technology bidirectional long range.
OXILR automatically recognizes the characteristics of the control unit in which has been installed and can store up to 1024 bidirectional remotes in LoRa technology.

Bi-directional radio protocol has many advantages:
  • extending the radio range to 1km
  • confirmation by automation of the correct receipt of commands
  • the ability to check the state of automation at any time
  • high security thanks to encrypted communication
  • niskie zużycie energii w trybie czuwania
TECHNICAL PARAMETERS:
  • number of channels: 4
  • frequency: 433.92MHz
  • coding: variables
  • pilot memory: 1024 two-way transmitters
  • sensitivity –120 dBm
  • power supply: 5V DC (from the control panel connector)
  • absorption 50 mA (maximum)
  • protection: IP30
  • operating temperature –20 °C .. +55 °C
  • dimensions: 49.5x41.9x18mm
  • weight: 22g

The item is available in the following sets:

Nice ONELRKIT LORA Set Nice ONELRKIT LORA Set
Download
Datasheet 1.79 MB
Manual 2.79 MB
