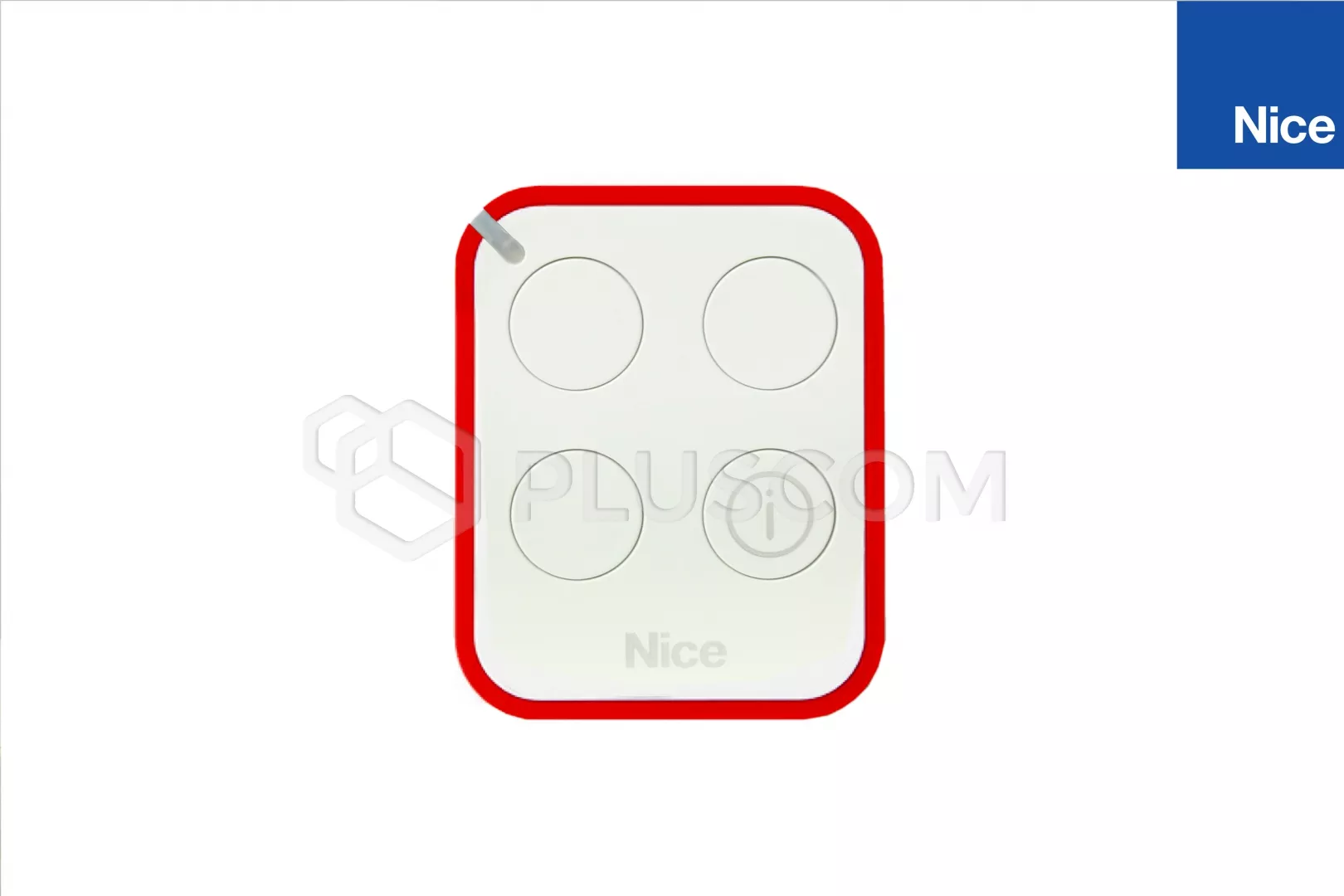

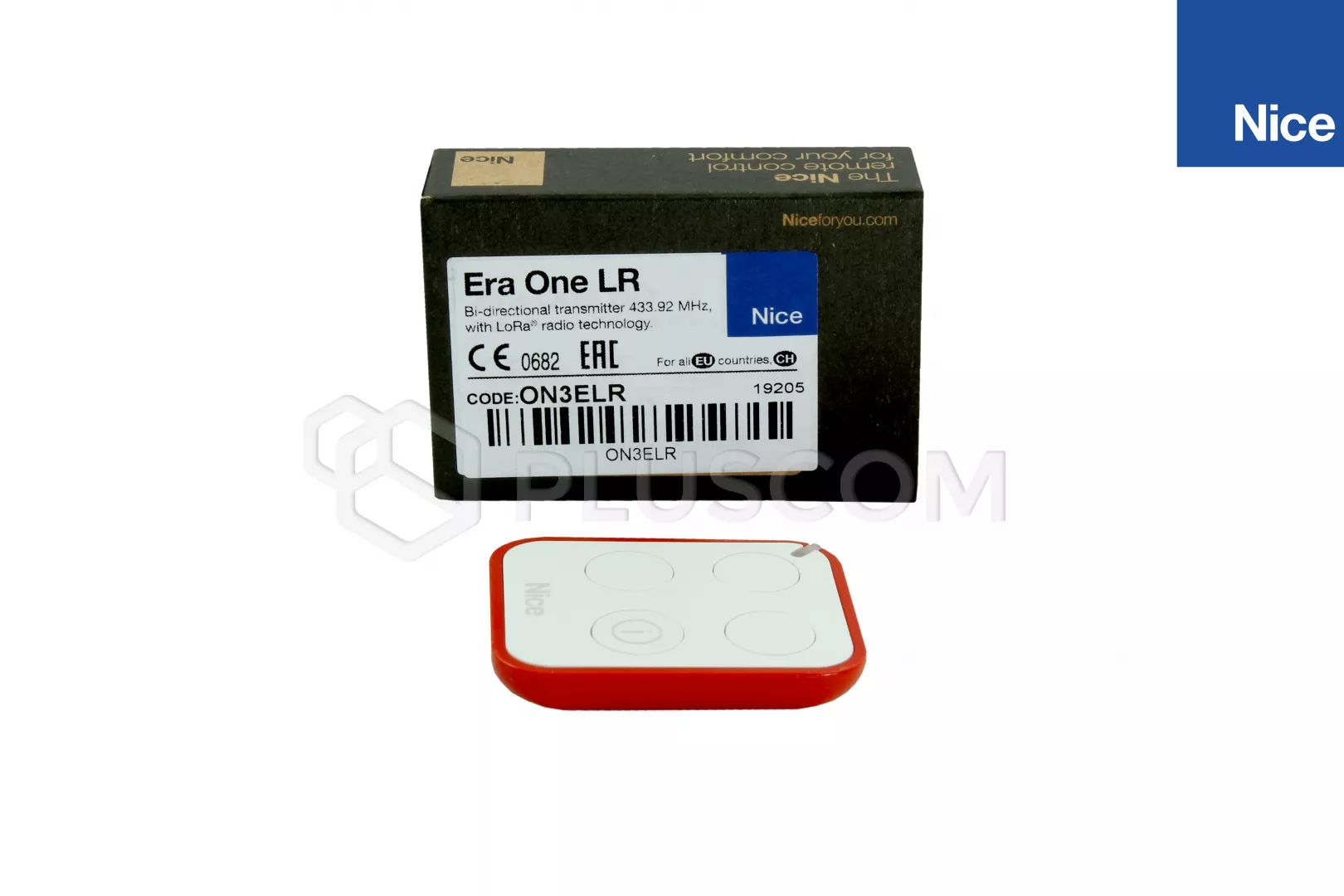

Nice ON3ELR 3 channels pilot with LoRa technology

Nice ON3ELR 3 channels with LoRa technology with a large range - 1km

The ON3ELR transmitter is designed to control automations (gates, garage doors, road barriers and similar). ON3ELR is compatible with receivers that adopt both the two-way “LR” radio encoding systems.

The ON3ELR transmitter is designed to control automations (gates, garage doors, road barriers and similar). ON3ELR is compatible with receivers that adopt both the two-way “LR” radio encoding systems. 433.92 MHz radio frequency with rolling code encoding, identity code management and self-learning. Long range commands: LoRa® technology sends commands over a distance in an open space about 10 times greater than previous radio protocols.

TRANSMITTER FUNCTIONS:

• maximum radio range: 1km
• sending of the receiver’s confirmation of the command received
• command received
• command not received
• sending of the automation’s status
• indication of the automation’s anomaly status

TECHNICAL PARAMETERS

• number of channels: 3

• frequency: 433.92 MHz

• range: up to 1km

• radio code: rolling code

• the power supply: 3V lithium battery CR2032

• battery life: about two years assuming 10 transmissions a day

• degree of protection: IP40

• operating temperature: -5°C...+55°C
• dimensions: 45x56x11mm

• weight: 18g

Elegant and convenient: the ON3ELR transmitter can be mounted on a board the car's dashboard thanks to a dedicated holder.
