The pilot GORKE PUK-151 has one key that can be covered flap to prevent
accidental key press.

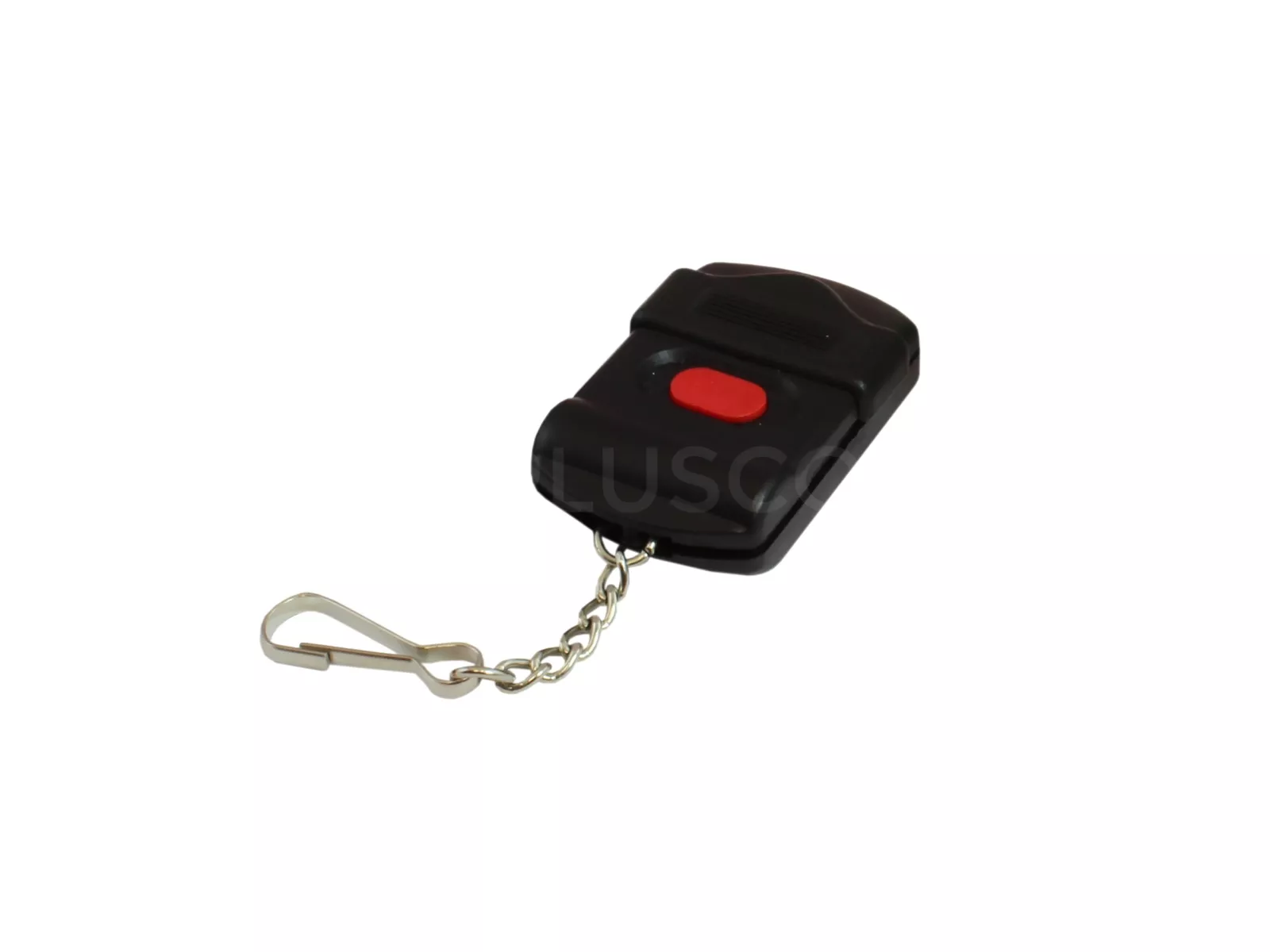

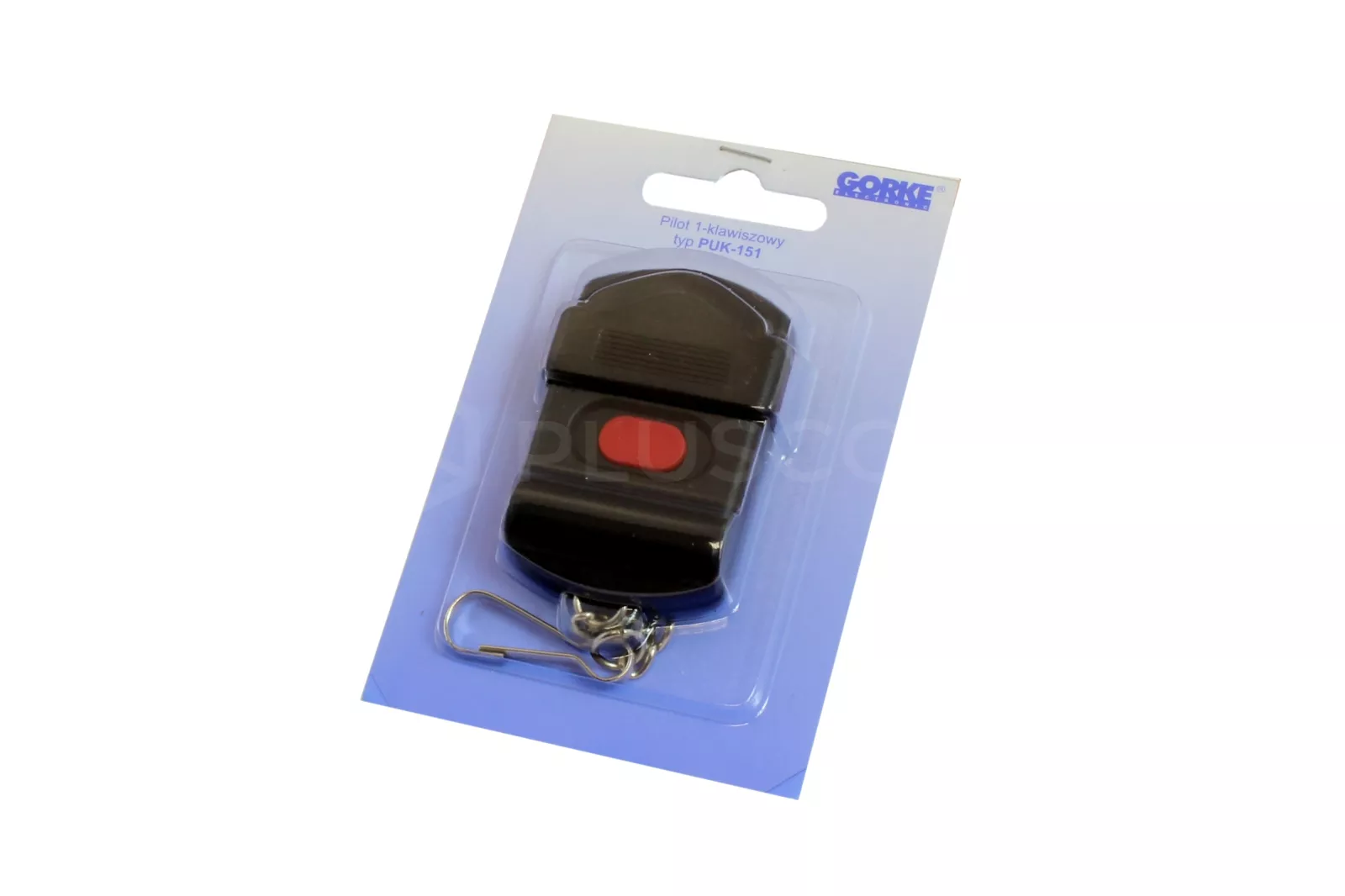

GORKE PUK-151 1-button remote control
Applications include remote control pilot.
- the alarm system
- gate, barrier
- blind, shutter
- electromagnetic locks
- lighting, air conditioning
The transmission is based on a variable code which provides a high safety
of use and resistance to radio signals from other sources.
The pilot does not have a low battery signal. No light when you press a key, or
a significant reduction in the operating range of the remote control may need
to replace the batteries.
Systems built with the remote control and receiver class superreakcyjnej (RSU)
achieve a range of
up to 150m. In contrast, the PUK 303 remote
configuration of superheterodyne receiver class (eg. OPC)
to 300 meters.
The reported ranges refer to the open space where the transmitter
"sees" with the receiver.
If between the transmitter and the receiver are obstacles, there should be a
reduction in the operating range according to:
- wood and plaster of 5-20%
- brick by 20-40%
- reinforced concrete by 40-80%
In particular, avoid metal obstacles.
GORKE PUK-151 1-button remote control
