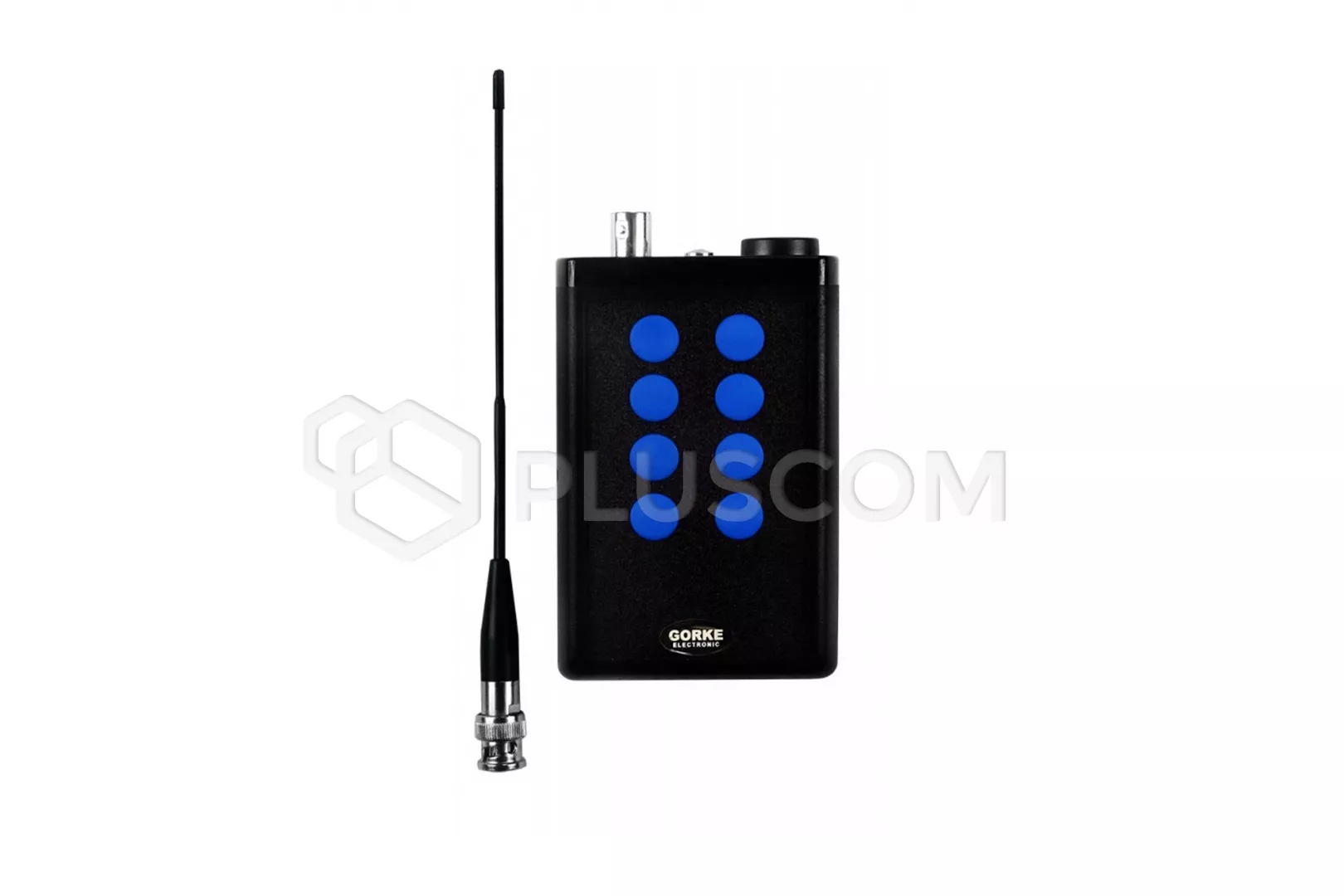

Gorke RNB-101S 9-key remote control

113,34 EUR including 23.00% VAT
Product code: #25647
Manufacturer: Gorke
  • 9-channel remote control
  • Coding: rolling code
  • Range: up to 1000m
  • Works with any sA series receiver
  • It can be used as an anti-panic button
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke IDO-1000 Receiver identification

Gorke RNB-101S 9-key remote control


The RNB-101S is a nine-key remote control dedicated to installations where signal transmission over long distances is required or when there is a need for remote control in an environment with numerous radio obstacles.

The remote control works with Gorke sA series receivers. It is recommended for cooperation using receivers with the H2 module, such as OPC or IDO, because this configuration allows you to achieve an optimal working range of approx. 1000 meters. The configuration of the RNB-101 and the receiver with the H1 receiving module (e.g. RSU) has a range smaller by 50% (this is due to the lower sensitivity of the receiver).

When using the device, each press of the button causes sending radio transmission and is signaled by the LED diode lighting up and a short one sound signal. When the battery is used up to the level of about 20% - the beep will be long and will continue as long as you press it button - which signals the need to replace the battery.
The battery life of the remote control is approx. 20,000 hours. transmission.

Key features:
  • constant signal strength regardless of battery condition
  • rolling code encrypted transmission
  • rugged housing
  • flexible antenna made of braided steel cable
  • hermetic button (IP65) with min. 1 million hits
  • activation signaling - acoustic and optical
  • acoustic signaling of low battery level
  • belt clip as standard
The remote control can be programmed to an unlimited number of receivers.

TECHNICAL DATA:
  • frequency: 433.92 MHz
  • encoding: rolling code
  • number of keys: 9
  • transmission power: ≤ 10 dBm
  • power supply: 9V alkaline battery type 6F22
  • signalling during transmission: built-in buzzer + LED diode
  • number of transmissions (without battery replacement): min. 20,000
  • operating temperature: -10 ÷ +55 ºC
  • dimensions (with antenna): 65×100 (300)×24mm
  • cooperation: sA series receivers
  • range in open area: approx. 1000 m with H2 receiver
  • weight: 174g
  • assembly: belt clip
