Gorke PNP-202 Panic button

GORKE PNP-202 Wireless (radio 433.92MHz) panic button, under-counter, 4-channel, 1-button

The button is intended for panic and paging systems. For mounting on the underside of countertops, desks, tables or other discreet locations places allows you to activate a silent alarm / notification or paging service, call for help to a sick person. It will also be used as an element for controlling the operation of the barrier, gate, signaling lighting, etc.

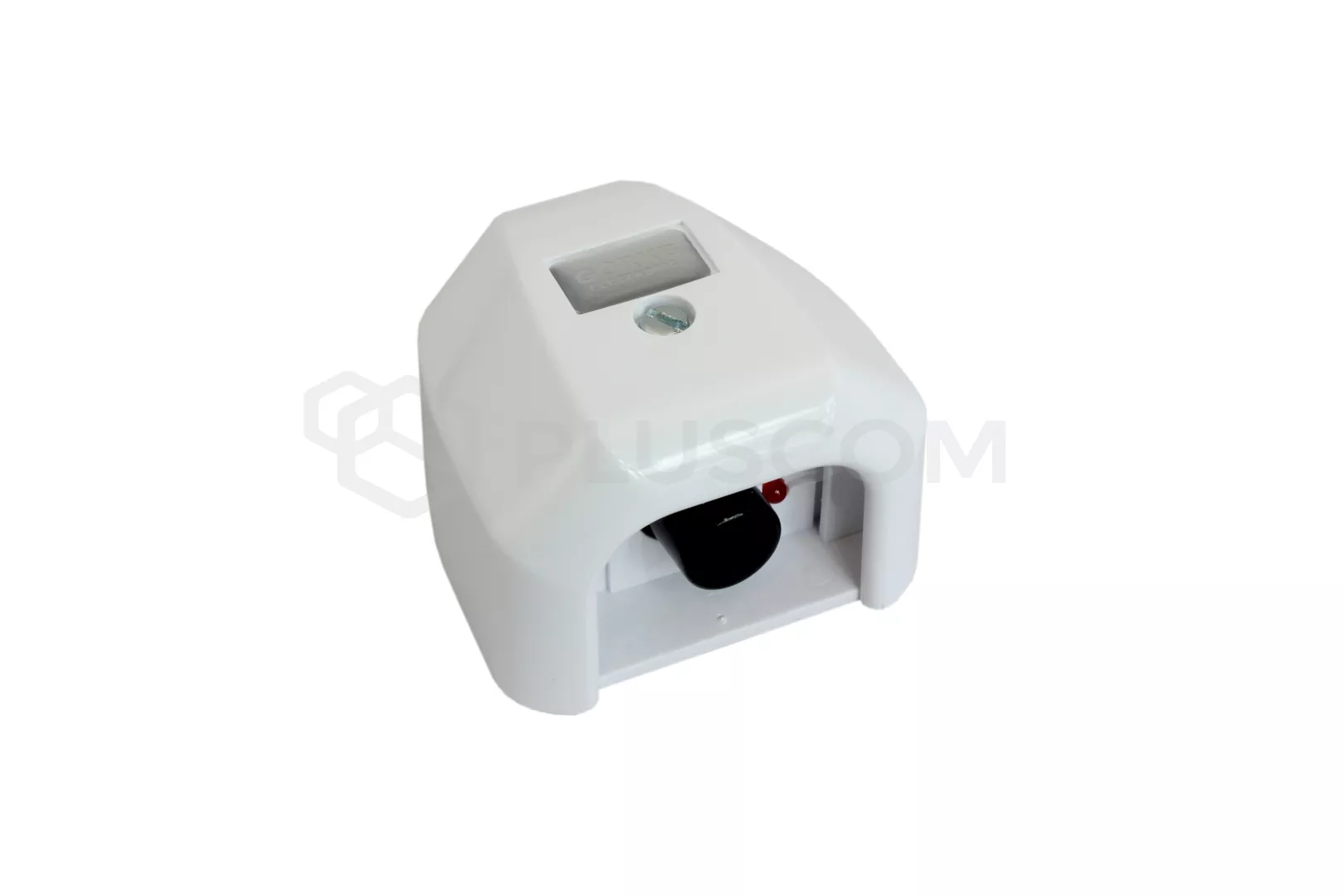

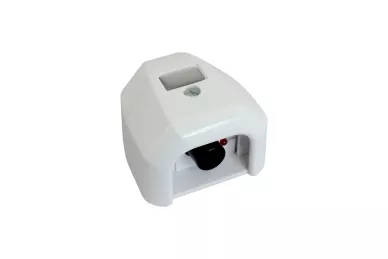

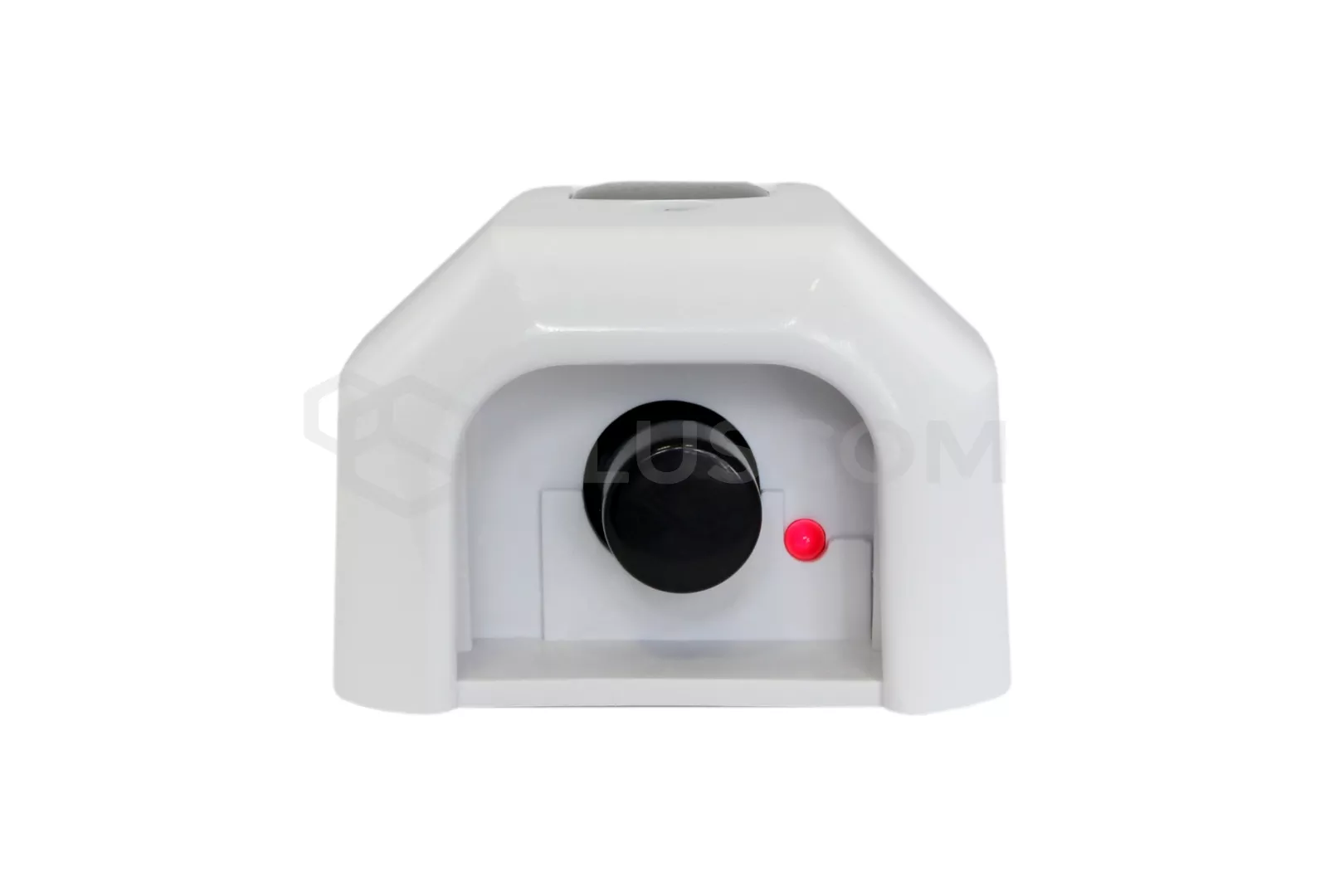

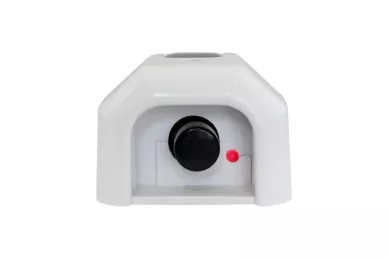

It has one clearly perceptible key that has been placed in housing cavity. The user has easy access to it and at the same time it has been secured against accidental pressing, e.g. during cleaning.

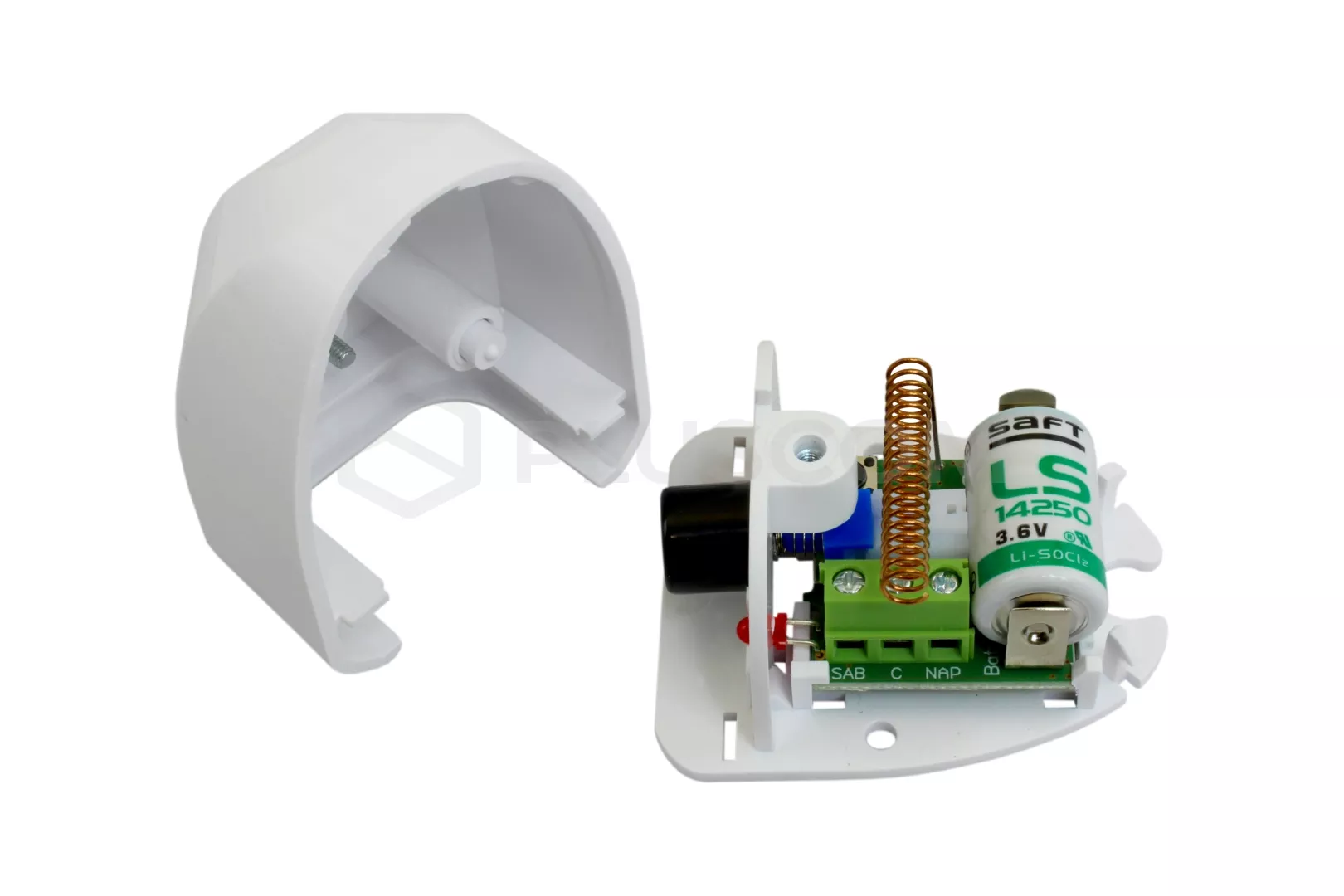

Inside the transmitter there is a terminal strip for wired connecting an additional button (NC and NO inputs) Changing the status of inputs from the terminal block can be forwarded by radio.

PNP-202 is a 4-channel button:

• 1 channel - main key
• 2nd channel - case tamper
• 3rd channel - NC input on the strip
• 4 channel - NO input on the strip


Sends the following signals: pressing the home button, opening case (sabotage), NO input shorted (on the terminal strip), open NC inputs (on the terminal strip) Red LED by constant light signals the radio transmission and flashes every 5 seconds when the battery needs to be replaced.

The transmitter works with any sA series receiver (RSU, OPC IDO)

The transmission is coded (rolling code) guarantees high security use of wireless systems. Each transmitter has its own individual code. The receiver responds only to those transmissions that come from the transmitters programmed into its memory. The transmitter can work with unlimited number of receivers.

TECHNICAL PARAMETERS:

• frequency 433.92MHz
• encoding: rolling code
• transmission power: ≤+6 dBm
• number of channels: 4
• number of keys: 1
• range: 150/300m depending on the receiver


• power supply: 3.6V LS14250 lithium battery (provides min. 60'000 transmission)


• operating temperature: -10°C...+55°C
• dimensions: 61x50x35mm
