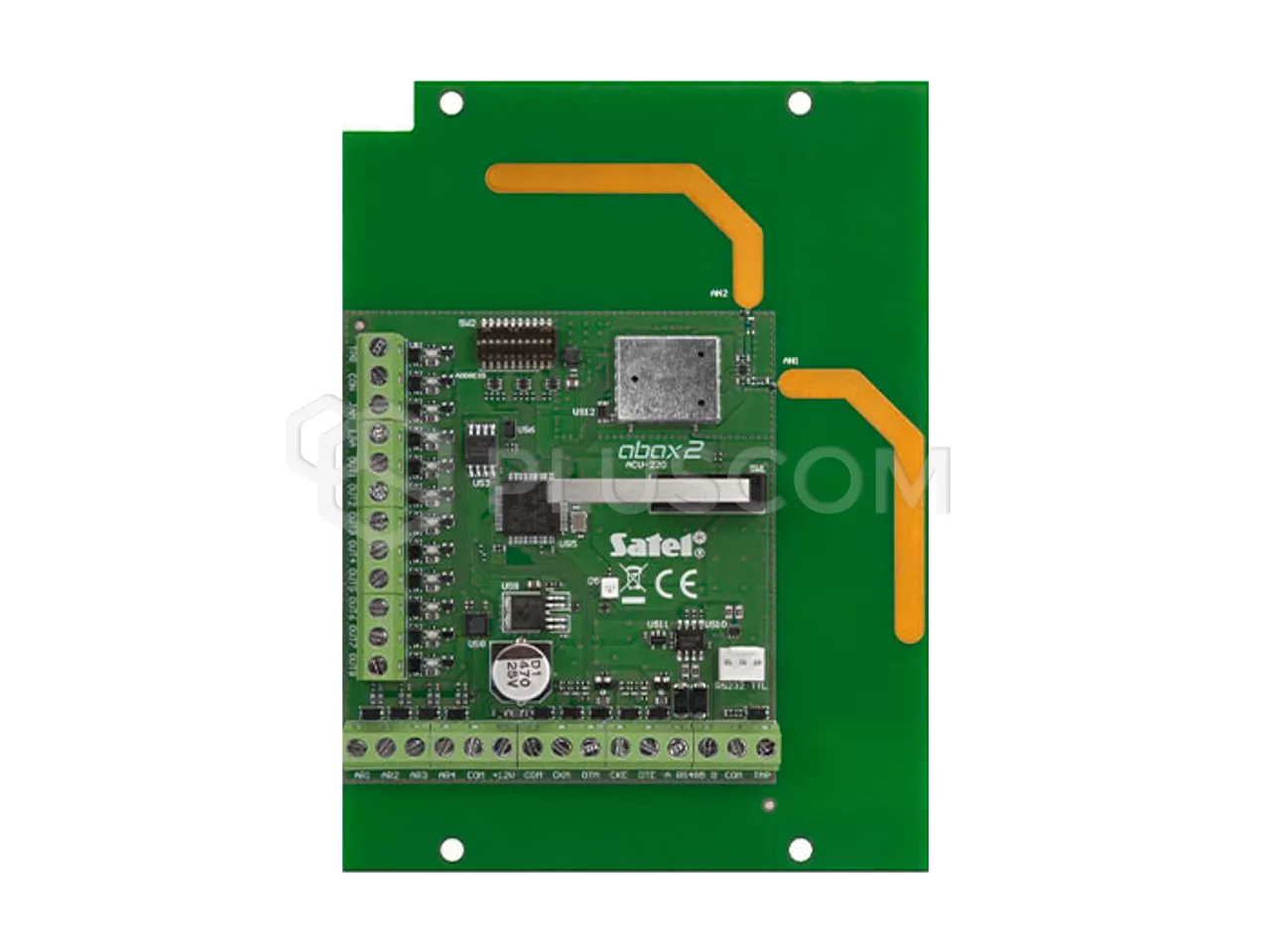

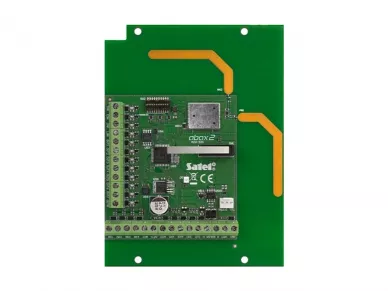

Satel ACU-220 ABAX 2 Wireless system controller

Satel ACU-220 ABAX 2 Wireless system controller

The ACU-220 controller enables expansion of the alarm system or automation system by adding the ABAX 2 wireless devices.
The ABAX 2 system offers two-way communication. All transmissions are acknowledged, which ensures that the information has been received and makes it possible to check the presence of devices in the system in real time. Configuration of settings, testing and updating of the firmware of wireless devices are carried out via radio and, consequently, do not require removal of their enclosure.

Features:

• Support for up to 48 ABAX 2 wireless devices (the number of supported devices depends on the configuration)
• Support for ABAX 2 wireless keypads:
• • up to 4 INT-KWRL2 keypads
  • up to 6 VERSA-KWRL2 keypads
• Support for APT-200 keyfobs:
• • expander of wireless devices for SATEL alarm control panels – the number of supported keyfobs depends on the maximum number of control panel users
  • universal module of wireless devices – up to 256 keyfobs
• AES standard encrypted two-way radio communication in the 868 MHz frequency band
• Transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals in the 868 MHz frequency band
• Antenna diversification – automatic selection of the antenna that will be used for receiving transmission, depending on the level of received radio signal
• 4 OC type outputs indicating problems in the ABAX 2 system:
• • device tamper
  • no communication with the wireless device
  • jamming radio communication
  • wireless device power supply trouble
• 4 inputs to control operation of wireless devices
• 8 OC type outputs:
• • indication of the status of wireless devices (e.g. alarm from detector, siren signal triggered, etc.)
  • keyfob control option
• Ability to work with any alarm system or automation system thanks to the inputs and outputs
• Communication bus for connecting the controller to a SATEL control panel
• RS-485 communication bus for integrating the controller, e.g. with automation or data acquisition systems
• Controller firmware update capability
• Ability to remotely update the firmware of wireless devices (except for the ASD-250 wireless smoke detector)
• Tamper protection against enclosure opening
• Tamper input
