Satel INT-TSH2-W Manipulator with 7 '' touch screen, white
The INT-TSH2-W keypad is an ideal solution for users INTEGRA and
VERSA alarm systems expecting comfort with everyday use service. It is used to
control the alarm system and automation elements building - also KNX system
An ttractive design causes that INT-TSH2-W will fit perfectly in both modern
and traditionally decorated interiors. Its great advantage is its small
thickness housing, thanks to which the manipulator optically blends into the
wall it is on is mounted. The attractive appearance of the device, however, is
just the beginning advantages.
7 '' color screen and a resolution of 1024x600 allowed to
design a completely new way of daily operation of air handling units INTEGRA
and VERSA.
It has the ability to display 16 million colors and high quality and the image
is protected against scratches with a glass panel.

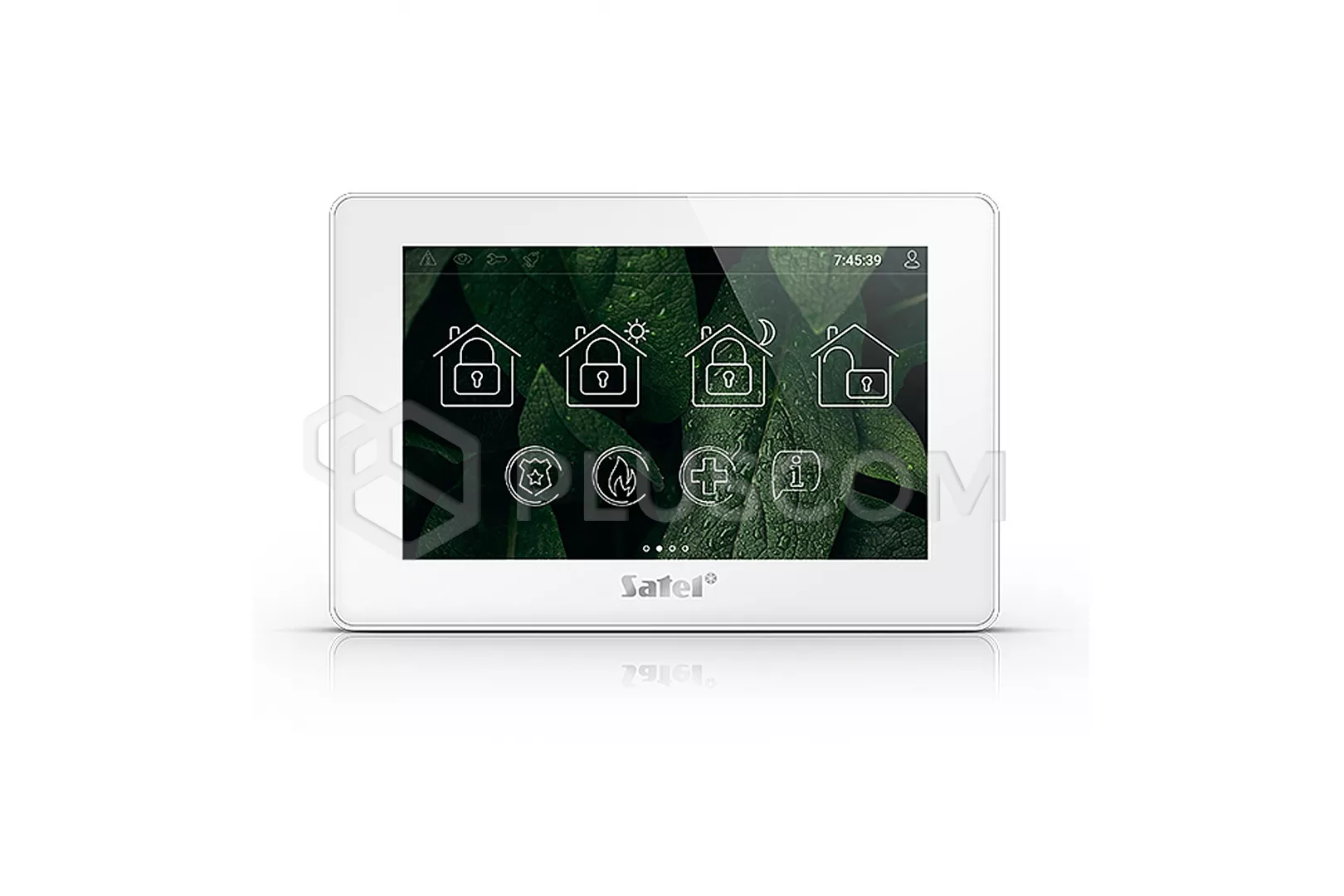

We have a choice of up to 24 touch screens or we can create our own
composition. The graphic theme is fully customizable - starting with
illumination, background, font color and ending with the appearance and
arrangement icons.
Thanks to the gesture support, navigating the interface is smooth and above all
everything - intuitive.
The screen brightness can be freely set depending on your preferences or time
of day. You can also adjust the volume of individual sounds.
The INT-TSH2-W keypad also provides quick and easy access to information on
the current state of the system. Thanks to the ability to define information
displayed in the status screen mode, one glance at the screen is all it takes
device to find out if the alarm system is armed or active outdoor lighting or,
for example, whether it is currently running sprinkling greenery.
In addition to the basic commands, INT-TSH2-W allows you to run it with a
single command even complex command sequences thanks to MACRO functions. This
is how it is an ideal solution when using intelligent functionality home,
available in the INTEGRA control panels.
The new software also allows you to upload a site map. Individual
devices can be arranged on it according to theirs actual location, which
greatly facilitates the identification of individual components system and
control.
Satel INT-TSH2-W Touchscreen controller
FEATURES:
- quick activation of PANIC, FIRE, and MEDICAL alarms

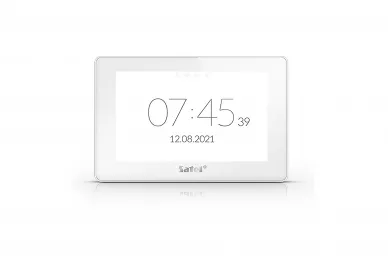

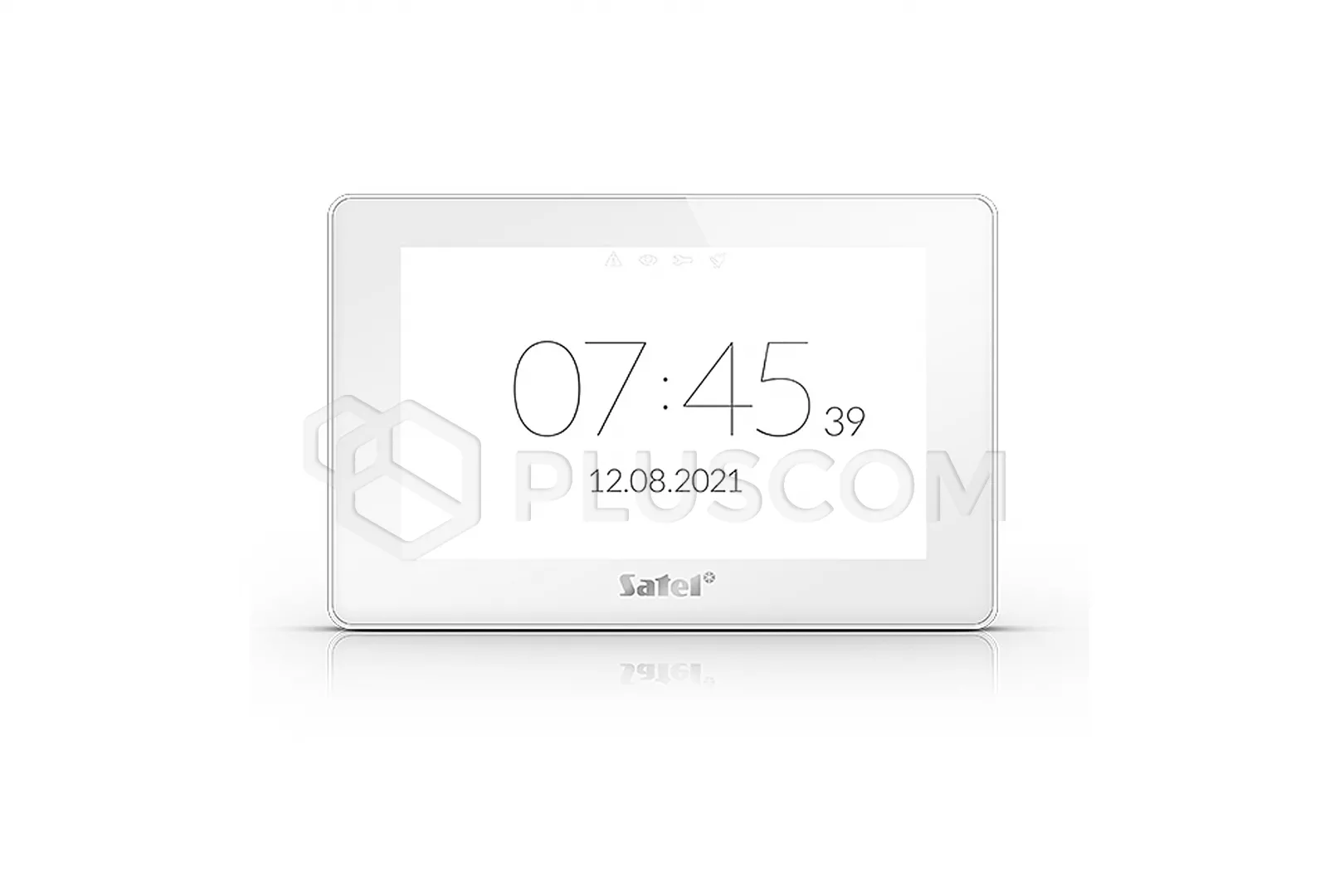

- screensaver with options to display clock, date, system component
statuses (zones, doors, exits), and temperatures (INTEGRA and INTEGRA Plus
only)
- option to display a slideshow (photo frame function)
- current system status notifications displayed on the taskbar
- 2 programmable hardwired zones (INTEGRA and INTEGRA Plus only)
-
- support for NO and NC type detectors, as well as roller shutter and
vibration detectors
- support for EOL, 2EOL and 3EOL configuration (3EOL with the INTEGRA
Plus only)
- programming of end-of-line resistor values
- built-in speaker for acoustic signalling
- adjustment of acoustic signalling volume
- built-in microSD memory card slot (for storing photo frame pictures and
additional screen wallpapers)
- tamper contact responding to the enclosure opening or detaching from the
wall
TECHNICAL DATA:
- Supply voltage: 12 V DC
- Standby mode current consumption: 350 mA
- Max. current consumption: 450 mA
- Supported memory cards: microSD, micro SDHC
- Environmental class according to EN50130-5: II
- Security grade according to EN 50131: Grade 3
- Operating temperature range: -10°C…+55°C
- Enclosure dimensions: 196 x 129 x 22mm
- Weight: 400 g
