Satel MLB-400 Conventional side line module

81,62 EUR including 23.00% VAT
Product code: #43188
Manufacturer: Satel
  • Support for up to 32 detectors or 10 manual fire alarms
  • Supply voltage: 18 - 26 V DC
  • Built-in short circuit isolators at the input and output of the device
  • Allows the inclusion of conventional warning devices in the system
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel DCP-100 Class A1R Point Heat Detector Satel ROP-111/PL Conventional manual call point for outdoor use Satel ROP-110/PL Conventional manual call point Satel ACSP-402 Fire Alarm Control Panel Satel DRP-100 Point Optical Smoke Detector Satel DMP-100 Point Multi-Sensor Smoke and Heat Detector

Satel MLB-400 Conventional Branch Module


The MLB-400 conventional branch module offers the ability to incorporate conventional call points into the system. This solution allows the use of existing infrastructure, thereby reducing the overall investment cost.
It is designed to operate in the detection line of the ACSP-402 addressable fire alarm control panel and supports up to 32 detectors or 10 manual call points (MOPs).

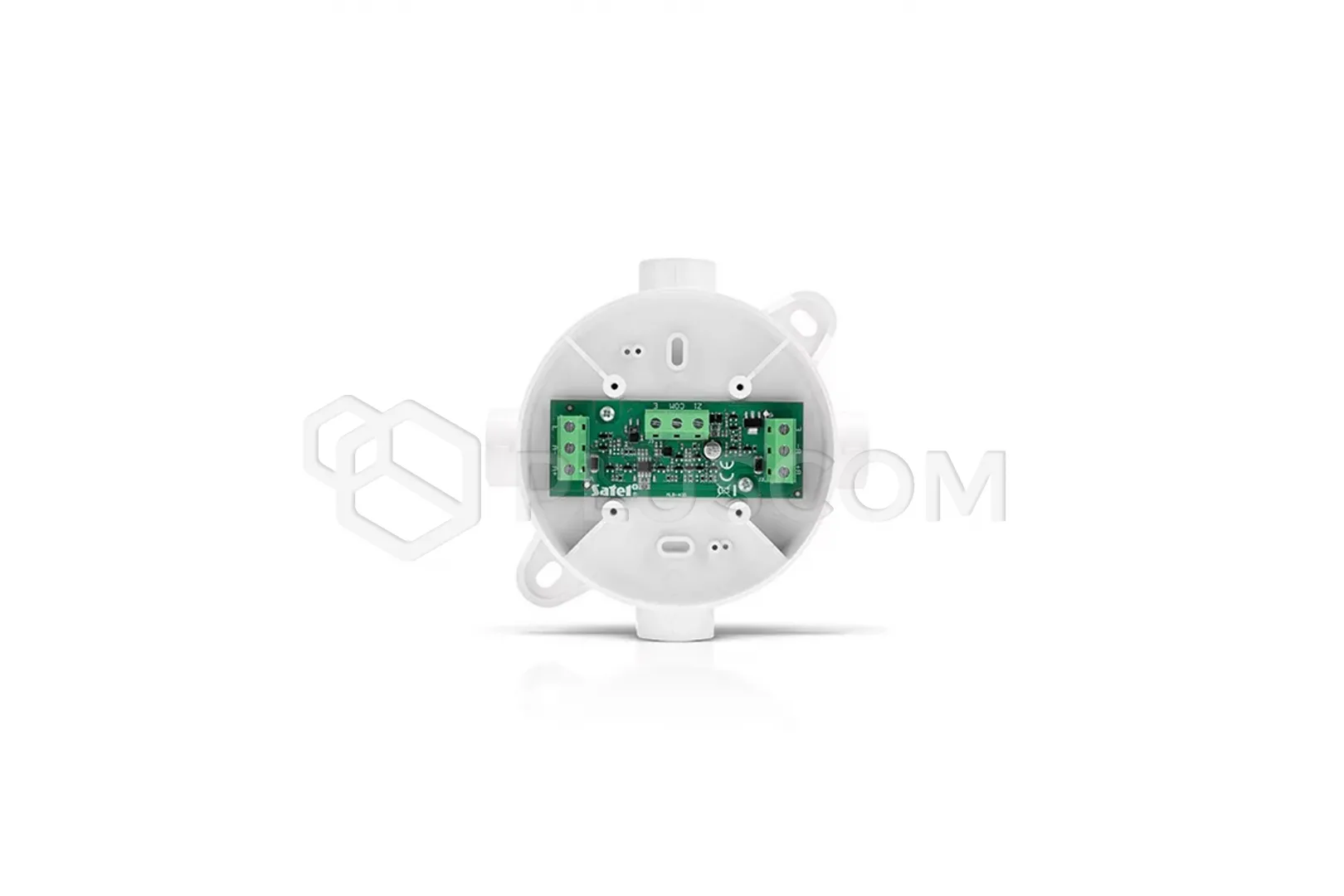

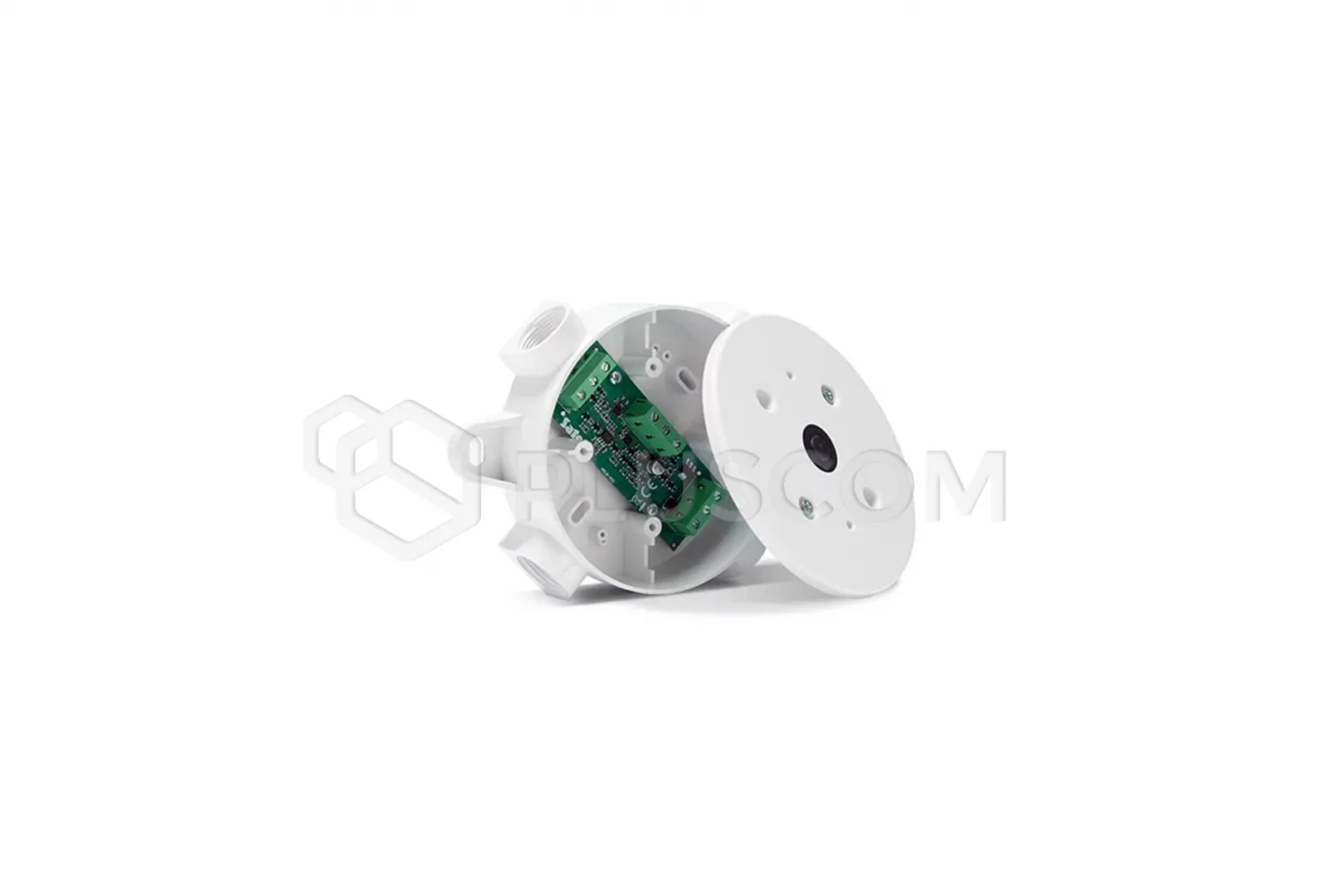

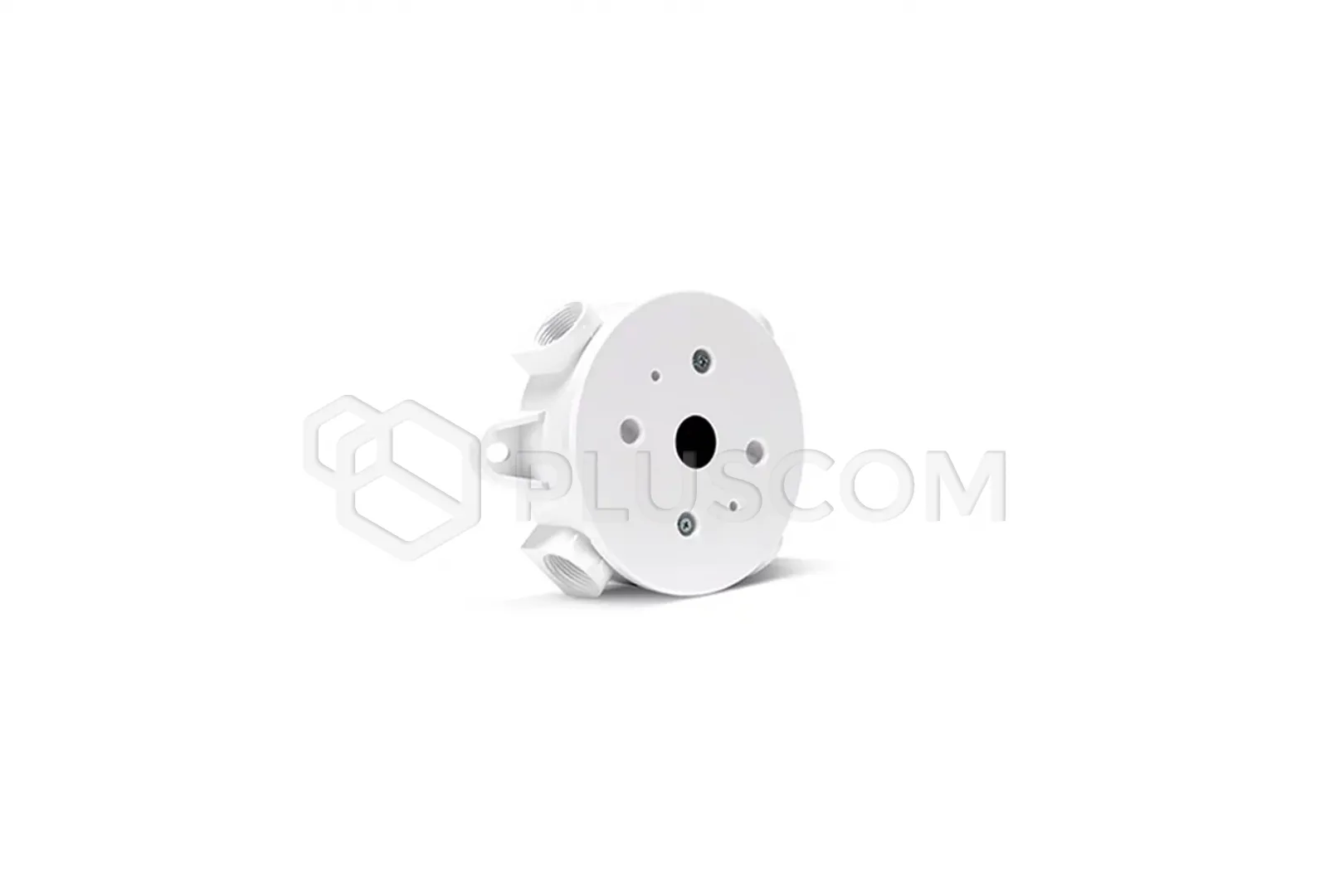

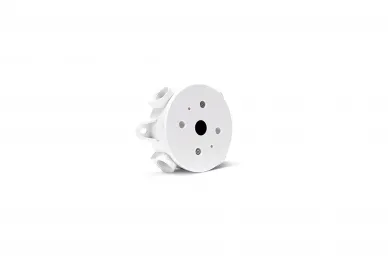

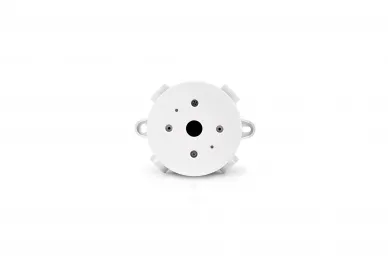

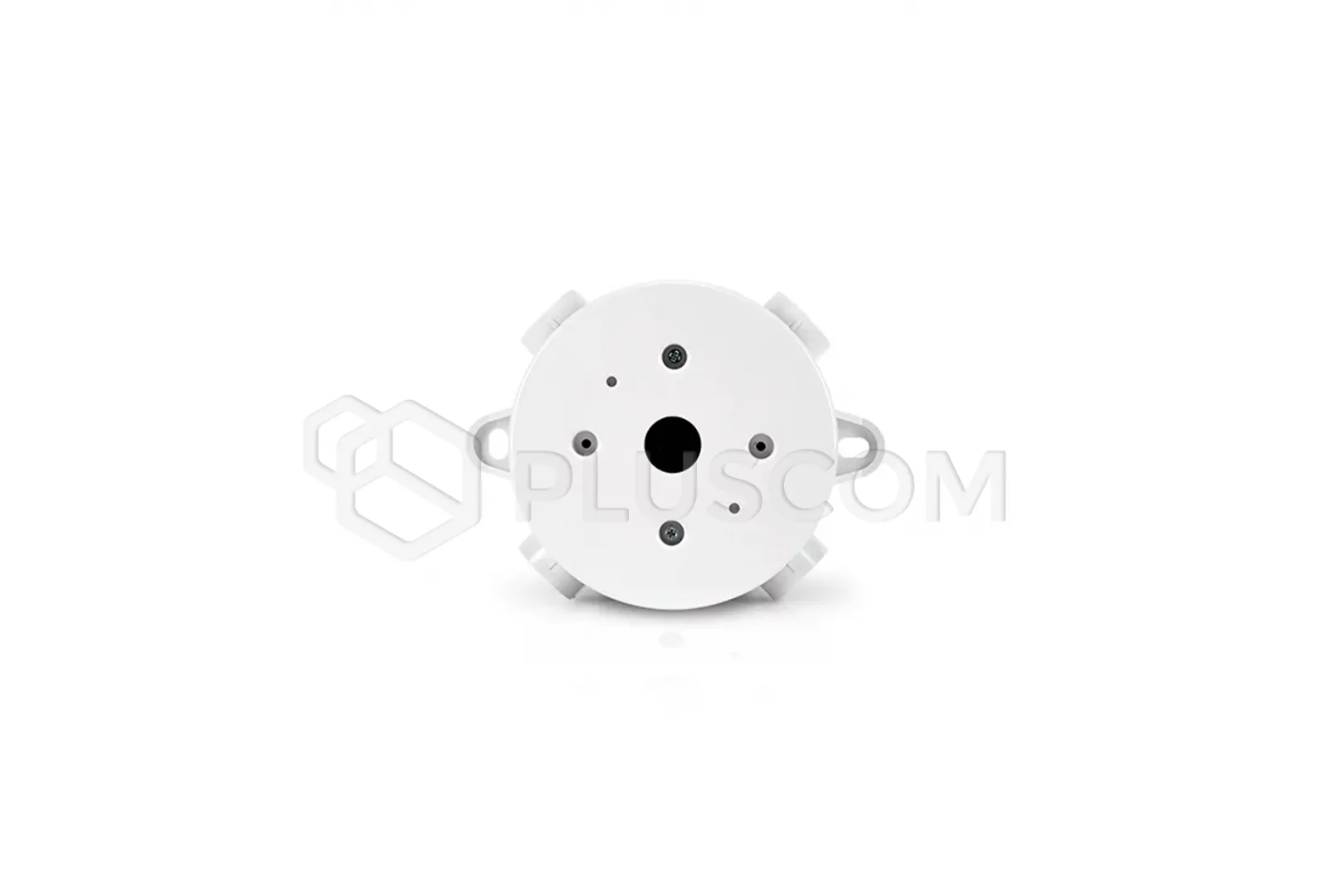

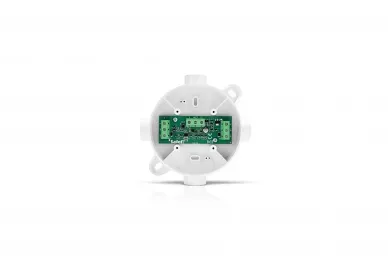

The MLB-400 has a sealed housing enabling installation in areas prone to condensation, as well as built-in short circuit isolators at the input and output of the device. It is powered from the detection line.

TECHNICAL DATA:

  • Power supply voltage: 18-26 V DC
  • Current consumption in quiescent mode: 3 mA
  • Current consumption in alarm mode: 20 mA
  • Operating temperature range: -10°C ~ +55°C
  • Maximum humidity: 93±3%
  • Dimensions: 131 x 131 x 38.5 mm
  • Weight: 153 g
