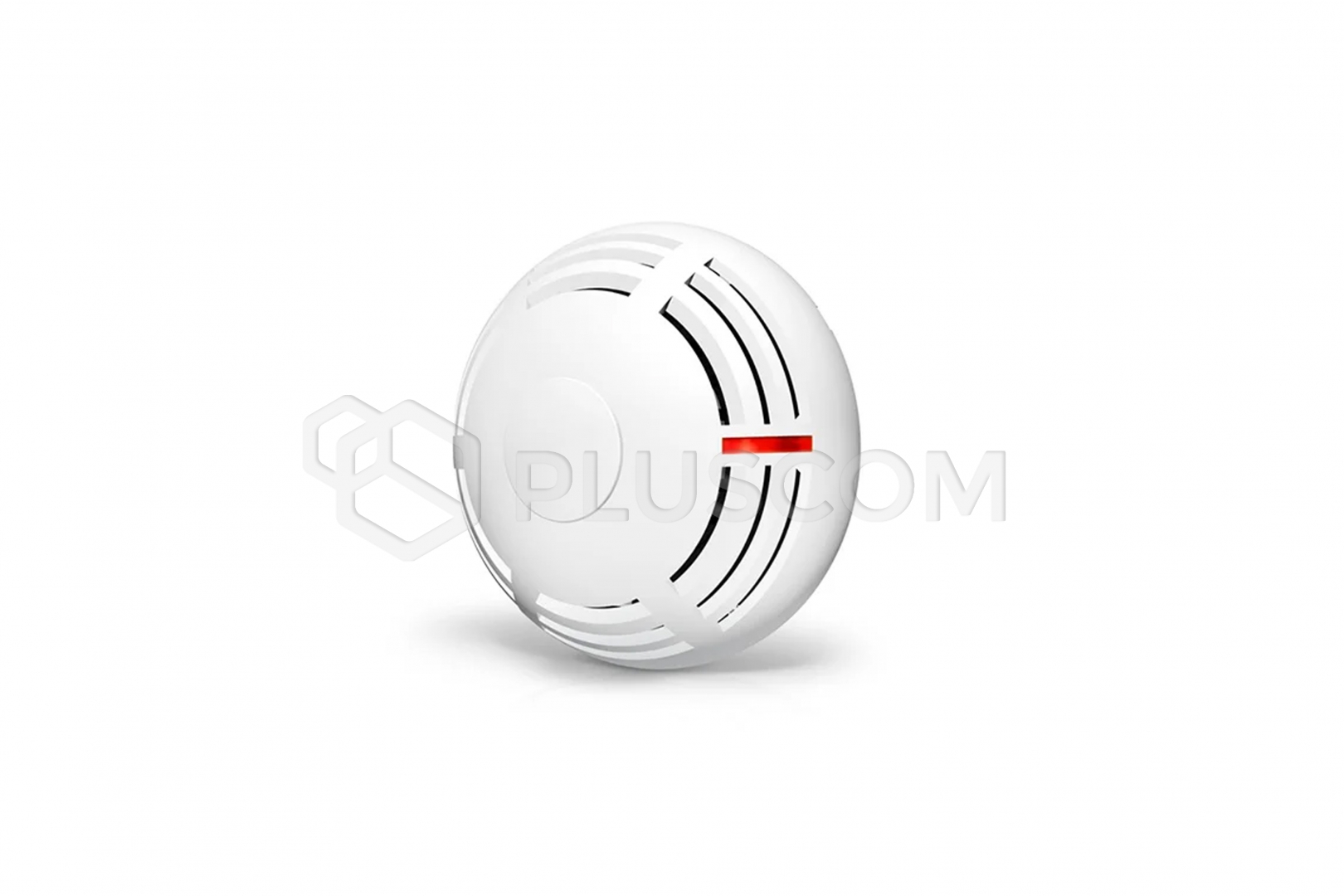

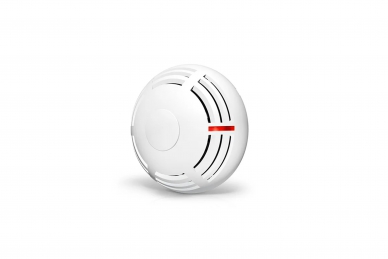

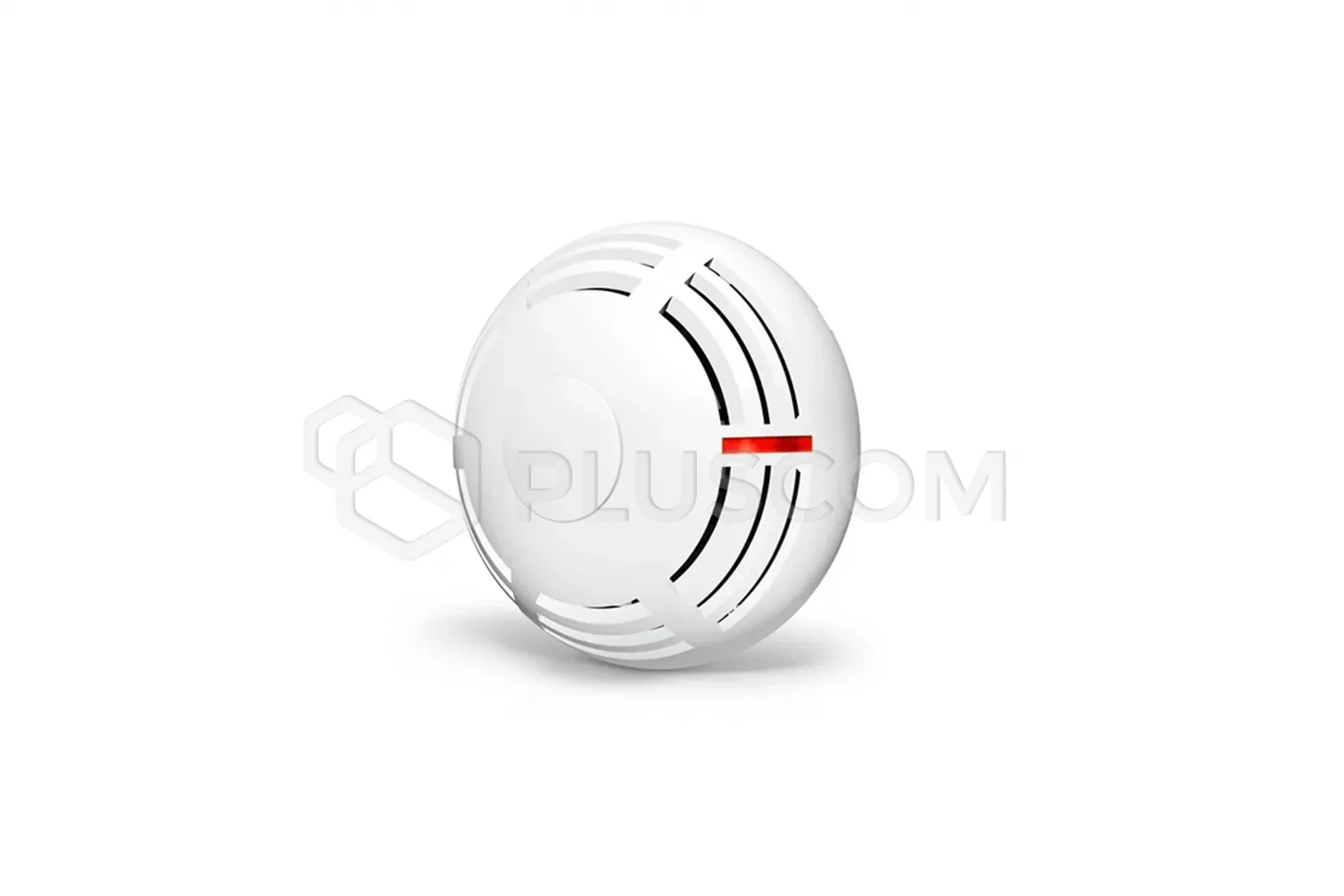

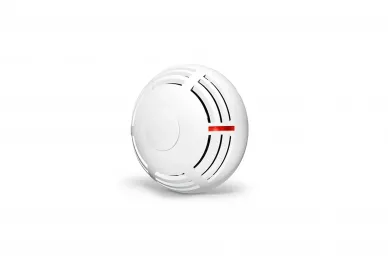

Satel DRP-100 Point Optical Smoke Detector

Satel DRP-100 Point Optical Smoke Detector

The point smoke detector is designed to detect visible smoke accompanying a developing fire.P-100 detector provides versatility in detecting various fire sources.
It is designed to work with CSP-104, CSP-108, CSP-204, and CSP-208 fire alarm control panels.

Features:

• Unique Swirl chamber for accelerated smoke detection
• detected test fires: TF-2 to TF-5 according to EN54-7 and TF-1 and TF-8 according to ISO/TS 7240-9:2006,
• Precision stainless steel filter
• Fault indication - contamination of the measuring chamber
• Easy installation of the detector in the DB-100 base
• Option to connect an external alarm indicator

An optical method is used to detect visible smoke. When the smoke concentration in the optical chamber exceeds a certain threshold, the detector will sound an alarm. The detector automatically compensates for gradual changes in the optical chamber caused by dust accumulation. In the case of the DMP-100 multi-sensor detector, the smoke sensor's operating parameters are modified depending on temperature changes detected by the thermal sensor (thermistor).
An alarm is signaled by a continuously lit red LED, making it easier to locate the detector that triggered the alarm. If the detector is mounted in a difficult-to-access location and the LED is invisible, an indicator light can be connected to the detector and mounted in a visible location.

TECHNICAL DATA:

• Operating temperature range: -25...+50 °C
• Minimum static alarm temperature: 54 °C
• Maximum static alarm temperature: 65 °C
• Power supply voltage: 10.5...26 V DC
• Current consumption in quiescent mode: 0.03mA
• Current consumption in alarm mode: 23 mA
• Maximum humidity: 93±3%
• Class according to EN 54-5 (thermal sensor): A1R
• Housing dimensions: ø108 x 42 mm
• Weight: 94 g
