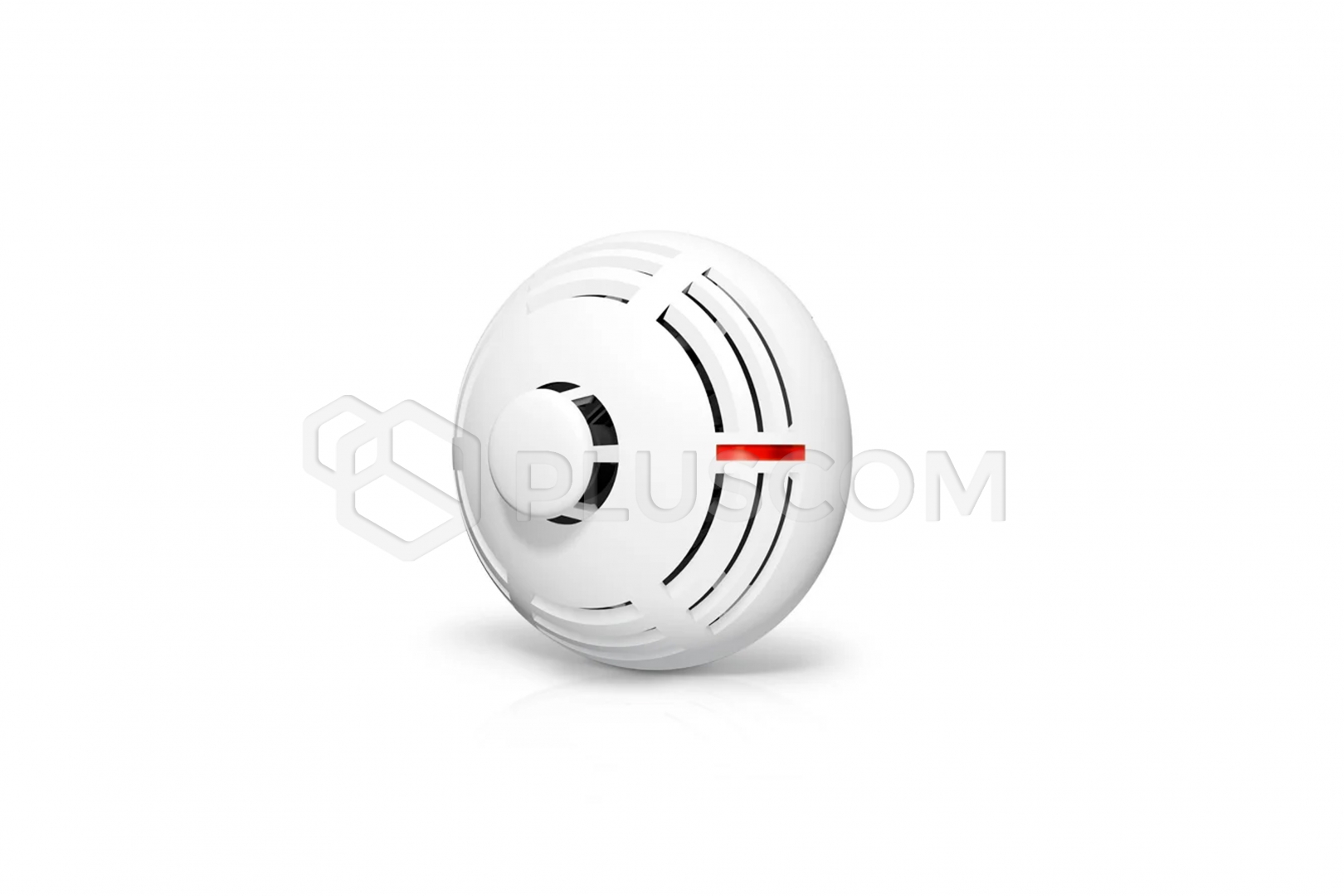

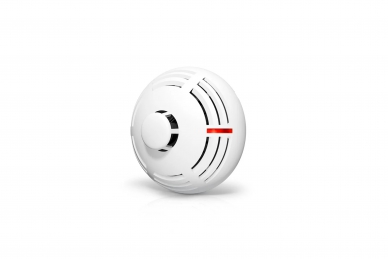

Satel DMP-100 Point Multi-Sensor Smoke and Heat Detector
This point-based multi-sensor detector combines the functionality of detecting
visible smoke with the detection of rapid increases and temperature exceedances
in a single device.
Thanks to its combined detection technology, the DMP-100
detector provides versatility in detecting various fire sources.
It is designed to work with CSP-104, CSP-108, CSP-204, and CSP-208 fire alarm
control panels.
FEATURES:
- Unique Swirl chamber for accelerated smoke detection
- Detected test fires: TF-1 to TF-5 according to EN54-7 and TF-1, TF-6, and
TF-8 according to ISO/TS 7240-9:2006
- Thermal sensor with A1R characteristics according to EN54-5
- Precision stainless steel filter
- Fault indication - contamination of the measuring chamber
- Easy installation of the detector in the DB-100 base
- Option to connect an external alarm indicator
An optical method is used to detect visible smoke. When the smoke
concentration in the optical chamber exceeds a certain threshold, the detector
will sound an alarm.
The detector automatically compensates for gradual changes
in the optical chamber caused by dust accumulation.
In the case of the DMP-100
multi-sensor detector, the smoke sensor's operating parameters are modified
depending on temperature changes detected by the thermal sensor (thermistor).
An alarm is signaled by a continuously lit red LED, making it easier to locate
the detector that triggered the alarm. If the detector is mounted in a
difficult-to-access location and the LED is invisible, an indicator light can
be connected to the detector and mounted in a visible location.
Technical data:
- Operating temperature range: -25...+50 °C
- Minimum static alarm temperature: 54 °C
- Maximum static alarm temperature: 65 °C
- Power supply voltage: 10.5...26 V DC
- Current consumption in quiescent mode: 0.04 mA
- Current consumption in alarm mode: 23 mA
- Maximum humidity: 93±3%
- Class according to EN 54-5 (thermal sensor): A1R
- Housing dimensions: ø108 x 49 mm
- Weight: 94 g
