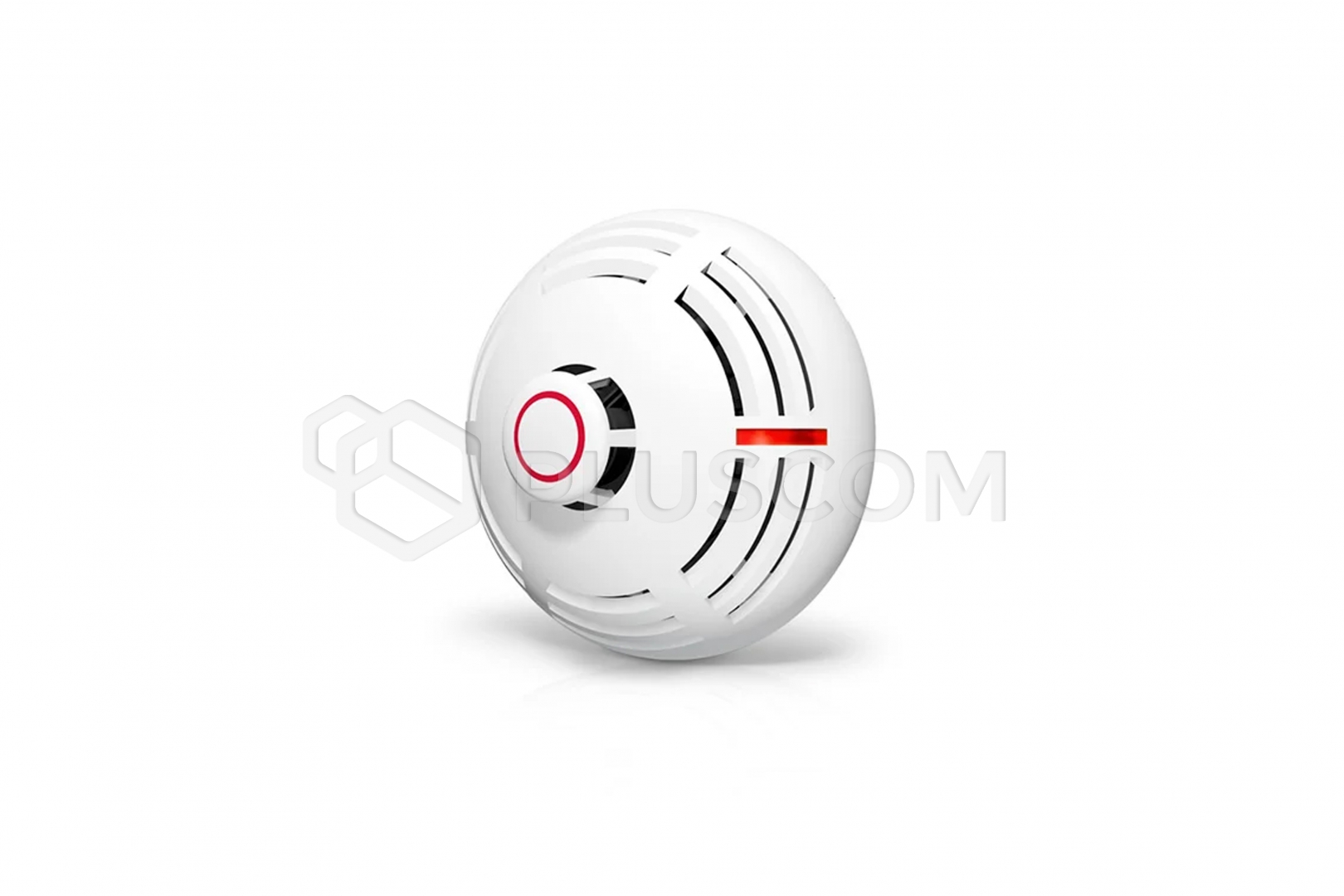

Satel DCP-100 Class A1R Point Heat Detector

Satel DCP-100 Point Heat Detector, Class A1R

The point heat detector is designed to detect rapid temperature increases or exceeding temperature limits resulting from a developing fire.
It is designed to work with CSP-104, CSP-108, CSP-204, and CSP-208 fire alarm control panels.

Features:

• Thermal sensor complies with the EN 54-5 standard
• Red LED for visual indication
• Installation in a DB-100 socket
• Option to connect an activation indicator

The thermal sensor operates in accordance with Class A1R requirements (EN 54-5). The sensor will sound an alarm when a specific temperature threshold (54°C – 65°C) is exceeded or when the temperature rises too rapidly.
The alarm is signaled by a continuously lit red LED, making it easier to locate the detector that triggered the alarm. If the sensor is mounted in a difficult-to-access location and the LED is not visible, an indicator can be connected to the sensor and mounted in a visible location.

TECHNICAL DATA:

• Operating temperature range: -25...+50 °C
• Minimum static alarm temperature: 54 °C
• Maximum static alarm temperature: 65 °C
• Power supply voltage: 10.5...26 V DC
• Current consumption in quiescent mode: 0.022 mA
• Current consumption in alarm mode: 23 mA
• Maximum humidity: 93±3%
• Class according to EN 54-5 (thermal sensor): A1R
• Housing dimensions: ø108 x 49 mm
• Weight: 94 g
