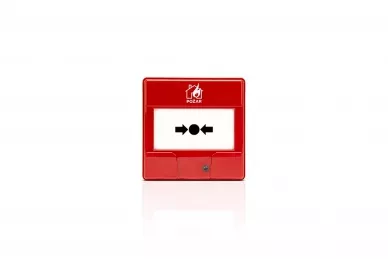

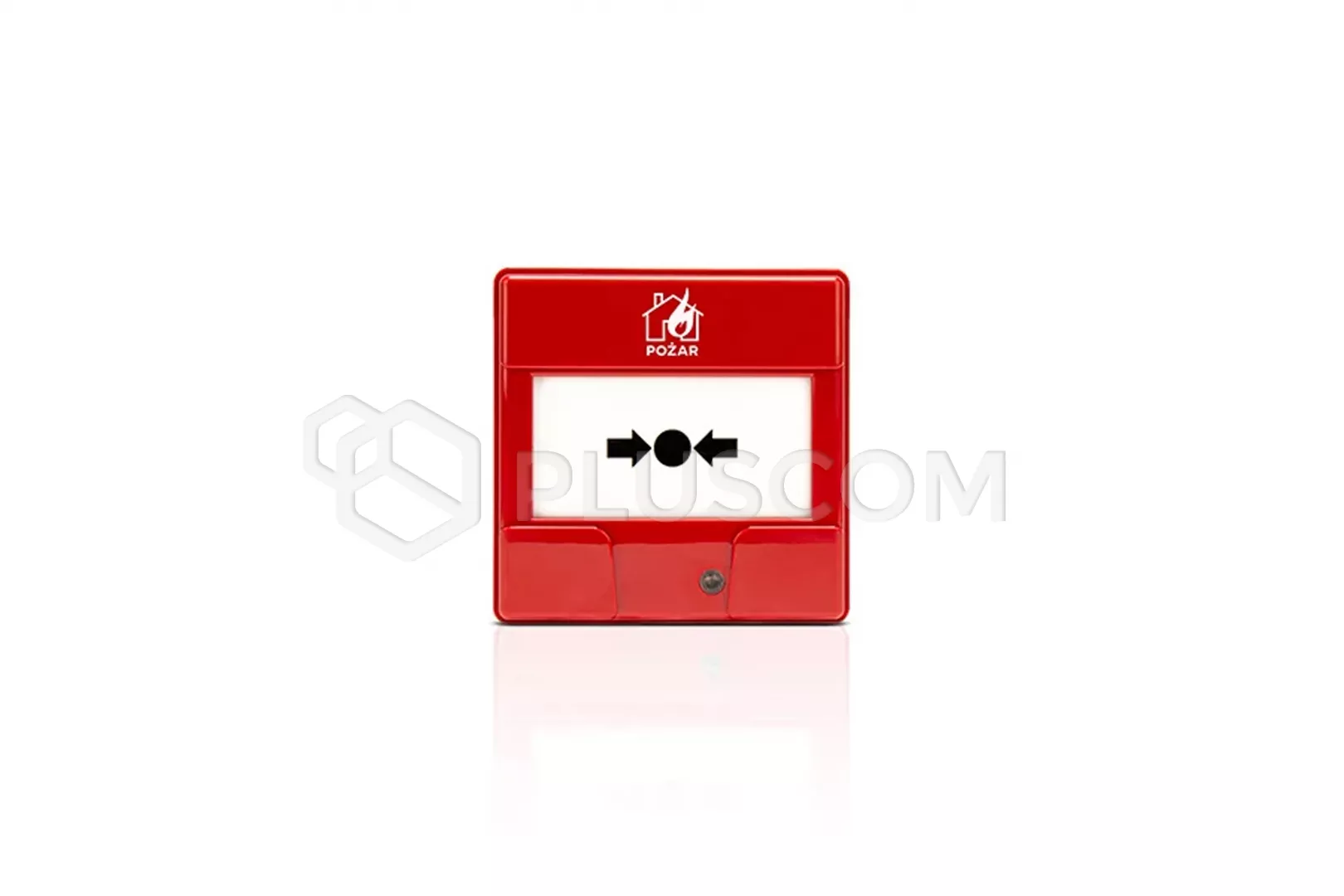

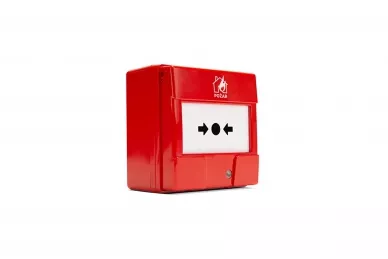

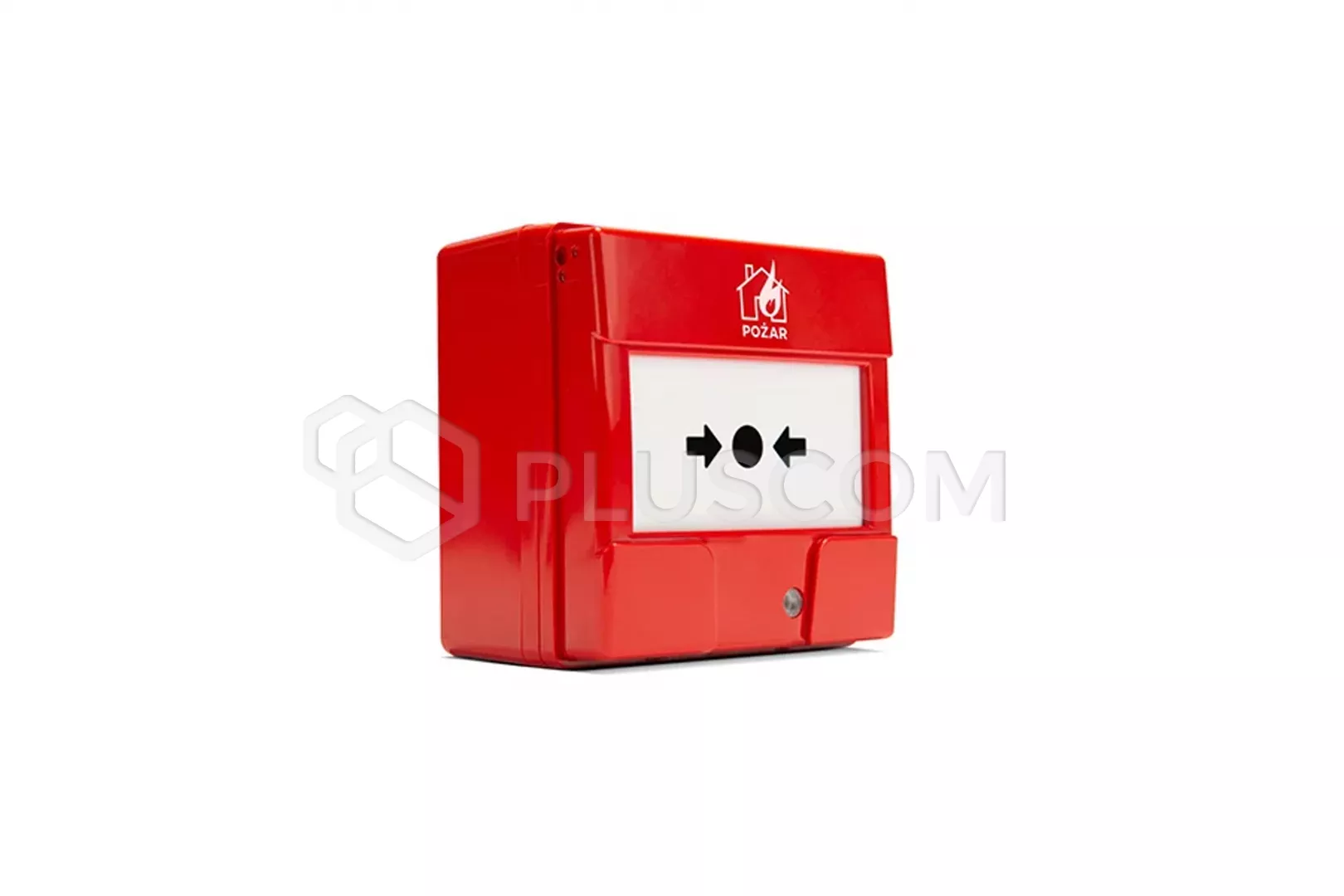

Satel ROP-110/PL Conventional manual call point

SATEL ROP-110/PL - conventional manual call point for applications internal

In case of noticing a fire, the call points make it possible to trigger the alarm manually. They cooperate with fire alarm control panels CSP-104, CSP-108, CSP-204, CSP-208.

PROPERTIES

• possibility to install a plastic glass (for multiple use)
• ROP-KEY-U (included) to:
• • testing
  • reset
• Red LED indicates activation of the manual call point fire

Installations should be carried out in a clearly visible and easily accessible place place.

Technical data:

• supply voltage: 9...30V DC
• current consumption in quiescent mode: 0 mA
• current consumption in alarm state: 5 mA
• operating temperature range: -10°C...+55°C
• maximum humidity: 95%
• dimensions: 87 x 87 x 47 mm
• Weight: 139g

The ROP-110/PL manual call point meets the essential requirements requirements of Regulations and Directives of the European Union:

• CPR 305/2011 Regulation (EU) of the European Parliament and of the Council of 9 March 2011 laying down harmonized conditions for placing products on the market construction products and repealing Council Directive 89/106/EEC on construction products
• EMC 2014/30/EU regarding electromagnetic compatibility
• LVD 2014/35/EU on low-voltage electrical equipment

The Certification Body of CNBOP-PIB in Józefów issued a manual warning device type ROP-110/PL Certificate of Constancy of Performance construction product 1438-CPR-0878, confirming compliance with the requirements of the standards EN 54-11:2001+A1:2005.
