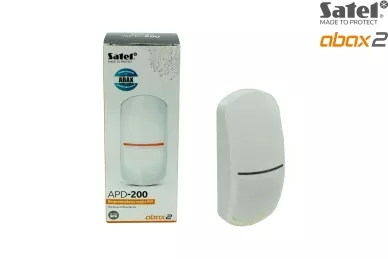

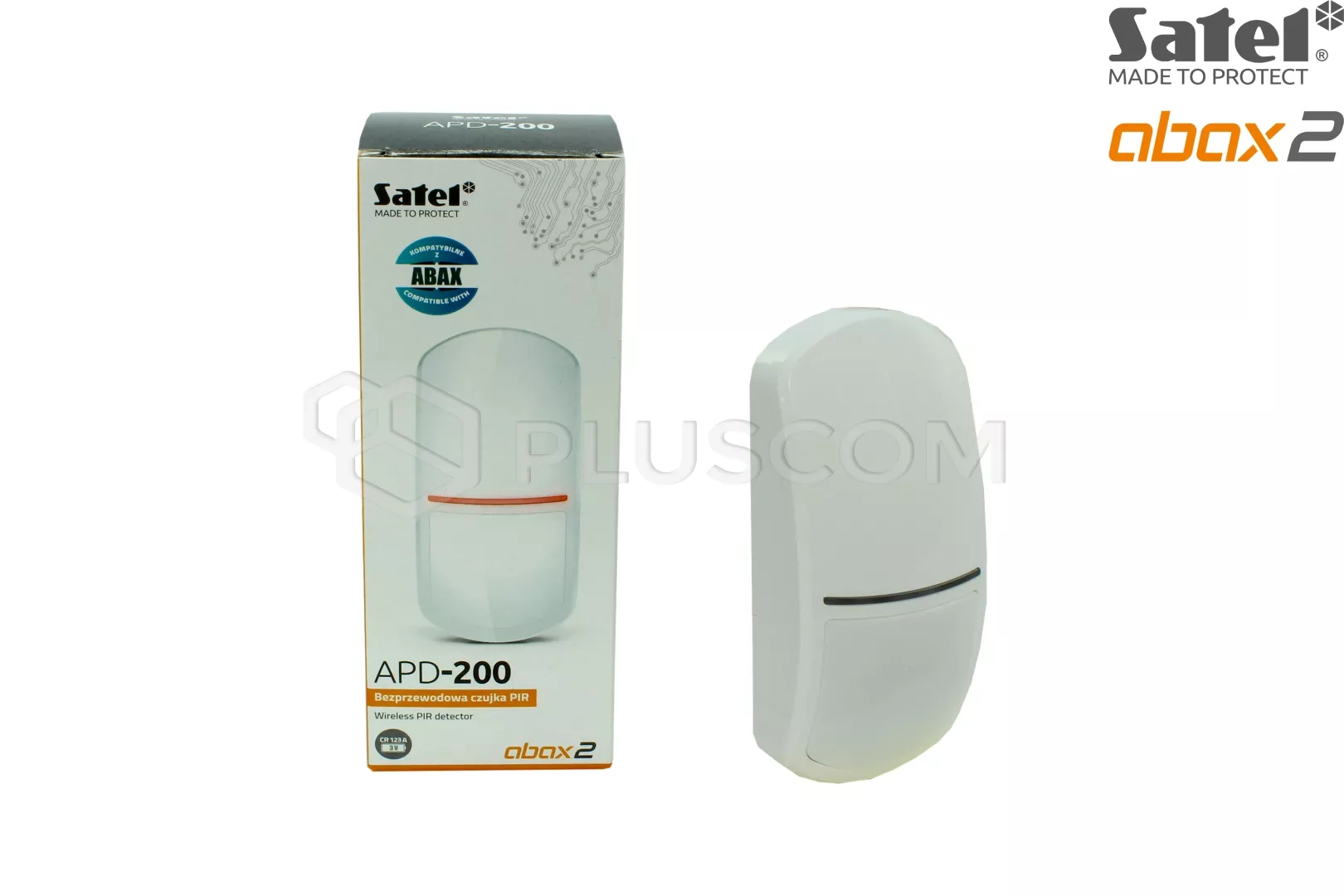

Satel APD-200 Wireless PIR detector ABAX 2

Satel APD-200 Wireless Passive Infrared Detector ABAX 2

The APD-200 detector is designed to detect movement in the protected area. A double pyroelement, advanced detection algorithms and temperature compensation are used to detect movement to minimize the risk of false alarms. The detector operates within the two-way wireless ABAX 2 system. It works with the following controllers:

• ABAX 2
• ACU-220, ACU-280 controller
• ARU-200 retransmitter


• ABAX
• ACU-120, ACU-270 controller (software version 5.04 or newer)
• ARU-100 retransmitter (software version 2.02 or newer)
• INTEGRA 128-WRL control panel (software version 1.19 or newer and software version of the processor supporting the ABAX system 3.10 or newer)


FEATURES:

• double pyroelement
• digital motion detection algorithm
• digital ambient temperature compensation
• possibility to enable/disable approach zone control


• built-in temperature sensor (measuring range -10°C...55°C)
• possibility to replace the lens with a curtain or long-range range

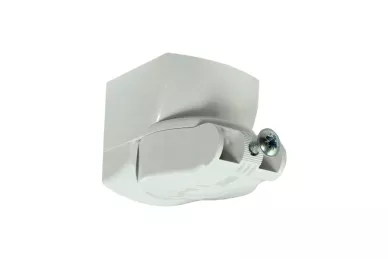

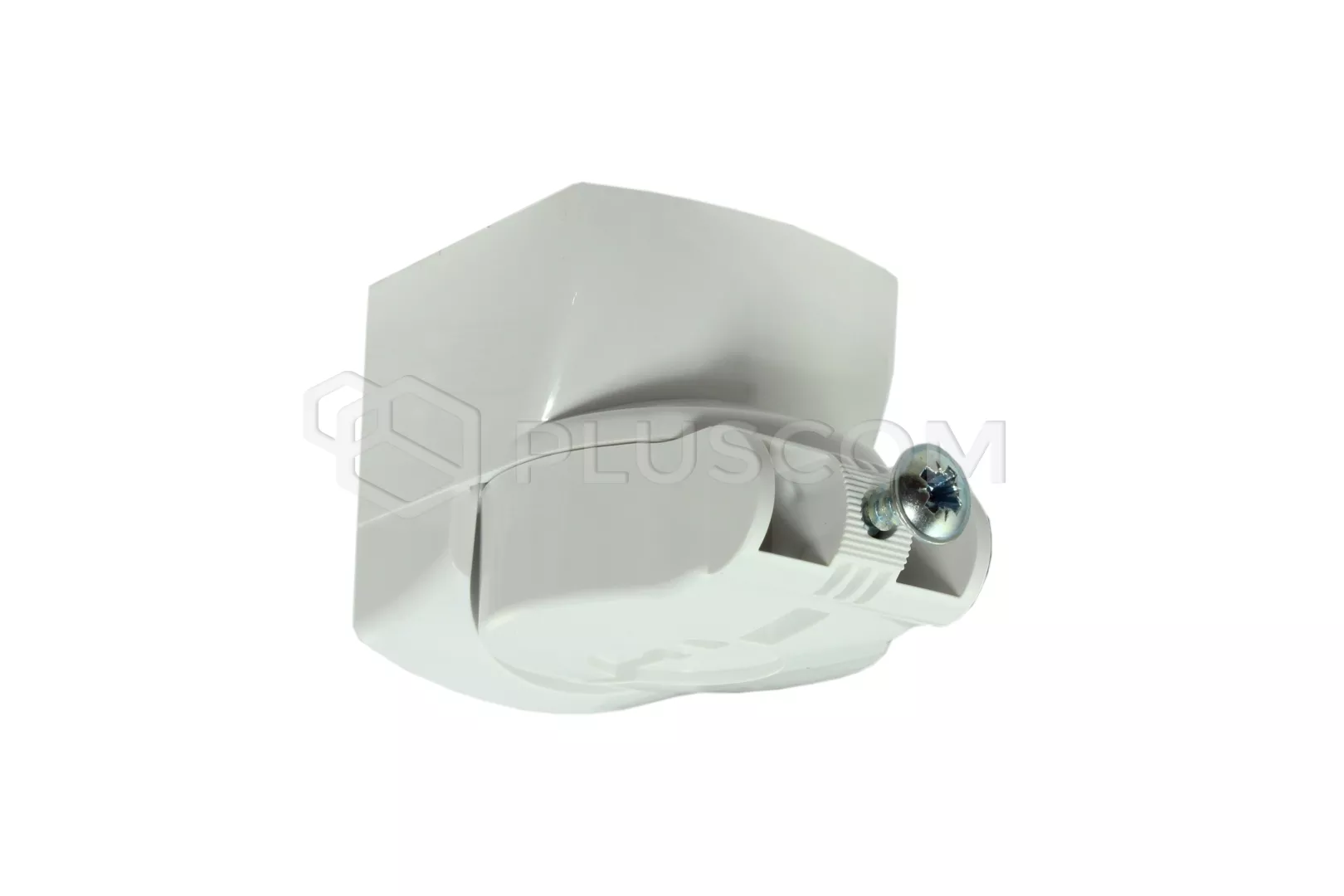

• adjustable mounting bracket included
• sabotage protection against opening the housing or tearing it off the surface


TECHNICAL PARAMETERS:

• operating frequency: 868MHz - 868.6MHz
• radio communication range:
• ABAX 2
• • ACU-220 - up to 2000m in open terrain
  • ACU-280 - up to 1600m in open terrain
• ABAX - up to 500m in open terrain


• temperature measurement range: -10°C...55°C (accuracy +/- 1°)
• detectable movement speed: 0.3 - 3m/s

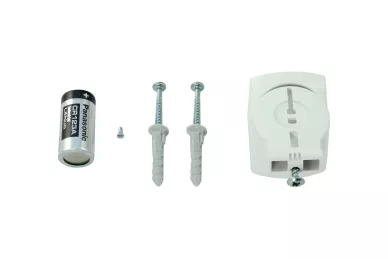

• CR123A 3V battery, battery life up to 2 years
• current consumption in standby mode: 70uA
• maximum current consumption: 12mA
• time start-up: 35s
• recommended mounting height: 2-2.4m
• detection area: 15x24m 90°
• operating temperature range: -10°C...55°C
• maximum humidity: 93+/-3%
• dimensions: 62x137x42mm
• weight: 132g


• Standards met: EN50131-1, EN50130-4, EN50130-5
• Protection class according to EN50131-2-2 (mounting directly to the wall): Grade 2
• Environmental class according to EN50130-5: II
