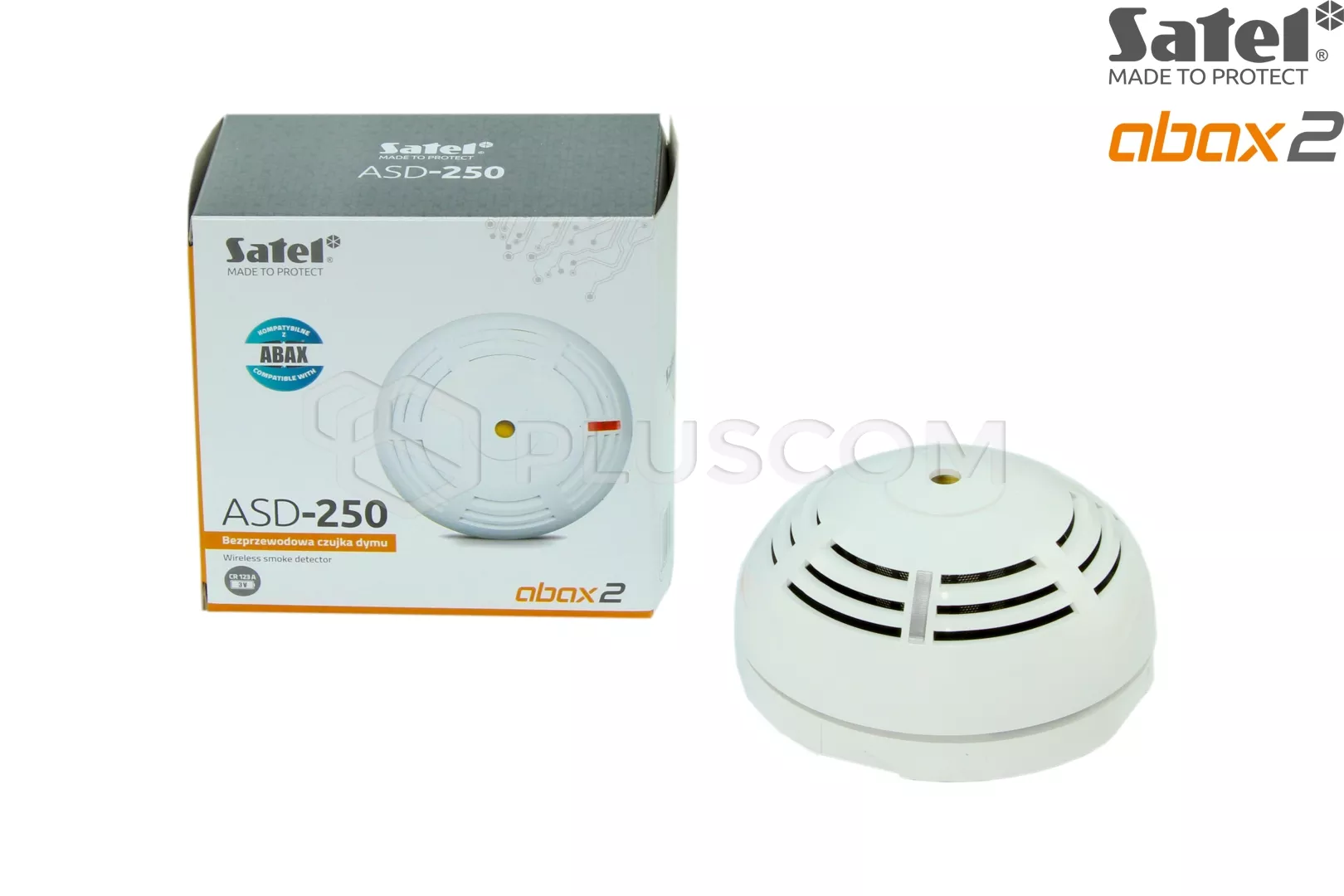

Satel ASD-250 Wireless smoke detector ABAX 2

ASD-250 Wireless smoke detector, autonomous or in the ABAX 2 / ABAX system

• visible smoke detection
• for installation inside buildings
• autonomous operation in accordance with EN 14604
• operation within the ABAX 2 / ABAX system


The detector enables detection of an early stage of fire when visible smoke appears. The unique design of the Swirl chamber accelerates smoke detection. It is protected by a precise stainless steel Hexamesh filter that protects against the ingress of contaminants into the chamber. The cleanliness of the chamber is automatically controlled and gradual changes in the optical chamber caused by dust deposition are automatically compensated.

The ASD-250 detector is supported by:

• ABAX 2 ACU-220, ACU-280 system controllers and the ARU-200 retransmitter
• ABAX ACU-120, ACU-280 system controllers, the INTEGRA 128-WRL control panel, and the ARU-100 retransmitter


To fully utilize the detector's capabilities, it is recommended that it work with ABAX 2 controllers. Here is a list of features and functions available in the ABAX 2 system.

• increased radio communication range
• • 2000m with the ACU-220 controller (in open space)
  • 1600m with ACU-280 controller (in open space)

• ECO option significantly extends battery life
• secure encrypted (AES standard) radio communication
• reliable - communication using 4 channels, automatic selection of the channel with the least interference
• remote configuration and update of the detector software
