Satel APMD-250 Wireless PIR+MW detector ABAX 2

97,90 EUR including 19.00% VAT
In stock. Ships today!
Delivery time: 3 - 5 days
Product code: #19488
Manufacturer: Satel
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
DURACELL Lithum battery CR123A Satel ACU-220 ABAX 2 Wireless system controller Satel ACU-280 ABAX 2 Wireless system controller Satel LR-CL Housing cover with long-range Fresnel lens Satel CT-CL Housing cover with a curtain lens

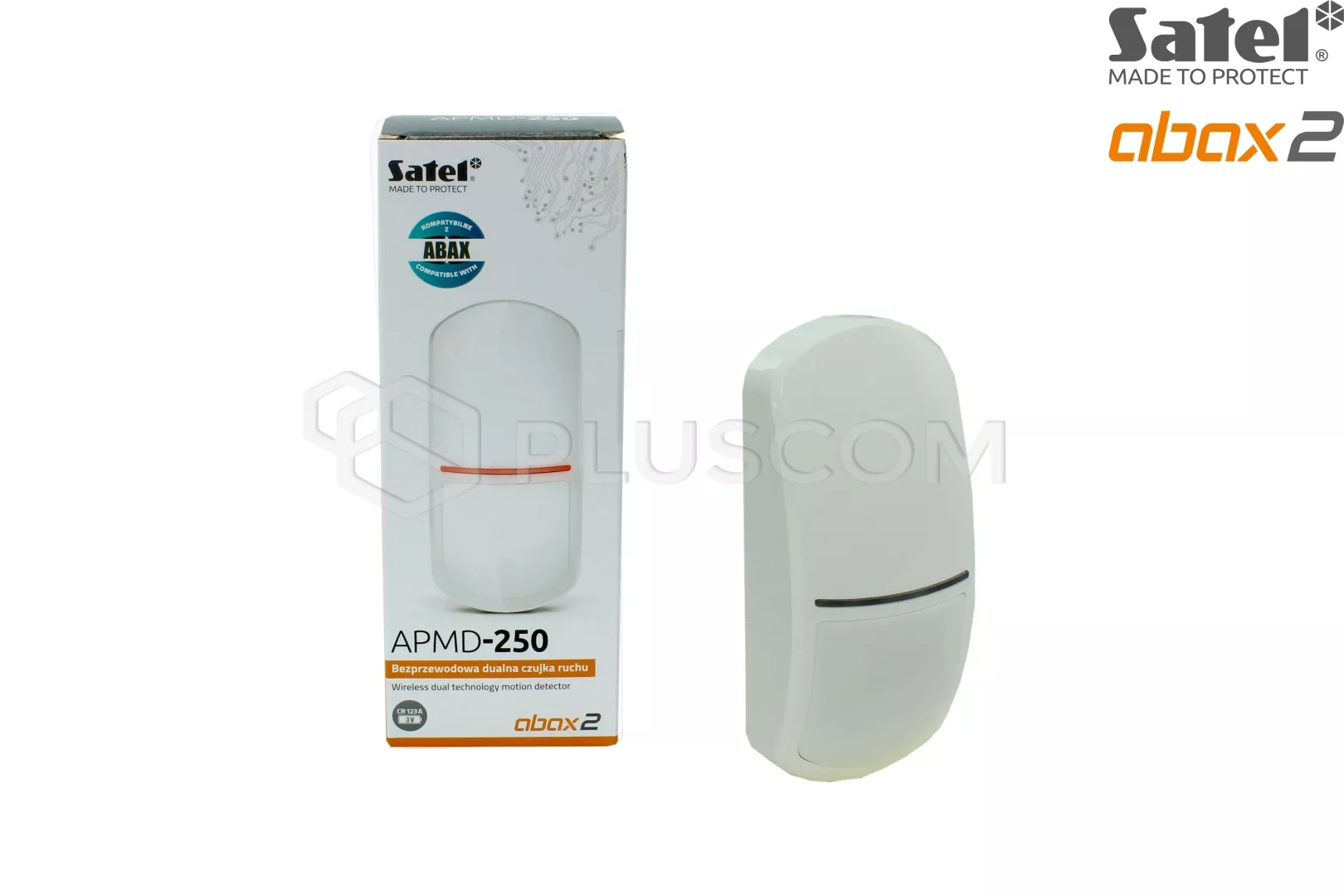

Satel APMD-250 Wireless Dual Motion Detector ABAX 2

The APMD-250 detector is designed to detect movement in a protected area. A dual PIR pyroelement and an MW microwave sensor are used to detect movement. Advanced detection algorithms and temperature compensation minimize the risk of false alarms. The detector operates within the two-way wireless ABAX 2 system. It works with the following controllers:
  • ABAX 2
  • ACU-220, ACU-280 controller
  • ARU-200 retransmitter
  • ABAX
  • ACU-120, ACU-270 controller (software version 5.04 or newer)
  • ARU-100 retransmitter (software version 2.02 or newer)
  • INTEGRA 128-WRL control panel (software version 1.19 or newer and software version of the processor supporting the ABAX system 3.10 or newer)
Satel APMD-250 Wireless PIR+MW detector ABAX 2

Satel APMD-250 Wireless PIR+MW detector ABAX 2

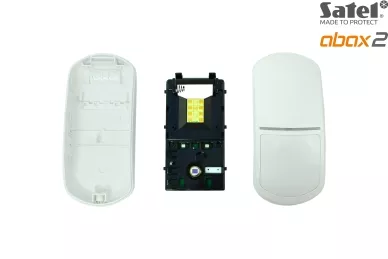

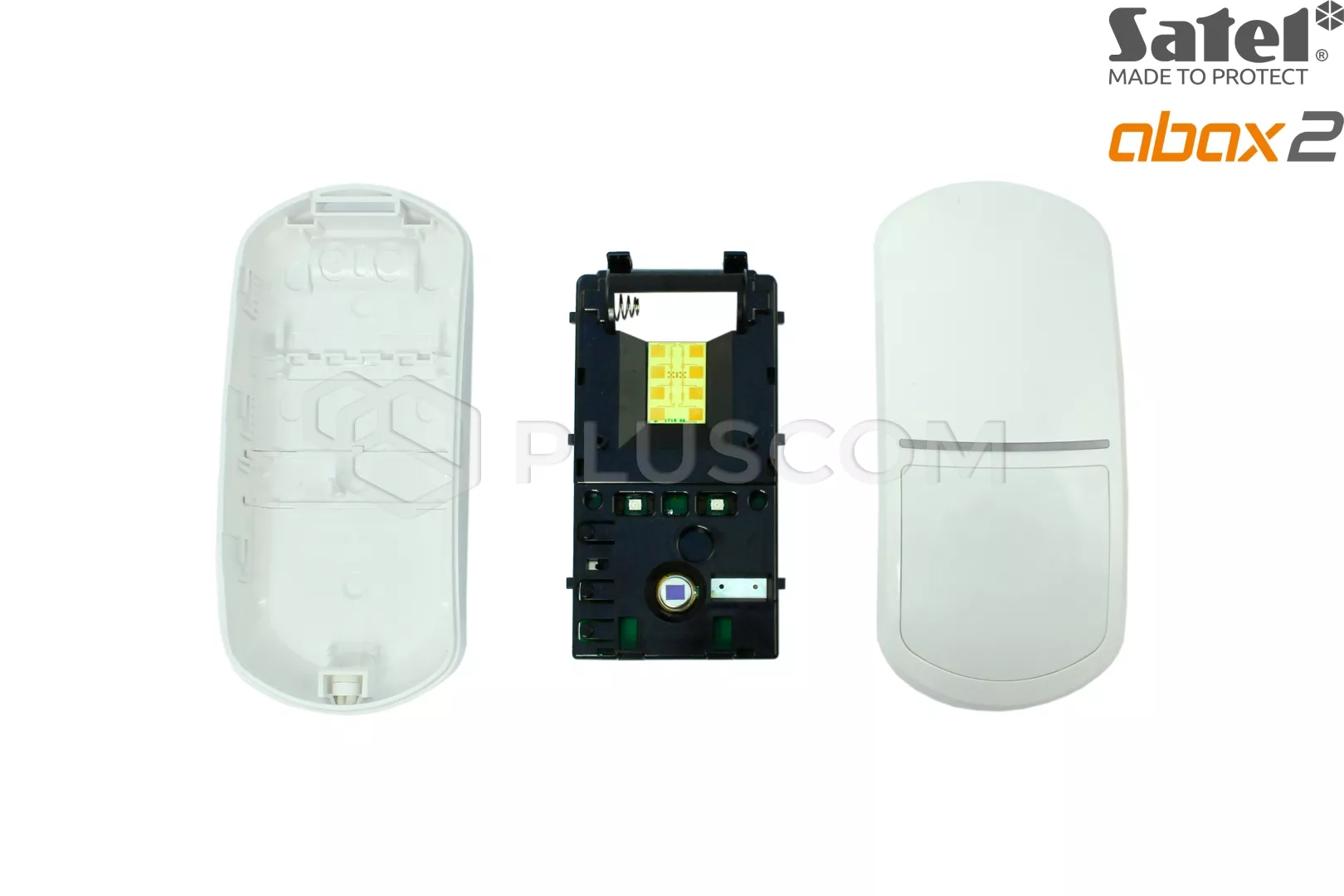

Interior of the detector:

Interior of the detector:

FEATURES:
  • double pyroelement PIR sensor
  • MW microwave sensor
  • independent adjustable detection sensitivity for both sensors
  • possibility of separate testing of sensors
  • digital motion detection algorithm
  • digital ambient temperature compensation
  • possibility of enabling / disabling approach zone control
  • built-in temperature sensor (measuring range -10°C...55°C)
  • possibility to replace the lens with a curtain or long-range lens
  • adjustable mounting bracket
  • included in the set
  • sabotage protection against opening the housing or tearing it off the surface
TECHNICAL PARAMETERS:
  • operating frequency: 868MHz - 868.6MHz
  • radio communication range:
  • ABAX 2
    • ACU-220 - up to 2000m in open terrain
    • ACU-280 - up to 1600m in open terrain
  • ABAX - up to 500m in open terrain
  • Microwave frequency 24.125GHz
  • Temperature measurement range: -10°C...55°C (accuracy +/- 1°)
  • Detectable movement speed: 0.3 - 3m/s
  • CR123A 3V battery, battery life up to 2 years
  • standby current consumption: 75uA
  • maximum current consumption: 13mA
  • start-up time: 40s
  • recommended mounting height: 2-2.4m
  • detection area: 15x24m 90°
  • operating temperature range: -10°C...55°C
  • maximum humidity: 93+/-3%
  • dimensions: 62x137x42mm
  • weight: 152g
  • Standards met: EN50131-1, EN50130-4, EN50130-5
  • Protection level according to EN50131-2-2 (direct wall mounting): Grade 2
  • Environmental class according to EN50130-5: II

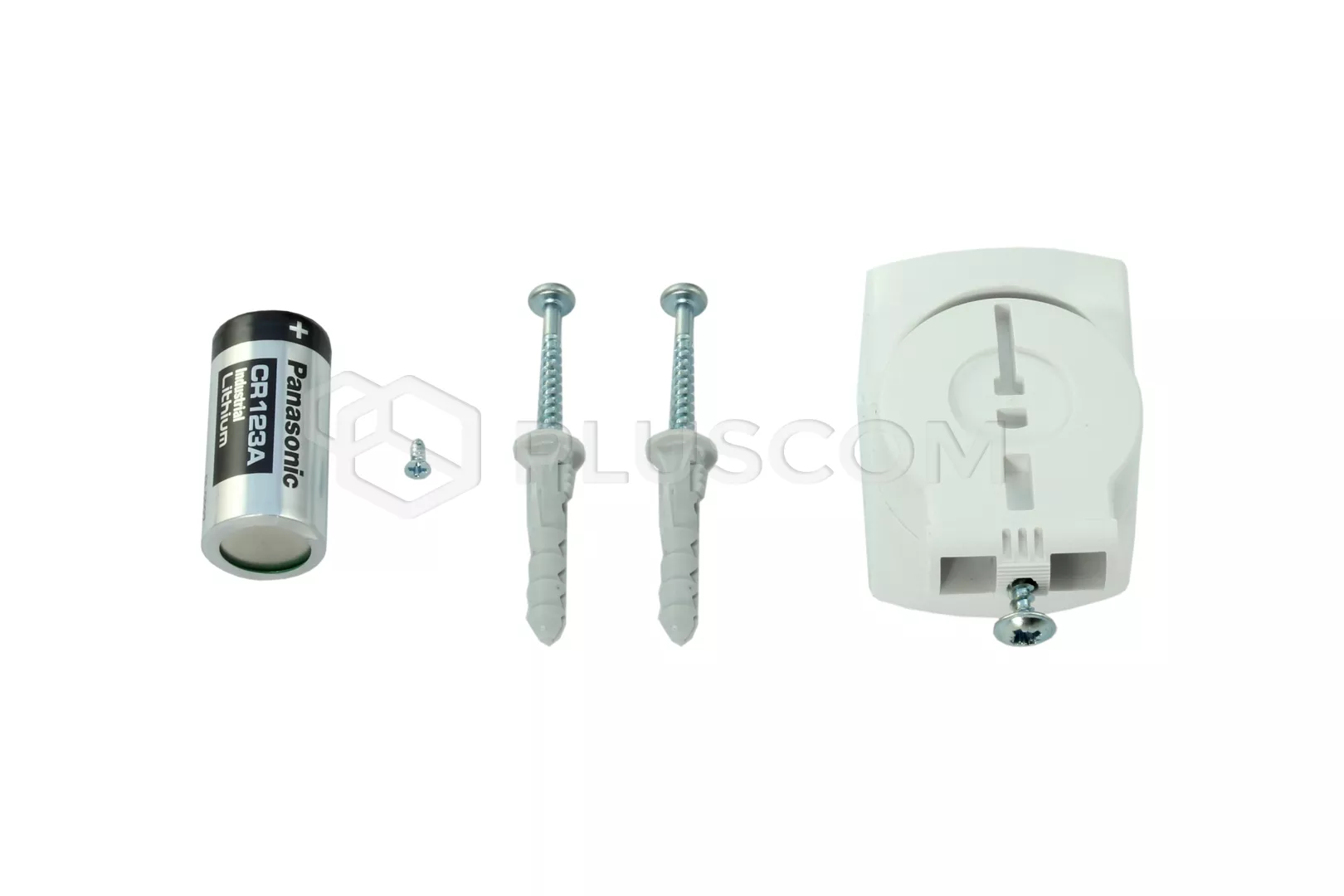

Accessories:

Accessories:

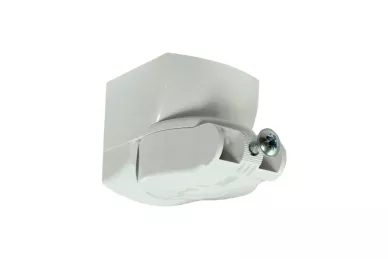

Bracket:

Bracket:
