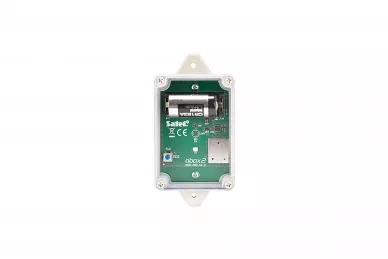

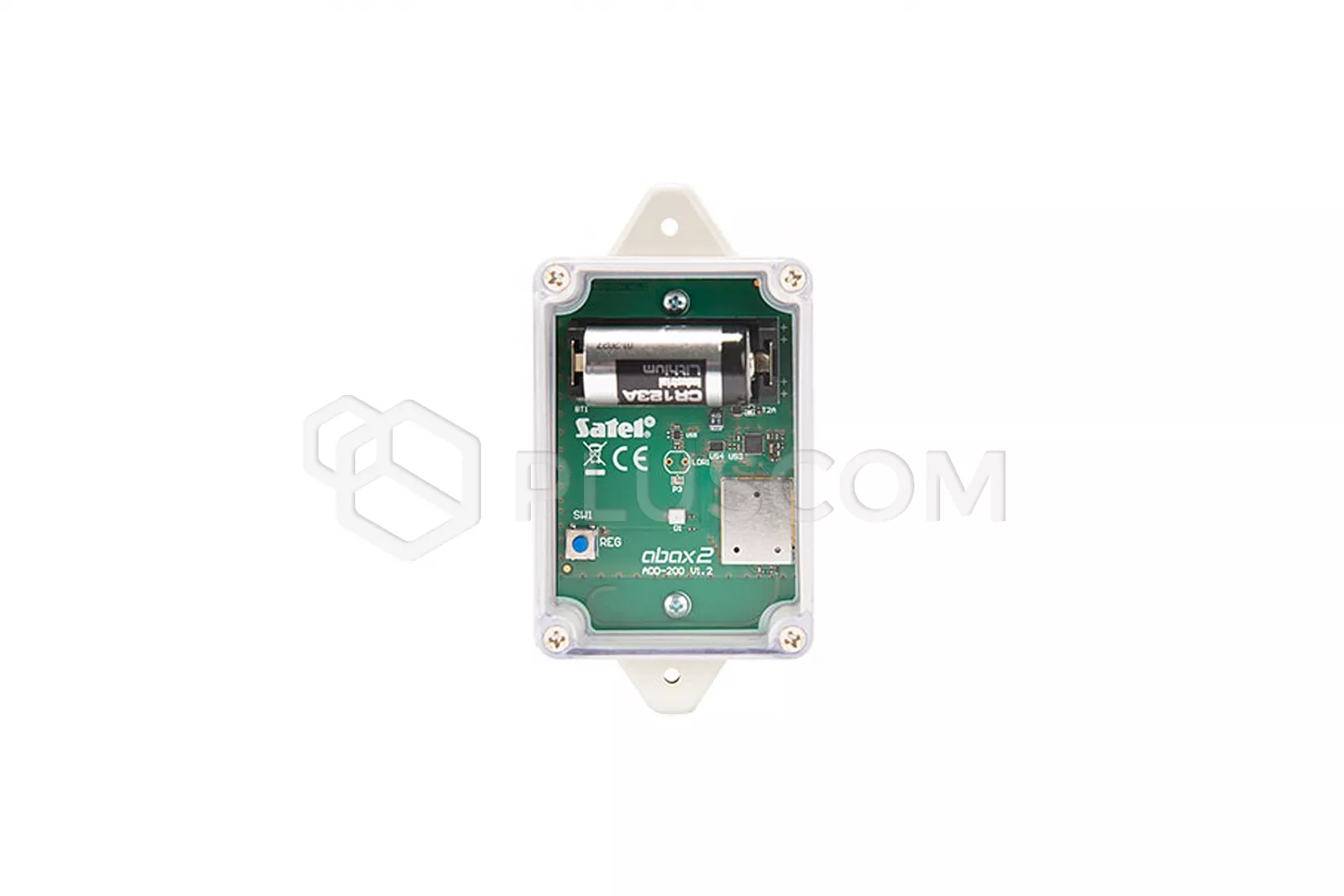

Satel ADD-200 Wireless outdoor dusk and temperature detector

Satel ADD-200 Wireless outdoor dusk and temperature detector

The ADD-200 detector detects changes of light intensity (dusk sensor) as well as changes of temperature (temperature sensor). It is designed to work within the ABAX 2 two-way wireless system. The detector is supported by:

• ACU-220 / ACU-280 controller
• ARU-200 repeater

Features

• Dusk sensor:
• • light intensity measurement range from 2 lx to 250 lx
  • possibility to select one of 16 detection thresholds
  • immunity to short and accidental changes of light intensity
• Temperature sensor:
• • temperature measurement range from -30°C to +70°C
  • programmable temperature threshold
• Encrypted two-way radio communication in the 868 MHz frequency band (AES standard)
• Transmission channel diversity – automatic selection of the one of 4 channels that will enable transmission without interference with other signals in the 868 MHz frequency band
• Remote update of detector firmware
• Remote configuration
• LED indicator
• “ECO” option for longer battery life
• Battery status control
• Weatherproof enclosure of high mechanical strength

SPECYFICATIONS

• Operating frequency band - 868,0 MHz ÷ 868,6 MHz
• Radio communication range (in open area):
• • ACU-220 - up to 2000 m
  • ACU-280 - up to 1600 m
• Battery - CR123A 3 V
• Battery life expectancy - up to 2 years
• Light intensity measurement range - 2 lx...250 lx
• Temperature measurement range - -30°C...+70°C
• Temperature measurement accuracy - ±1°C
• Standby current consumption - 20 µA
• Maximum current consumption - 12 mA
• Warm-up period .u - 5 s
• Environmental class according to EN 50130-5 - III
• Operating temperature range - -30°C...+70°C
• Maximum humidity - 93±3%
• IP code - IP65
• Dimensons - 58 x 115 x 34 mm
• Weight - 95 g
