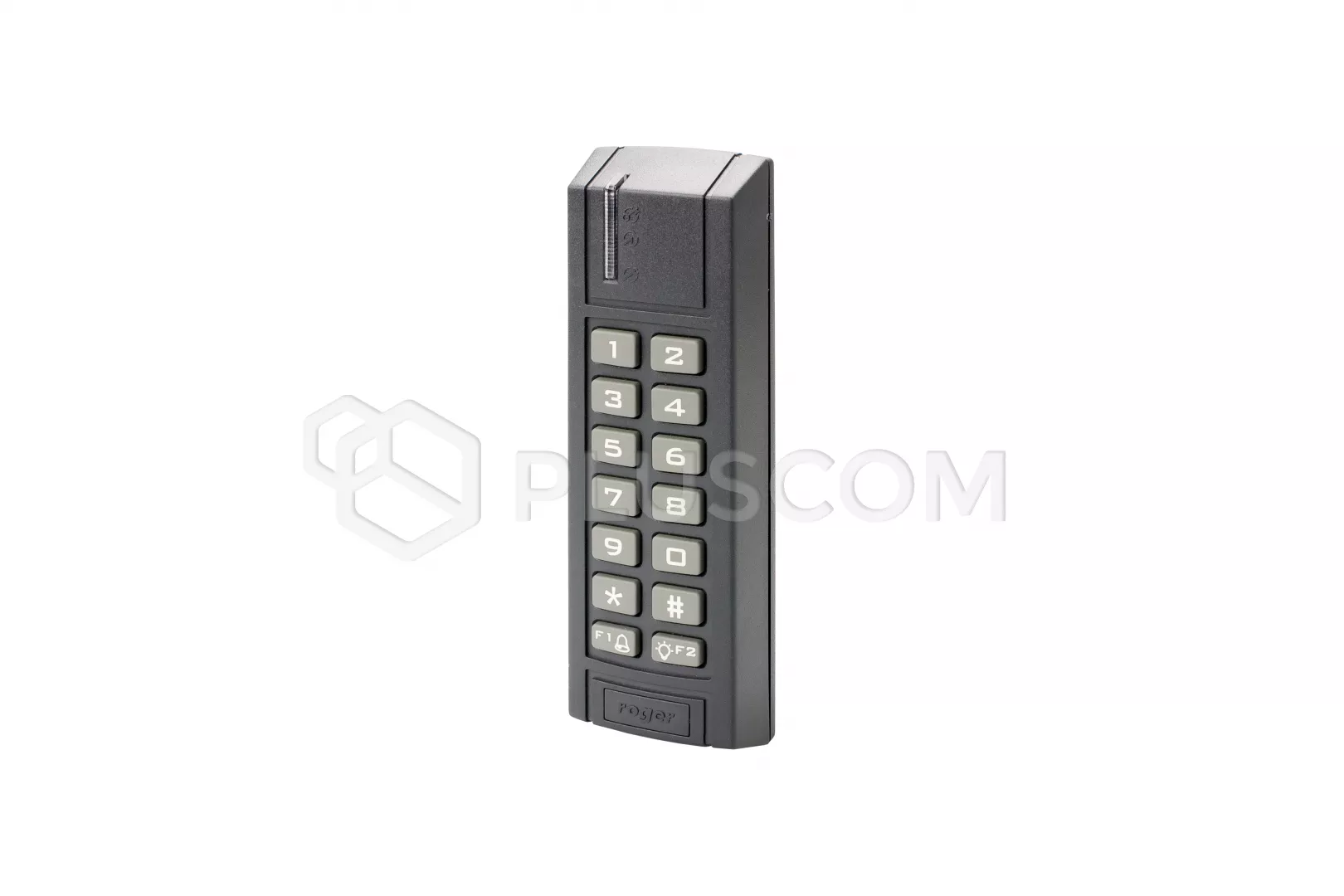

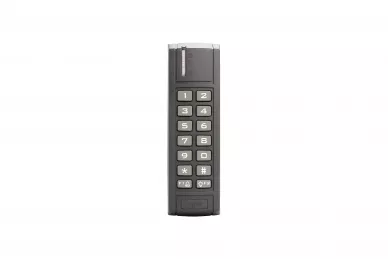

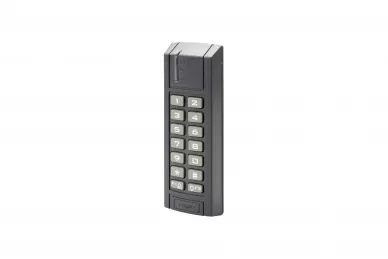

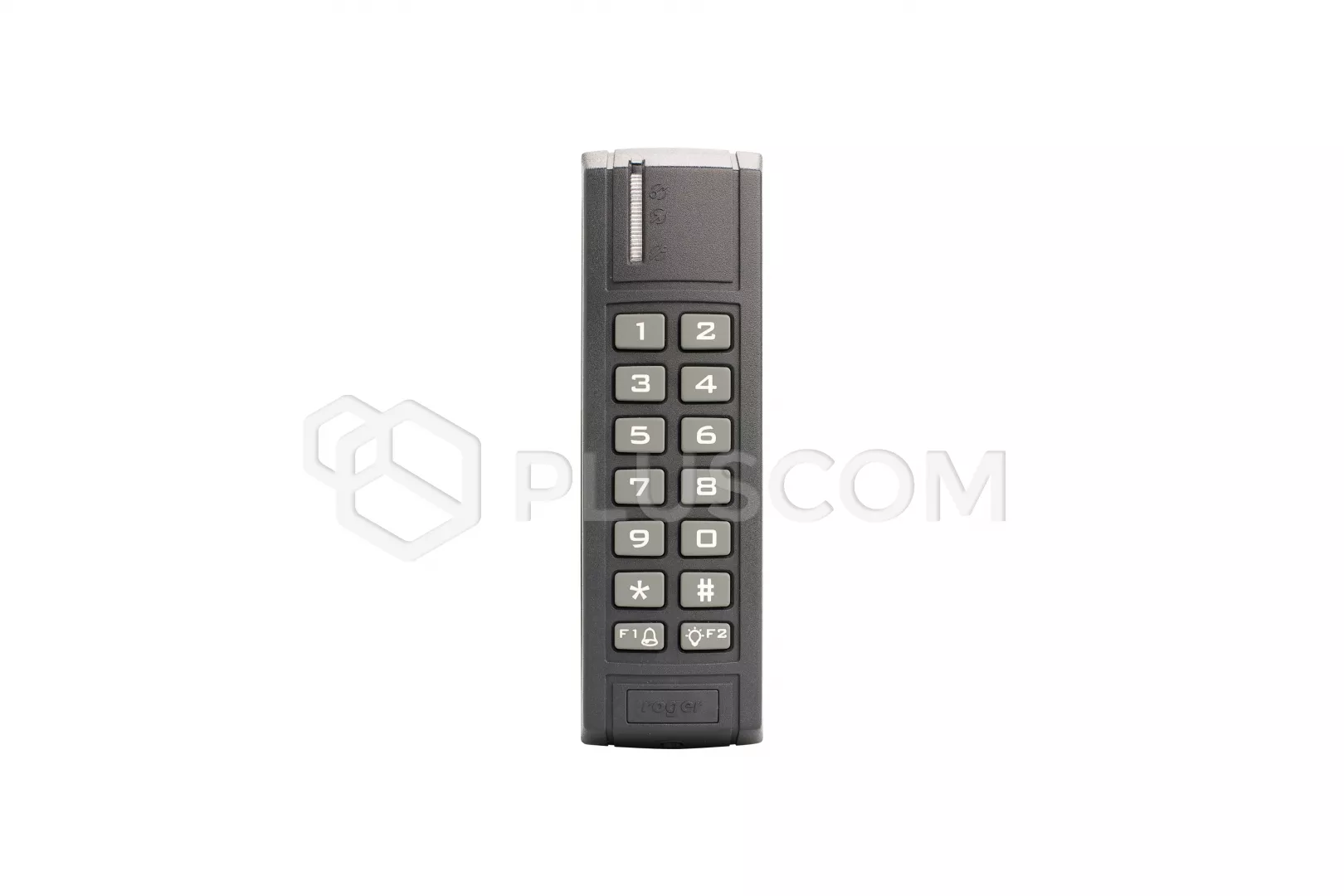

Roger PRT12MF-DES Outdoor proximity reader

Roger PRT12MF-DES Outdoor proximity reader with touch keypad

Proximity reader designed for use in access control systems with the highest level of security requirements. PRT12MF-DES can read numbers (SSN and MSN) stored in encrypted memory sectors of MIFARE Classic, MIFARE Plus and MIFARE DESFire EV1 proximity cards. Both data and communication protocols of such cards are protected by encryption algorithms AES128bit (MIFARE Plus) and DES, DES3, 3KDES (MIFARE DESFire EV1). Reader operate as a slave unit connected to access controller and is dedicated to read card number (and/or PIN) and transmit data to controller which makes final decision on system reaction.

Features

• ISO14443A RFID proximity cards:
• • MIFARE® ULTRALIGHT
  • MIFARE® Classic 1k and 4k
  • MIFARE® DESFire EV0 and EV1
  • MIFARE® Plus
• CSN and PCN reading for MIFARE cards
• RACS CLK/DTA output format
• Wiegand 26..66 bit output format
• Three LED indicators
• LEDs controlled by inputs (Wiegand mode)
• Buzzer with adjustable loudness
• Buzzer controlled by input (Wiegand mode)
• Adjustable keypad backlight
• Two function keys
• Tamper contact
• Programming from PC (RogerVDM software)
• 0.5m connection cable

READER CONFIGURATION
Readers can operate in various operating modes which determine the method of communication with controller. The mode and related output format can be configured with RogerVDM program (Windows) or within the procedure of manual programming of operating mode.


TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards:
• • 13.56MHz MIFARE Ultralight
  • MIFARE Classic
  • DESFire EV1
  • Plus
• average current consumption: 70mA
• read range:
• • up to 7 cm (for MIFARE Classic)
  • up to 5 cm (for MIFARE DESFire EV1, Plus)
• environment class: IV
• IP65
• working temperature: -25°C ~ +60°C
• weight: approx. 150g
• dimensions: 152.5x46x23mm
