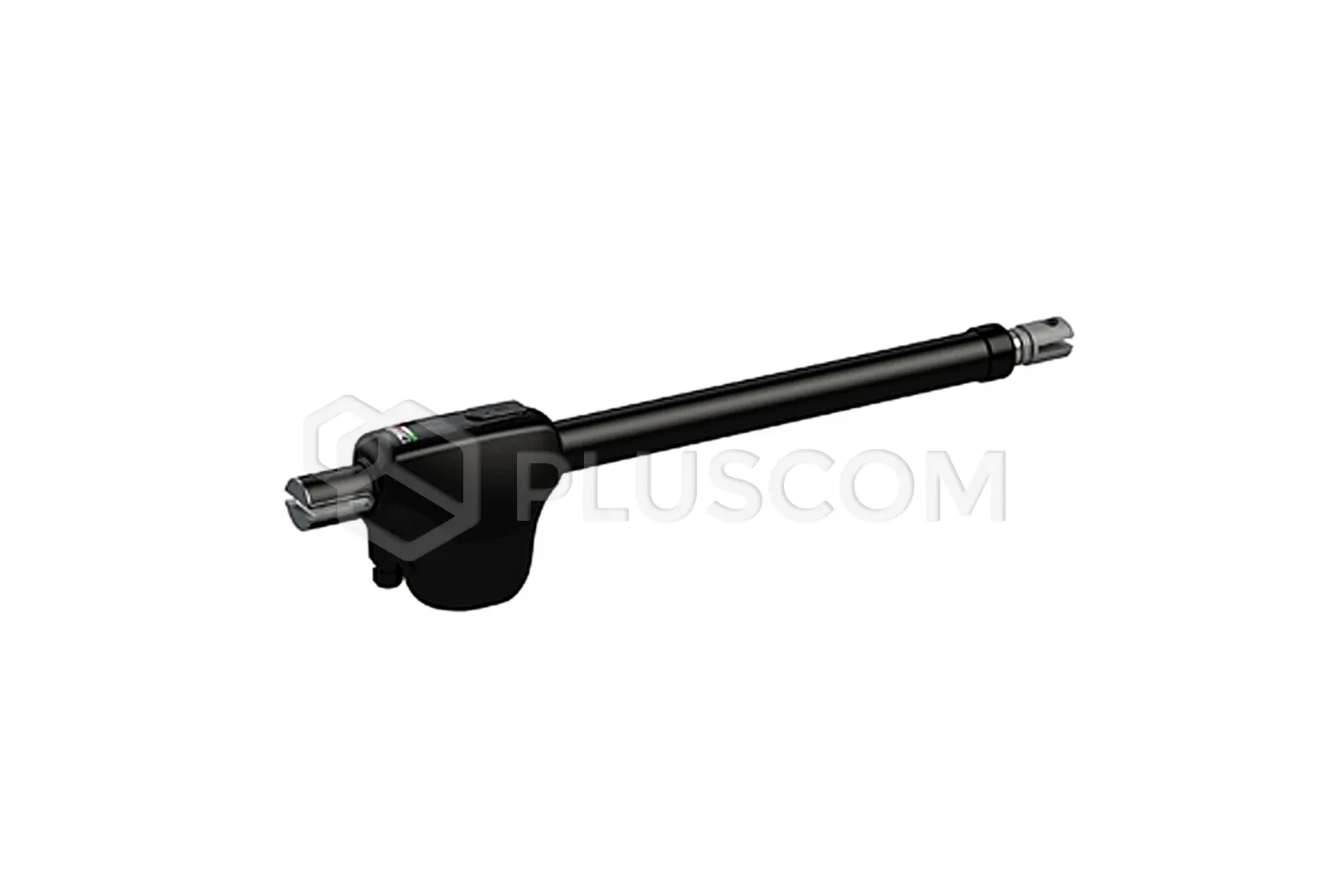

Roger Technology MONOS4/220 Drive with 230V motor

429,69 EUR including 23.00% VAT
Product code: #33289
Manufacturer: Roger Technology
  • Leaf length up to 4m
  • Weight up to 450kg
  • Engine power supply 230V
  • Intensity 30%
  • Adjustable pole mount and mounting bracket included
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology HT420 MONOS Actuator Piston Cover Roger Technology H70/200AC/BOX Control unit for 2 230V AC motors Roger Technology KT248 MONOS wing mounting bracket

Roger Technology MONOS4/220 Drive with 230V motor for swing gates up to 4m per wing


Drive with 230V motor, for swing gates with a maximum wing length of 4m, adjustable bracket for screwing to the post and a bracket for mounting to the wing.

FEATURES:

  • 230V AC motor
  • 30% intensity
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • High work culture
  • Screw pitch 400 mm

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC
  • Nominal power: 200 W
  • Force: 2400 N
  • Speed: 1.66 cm/s (24 s opening to 90°)
  • Stroke: 400 mm
  • Use frequency: 30%
  • Gear motor type: irreversible
  • Encoder: built-in optical
  • Protection class: IP 43
  • Motor thermal protection: 150°
  • Operating temperature: -20°C to +55°C
  • Dimensions: 823 x 178 x 111 mm
  • Weight: 8.5 kg
