Roger Technology SET H23/282/L SET LIGHT

1323,32 EUR including 23.00% VAT
Product code: #40572
Manufacturer: Roger Technology
  • Leaf length up to 2.8m
  • Leaf weight up to 300kg
  • Engine power supply 230V
  • Optical encoder
  • 2 x 2-channel remote controls T80/TX2, R90/F2ES photocells
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology LT338 Sliding Arm Roger Technology LT302 Short arm, articulated

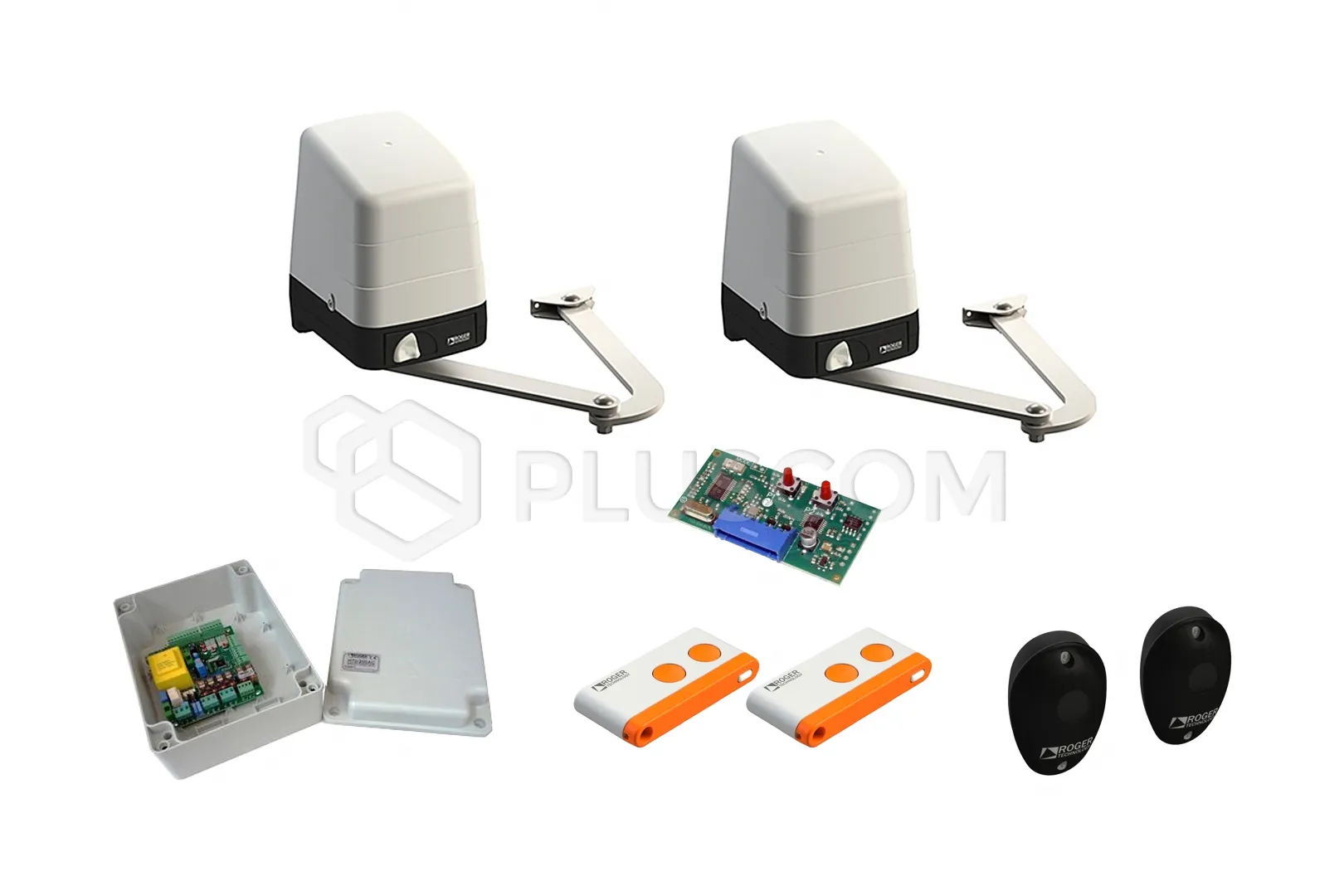

Roger Technology SET H23/282/L SET LIGHT with 230V motor drive for swing gates up to 2.8m


The set consists of:

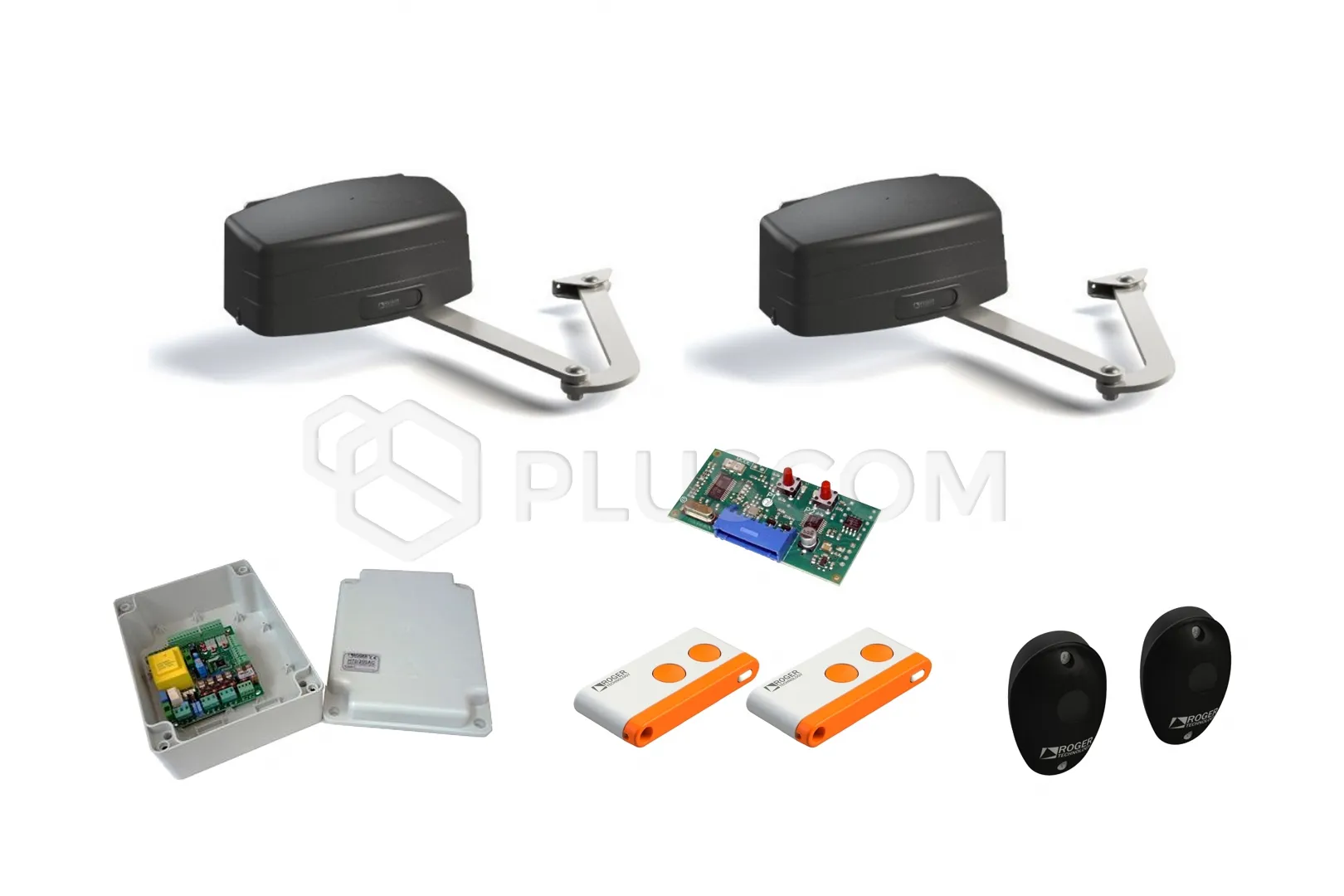

Roger Technology SET R23/373/L SET LIGHT

Roger Technology SET R23/373/L SET LIGHT
Drive with 230V AC motor, with folding arm, for very intensive work, for swing gates with a maximum leaf length of 2.8 m. Equipped with an optical encoder, microswitch limiters for opening and closing and metal alloy gears, without plastic, without Teflon, without nylon.

FEATURES:

  • Optical encoder management
  • Key release
  • Soft start and slowdown
  • Low energy consumption
The actuator set is enriched with two 2-channel T80/TX2 fixed code/rolling code remote controls operating at 433.92MHz and a set of R90/F2ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC
  • Nominal power: 200 W
  • Force: 300 N
  • Speed: 1.2 rpm (12 s opening to 90°)
  • Gear motor type: irreversible
  • Capacitor: 10 µF
  • Motor thermal protection: 150°C
  • Encoder: optical
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 190 x 284 x 230 mm
