Roger Technology SET R21/353/L Set

1883,79 EUR including 23.00% VAT
Product code: #33377
Manufacturer: Roger Technology
  • Leaf length: max 3.5m
  • Leaf weight: max 800kg
  • 230 V AC engine power supply
  • 2 x T80/TX2 remote control, R90/F4ES photocells, H70/200AC/BOX control panel
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology R21/ENC/2 Optical Encoder Roger Technology LT301 Chain Gear Kit Roger Technology LT300 Gate opening lever kit Roger Technology H70/200AC Control unit for 2 230V DC motors Roger Technology FU103 Housing and cover made of stainless steel INOX 304 Roger Technology FU102 Galvanized housing and stainless steel cover INOX 304 Roger Technology FU101 Galvanized steel housing and cover Roger Technology FU100 Galvanized steel housing and cover Roger Technology RL651 Key Unlock Roger Technology RL650 Lever release

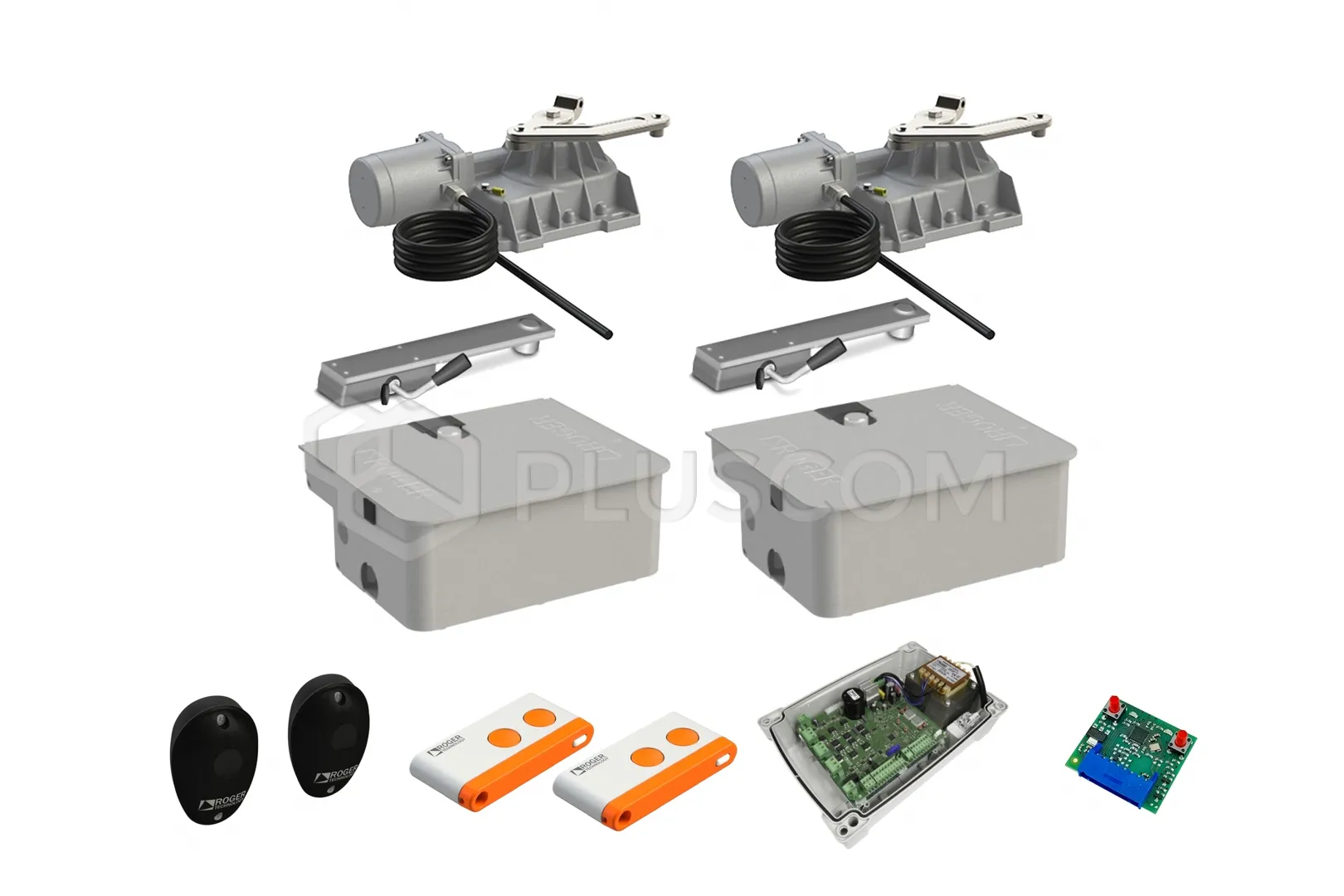

Roger Technology SET R21/353/L Set for double-leaf gates up to 3.5m long and weighing up to 800kg


The set consists of:
Roger Technology SET R21/353/L Set

Roger Technology SET R21/353/L Set
The biggest advantage of underground actuators is the aesthetics and discretion of the drive, which is invisible and does not spoil the image of the gate.
The second significant advantage of underground drives is the possibility of installation in a place where, due to:
  • narrow entrance
  • very narrow posts where the A dimension is less than 100mm
  • there is no space for the installation of screw drives or with a folding arm
R21/351 is an underground actuator, allowing for the implementation of a stylish and discreet automation installation for gates with a wing length of up to 3.5m and a weight of 800kg.

The greatest advantage of underground actuators is the aesthetics and discretion of the drive, which is invisible and does not spoil the image of the gate.
The second significant advantage of underground drives is the possibility of installation in a place where due to:
  • narrow entrance
  • very narrow posts where dimension A is less than 100mm
  • there is no space for installing screw drives or with a folding arm
The drive is with a 230V AC motor for swing gates with a maximum leaf length of 3.5m.
The opening time to 90° is 19s.

FEATURES:

  • A quiet and invisible solution that does not interfere with the appearance of the gate
  • Mechanical limiter for opening and closing
  • Metal alloy gear - no plastic, no Teflon, no nylon
  • Soft start and slowdown
  • Low energy consumption
  • Dedicated control unit (to be purchased separately): H70/230AC
  • Optional management using an optical encoder (R21/ENC/2)

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC
  • Nominal power: 200 W
  • Force: 300 N
  • Speed: 1.2 cm/s (19 s opening to 90°)
  • Gear motor type: irreversible
  • Encoder: optical (optional)
  • Protection class: IP 67
  • Operating temperature: -20°C to +55°C
  • Dimensions with housing (W x L x D): 414 x 339 x 166 mm
  • Weight: 14.1 kg
