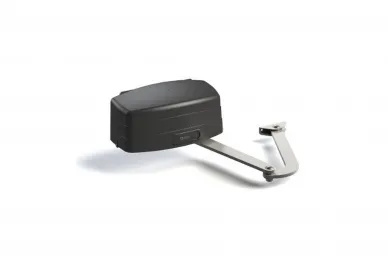

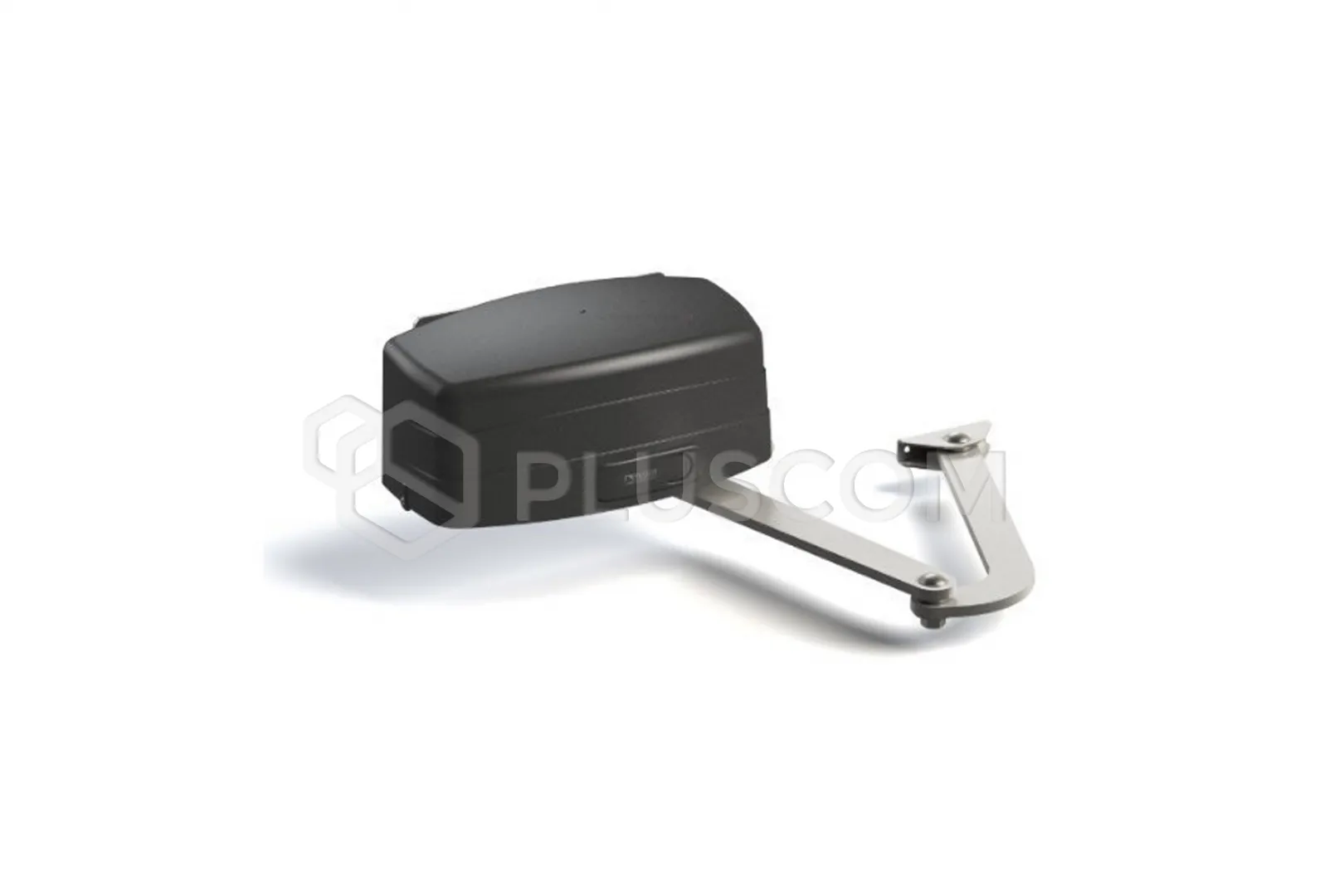

Roger Technology R23/371 Drive with 230V motor

710,33 EUR including 22.00% VAT
Product code: #33302
Manufacturer: Roger Technology
  • Leaf length up to 3.5m
  • Leaf weight up to 400kg
  • Engine power supply 230V
  • Optical encoder
  • For very wide posts
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology LT303 Long arm, articulated Roger Technology LT302 Short arm, articulated Roger Technology H70/200AC/BOX Control unit for 2 230V AC motors

Roger Technology R23/371 Drive with a 230V asynchronous motor for swing gates up to 3.5m


Drive with a 230V AC asynchronous motor, with a folding arm, for very intensive work. Adapted for mounting on very wide posts, even up to 50 cm hinge depth.

FEATURES:

  • Intensive use
  • Alloy gear, no plastic, no Teflon, no nylon
  • Optical encoder
  • For very wide posts, dimension B = 500 mm (with optional LT303 arm)
  • Drive unlocking secured with a personalized key
  • Control panel with LED display
  • Soft start and slowdown

TECHNICAL DATA:

  • Mains power supply: 230 V AC - 50 Hz
  • Motor power supply: 230 V AC
  • Rated power: 200 W
  • Use frequency: 50%
  • Force: 400 N
  • Gear motor type: Irreversible
  • Speed: 1.5 rpm
  • Opening time to 90°: 14 s
  • Limit switches: Microswitch limiters for opening and closing
  • Motor thermal protection: 150°C
  • Capacitor: 10 uF
  • Control unit: H70/200AC
  • Operating temperature: -20°C / +55°C
  • Protection class: IP43
  • Weight: 13.6 kg
