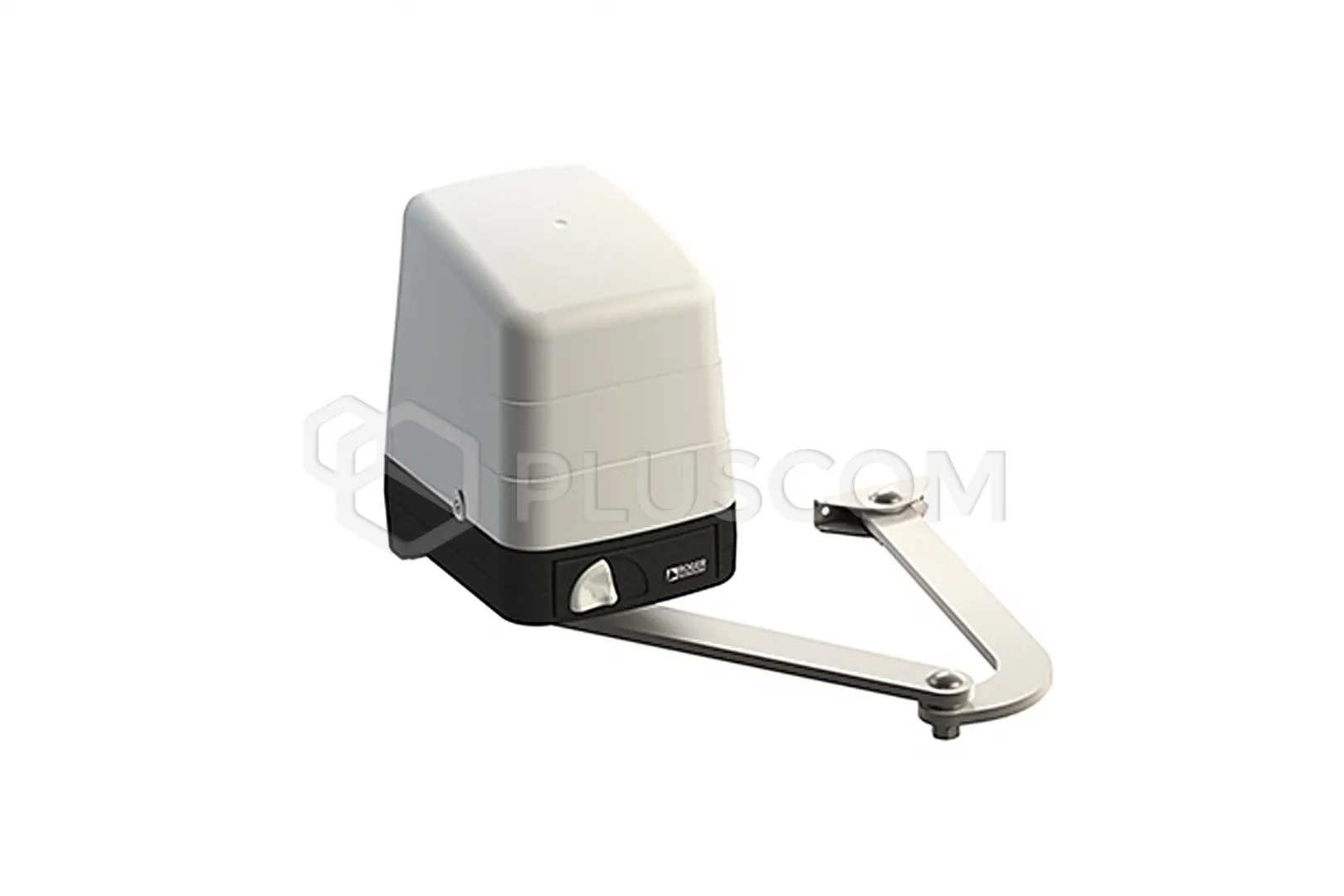

Roger Technology H23/282 Drive with 230V motor

571,35 EUR including 22.00% VAT
Product code: #33193
Manufacturer: Roger Technology
  • Leaf length up to 2.8m
  • Leaf weight up to 300kg
  • Engine power supply 230V
  • Optical encoder
  • For intensive work
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology LT338 Sliding Arm Roger Technology LT302 Short arm, articulated Roger Technology H70/200AC/BOX Control unit for 2 230V AC motors

Roger Technology H23/282 Drive with 230V motor for swing gates up to 2.8m


Drive with 230V AC motor, with folding arm, for very intensive work, for swing gates with a maximum leaf length of 2.8 m. Equipped with an optical encoder, microswitch limiters for opening and closing and metal alloy gears, no plastic, no Teflon, no nylon.

FEATURES:

  • Management by means of an optical encoder
  • Key release
  • Soft start and slowdown
  • Low energy consumption

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC
  • Nominal power: 200 W
  • Force: 300 N
  • Speed: 1.2 rpm (12 s opening to 90°)
  • Gear motor type: irreversible
  • Capacitor: 10 µF
  • Motor thermal protection: 150°C
  • Encoder: optical
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 190 x 284 x 230 mm
