Roger Technology TW90/600/HS/L KIT LIGHT

1167,64 EUR including 23.00% VAT
Product code: #40541
Manufacturer: Roger Technology
  • gate weight: up to 600kg
  • 24V engine
  • drive for mounting in a post
  • HI-SPEED version
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SŁUPEK RAL/85 Post for mounting the TW90 drive Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology SŁUPEK RAL/190 Post for mounting the TW90 drive Roger Technology B71/BC Battery Charging Card Roger Technology SŁUPEK RAL/160 Post for mounting the TW90 drive Roger Technology POST O/85 Post for mounting the TW90 drive Roger Technology POST O/160 Post for mounting the TW90 drive Roger Technology RAL-EXTRA/85 Additional charge for painting in any RAL color Roger Technology RAL-EXTRA/190 Additional charge for painting in any RAL color Roger Technology RAL-EXTRA/160 Additional charge for painting in any RAL color

Roger Technology KIT TW90/600/HS/L Set with 24V brushless motor drive HIGHT SPEED

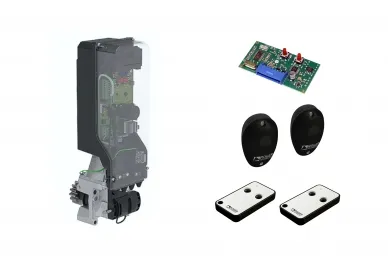

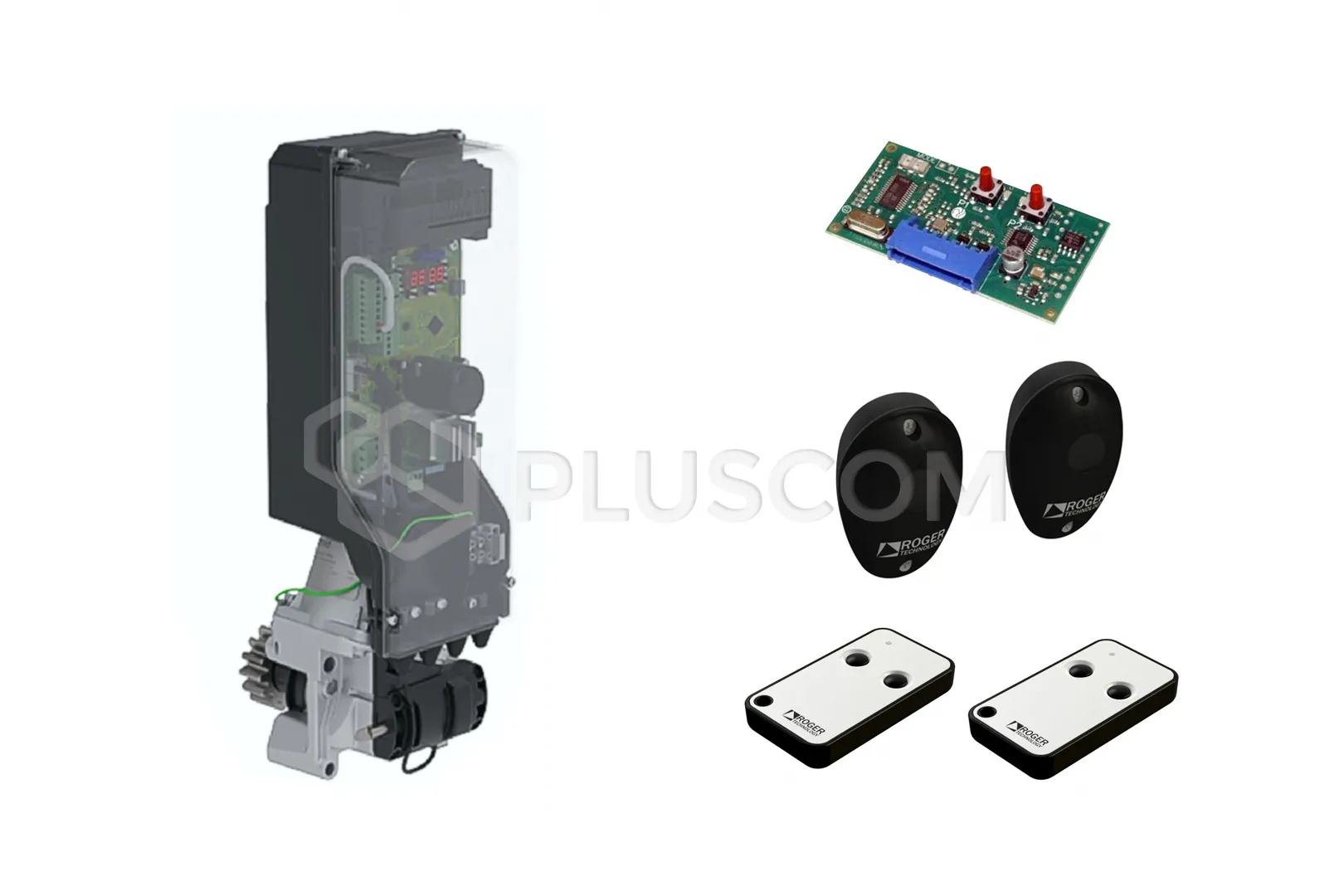

The set consists of:
Roger Technology TW90/600/HS/L Set

Roger Technology TW90/600/HS/L Set
Column drive with HIGH SPEED brushless motor 24V (25 m/min), for very intensive work, for sliding gates with a maximum weight of 600 kg, with an absolute encoder, built-in B70/1T control unit, without limit switches.

FEATURES:

  • Gate weight max 600 kg
  • Drive for mounting in a post
  • Brushless motor 24 V
  • High Speed ​​version
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply
The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a copy function, operating at a frequency of 433.92MHz and a set of photocells R90/F2ES, based on infrared technology.

TECHNICAL DATA:

  • Maximum gate weight: 600 kg
  • Mains power supply: 230V AC - 50 Hz
  • Motor power supply: 24V
  • Nominal power: 180W
  • Use: Intensive
  • Force: 540 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Gear motor type: Self-locking
  • Speed: 5.7 - 25 m/min (0.42 m/s)
  • Limit switches: built-in
  • Control unit (built-in): B70/1T
  • Encoder: Built-in digital + magnetic digital SENSRED, 4094 pulses per revolution
  • External gear module: Z15/mod.4
  • Number of cycles per day (opening/closing - 24h non-stop): unlimited cycles
  • Dimensions: 132 x 138.5 x 470 mm
  • Weight: 7.7 kg
