Roger Technology TW90/800 24V Brushless Motor Drive

1019,16 EUR including 22.00% VAT
Product code: #40556
Manufacturer: Roger Technology
  • gate weight: up to 800kg
  • 24V engine
  • drive for mounting in a post
  • no limit switches
  • speed: 12.3m/min
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SŁUPEK RAL/190 Post for mounting the TW90 drive Roger Technology B71/BC Battery Charging Card Roger Technology SŁUPEK RAL/160 Post for mounting the TW90 drive Roger Technology POST O/85 Post for mounting the TW90 drive Roger Technology POST O/160 Post for mounting the TW90 drive Roger Technology RAL-EXTRA/85 Additional charge for painting in any RAL color Roger Technology RAL-EXTRA/190 Additional charge for painting in any RAL color Roger Technology RAL-EXTRA/160 Additional charge for painting in any RAL color Roger Technology POST O/85 Post for mounting the TW90 drive Roger Technology SET BT12V12 2 batteries for sliding gates

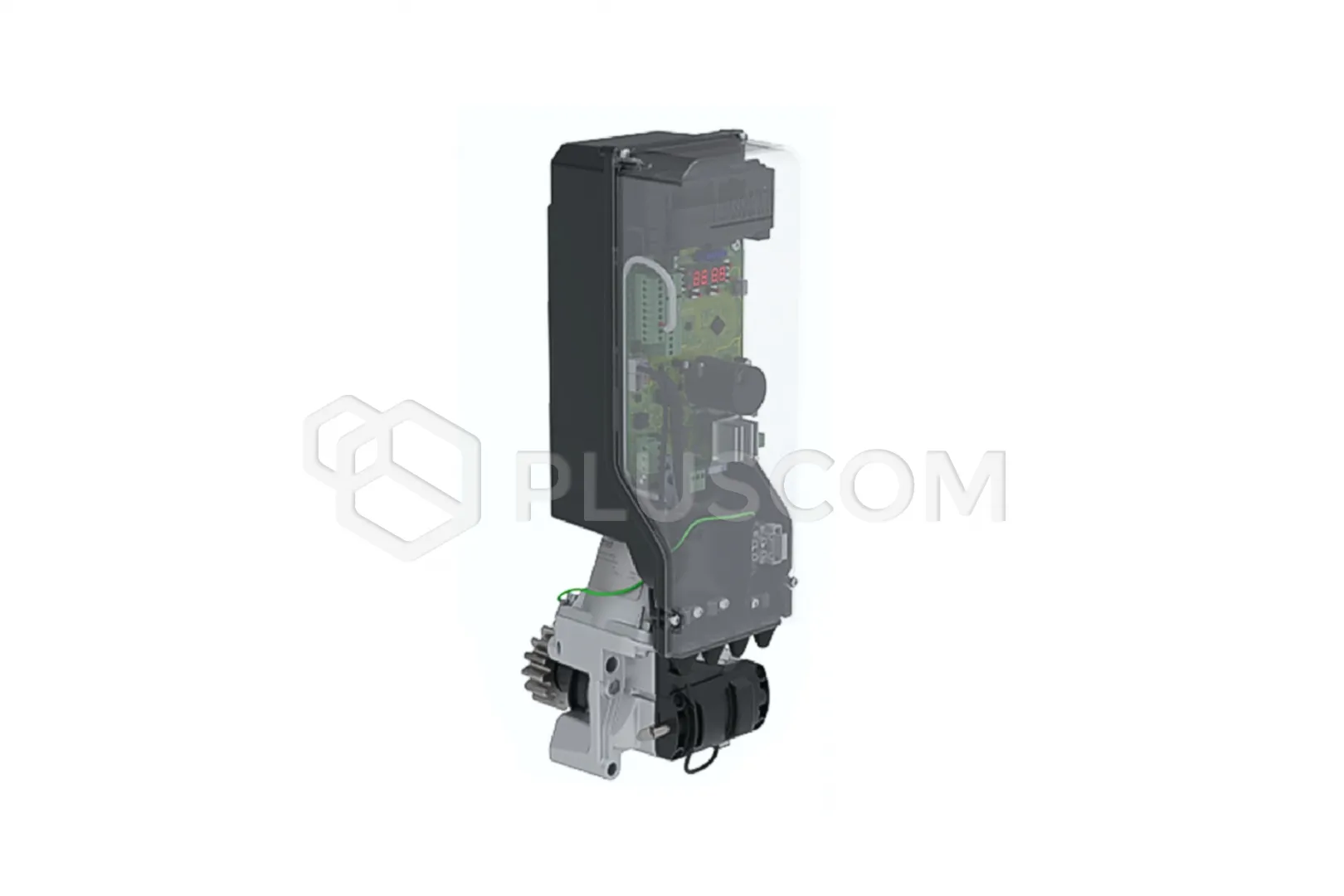

Roger Technology TW90/800 Drive with 24V brushless motor for sliding gates up to 800 kg, for installation in a post


Column drive with brushless motor, for very intensive work, for sliding gates with a maximum weight of 800 kg, with absolute encoder, built-in B70/1T control unit, without limit switches.

FEATURES:

  • Gate weight max 800 kg
  • Drive for mounting in a post
  • Brushless motor 24 V
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Non-integrated digital control unit without relays
  • Built-in absolute encoder
  • High operating culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply

DANE TECHNICZNE:

  • Maksymalny ciężar bramy: 800 kg
  • Zasilanie sieciowe: 230 V AC - 50 Hz
  • Zasilanie silnika: 24 V
  • Moc znamionowa: 180 W
  • Użytkowanie: Intensywne
  • Siła: 690 N
  • Temperatura pracy: -20°C / +55°C
  • Stopień ochrony: IP44
  • Typ motoreduktora: Samohamowny
  • Prędkość: 12.3 m/min (0.2 m/s)
  • Centrala sterująca: B70/1T
  • Enkoder: Wbudowany cyfrowy + magnetyczny cyfrowy SENSRED, 4094 impulsów na obrót
  • Moduł koła zębatego zewnętrznego: Z15/mod.4
  • Ilość cykli na dobę (otwieranie/zamykanie - 24h non stop): bez limitu cykli
  • Wymiary: 132 x 138,5 x 470
  • Waga produktu zapakowanego: 7,7 kg
