Roger Technology TW90/600/HS 36V HIGH SPEED Brushless Motor Drive

1011,96 EUR including 23.00% VAT
Product code: #40540
Manufacturer: Roger Technology
  • gate weight: up to 600kg
  • 24V engine
  • drive for mounting in a post
  • HI-SPEED version
  • speed: 25m/min
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology RAL-EXTRA/85 Additional charge for painting in any RAL color Roger Technology RAL-EXTRA/190 Additional charge for painting in any RAL color Roger Technology RAL-EXTRA/160 Additional charge for painting in any RAL color Roger Technology POST O/85 Post for mounting the TW90 drive Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology SŁUPEK RAL/85 Post for mounting the TW90 drive Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology SŁUPEK RAL/190 Post for mounting the TW90 drive Roger Technology B71/BC Battery Charging Card

Roger Technology TW90/600/HS Brushless motor drive 24V HIGH SPEED

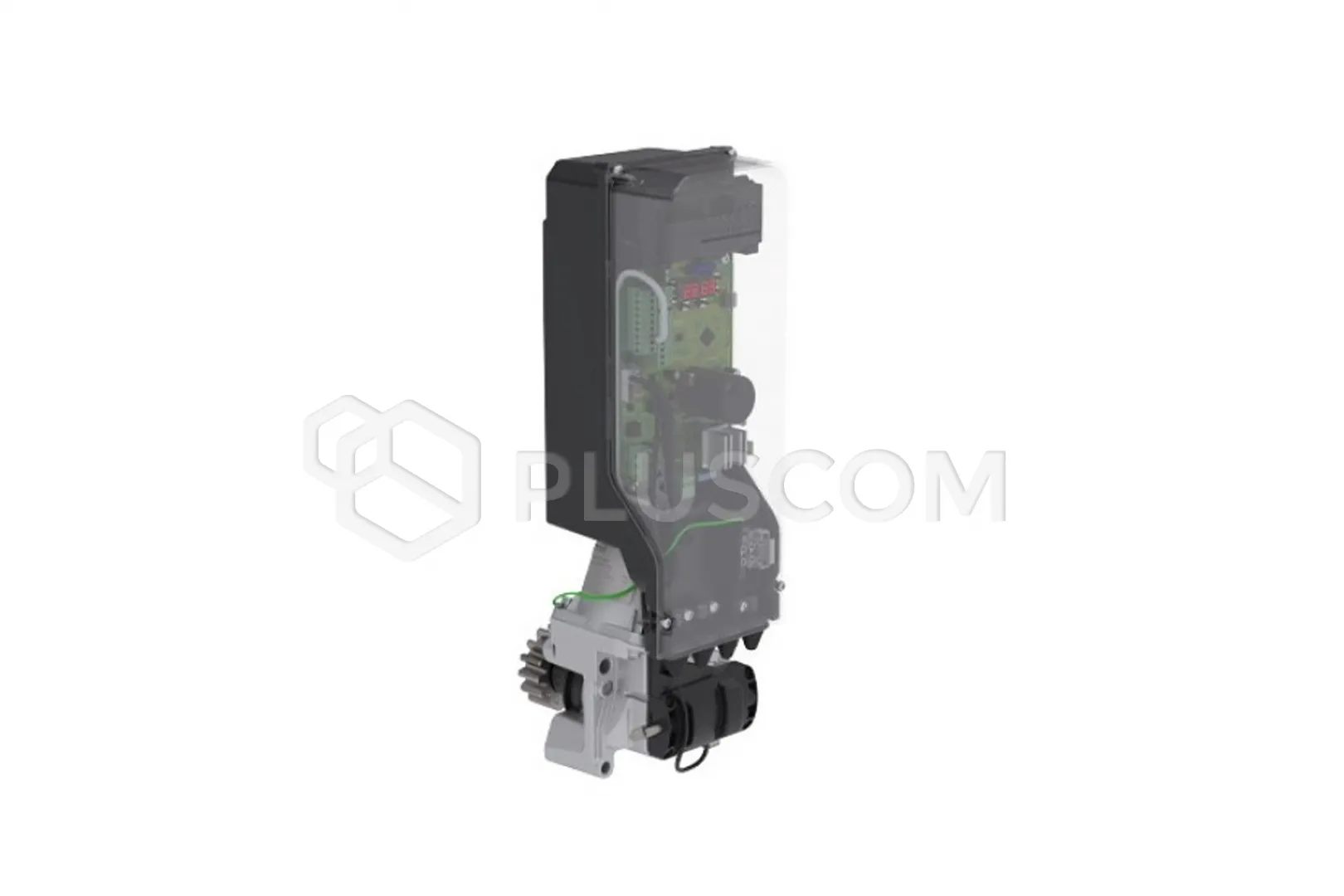

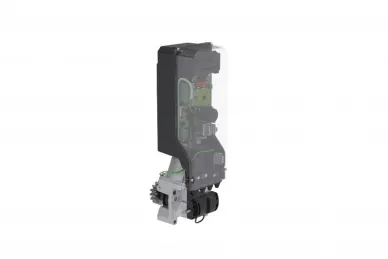

Column drive with brushless motor HIGH SPEED 24V (25 m/min), for very intensive work, for sliding gates with a maximum weight of 600 kg, with absolute encoder, built-in B70/1T control unit, without limit switches.

FEATURES:

  • Gate weight max 600 kg
  • Drive for mounting in a post
  • 24 V brushless motor
  • High Speed version
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply

TECHNICAL DATA:

  • Maximum gate weight: 600 kg
  • Mains power supply: 230V AC - 50 Hz
  • Motor power supply: 24V
  • Nominal power: 180W
  • Use: Intensive
  • Force: 540 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Gear motor type: Self-locking
  • Speed: 5.7 - 25 m/min (0.42 m/s)
  • Limit switches: built-in
  • Control unit (built-in): B70/1T
  • Encoder: Built-in digital + magnetic digital SENSRED, 4094 pulses per rotation
  • External gear module: Z15/mod.4
  • Number of cycles per day (opening/closing - 24h non-stop): no cycle limit
  • Dimensions: 132 x 138.5 x 470 mm
  • Weight: 7.7 kg
