Roger Technology KIT TW90/800/L KIT LIGHT

1173,59 EUR including 22.00% VAT
Product code: #40614
Manufacturer: Roger Technology
  • gate weight: up to 800kg
  • 24V engine
  • drive for mounting in a post
  • speed: 12.3m/min
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology RAL-EXTRA/85 Additional charge for painting in any RAL color Roger Technology RAL-EXTRA/190 Additional charge for painting in any RAL color Roger Technology RAL-EXTRA/160 Additional charge for painting in any RAL color Roger Technology POST O/85 Post for mounting the TW90 drive Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology SŁUPEK RAL/85 Post for mounting the TW90 drive Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology SŁUPEK RAL/190 Post for mounting the TW90 drive Roger Technology B71/BC Battery Charging Card

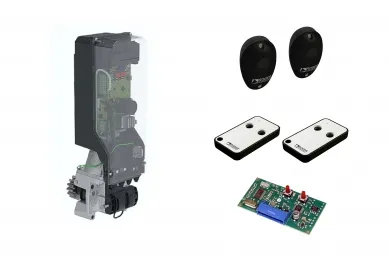

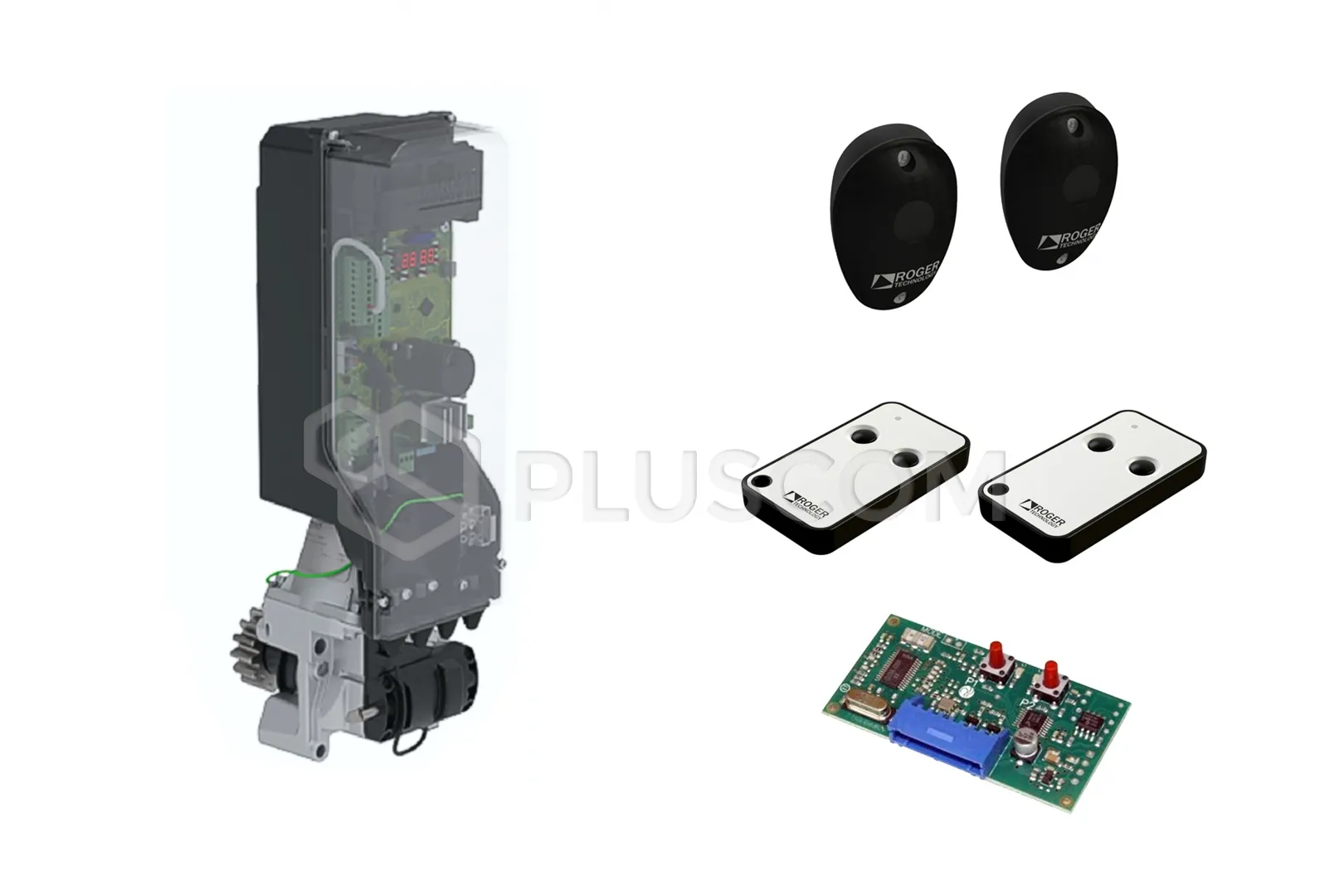

Roger Technology KIT TW90/800/L Brushless motor drive kit 24V for sliding gates up to 800 kg, for installation in a post


The kit consists of:
Roger Technology KIT TW90/800/L KIT LIGHT

Roger Technology KIT TW90/800/L KIT LIGHT
Column drive with brushless motor, for very intensive work, for sliding gates with a maximum weight of 800 kg, with absolute encoder, built-in control unit B70/1T, without limit switches.

FEATURES:

  • Gate weight max 800 kg
  • Drive for mounting in a post
  • Brushless motor 24 V
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Non-integrated digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply
The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a fixed code of 433.92 MHz with copy function and a set of R90/F2ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Maximum gate weight: 800 kg
  • Mains power supply: 230 V AC - 50 Hz
  • Motor power supply: 24 V
  • Nominal power: 180 W
  • Use: Intensive
  • Force: 690 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Gear motor type: Self-locking
  • Speed: 12.3 m/min (0.2 m/s)
  • Control unit: B70/1T
  • Encoder: Built-in digital + magnetic digital SENSRED, 4094 pulses per revolution
  • External gear module: Z15/mod.4
  • Number of cycles per day (opening/closing - 24h non-stop): unlimited cycles
  • Dimensions: 132 x 138.5 x 470
  • Weight of the packed product: 7.7 kg
