Roger Technology TW90/620/HS 24V Brushless Motor Drive HIGH SPEED

1083,57 EUR including 23.00% VAT
Product code: #40554
Manufacturer: Roger Technology
  • gate weight: up to 600kg
  • 24V engine
  • drive for mounting in a post
  • no limit switches
  • speed: 25m/min
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology RAL-EXTRA/160 Additional charge for painting in any RAL color Roger Technology POST O/85 Post for mounting the TW90 drive Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology SŁUPEK RAL/85 Post for mounting the TW90 drive Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology SŁUPEK RAL/190 Post for mounting the TW90 drive Roger Technology B71/BC Battery Charging Card Roger Technology SŁUPEK RAL/160 Post for mounting the TW90 drive Roger Technology POST O/85 Post for mounting the TW90 drive

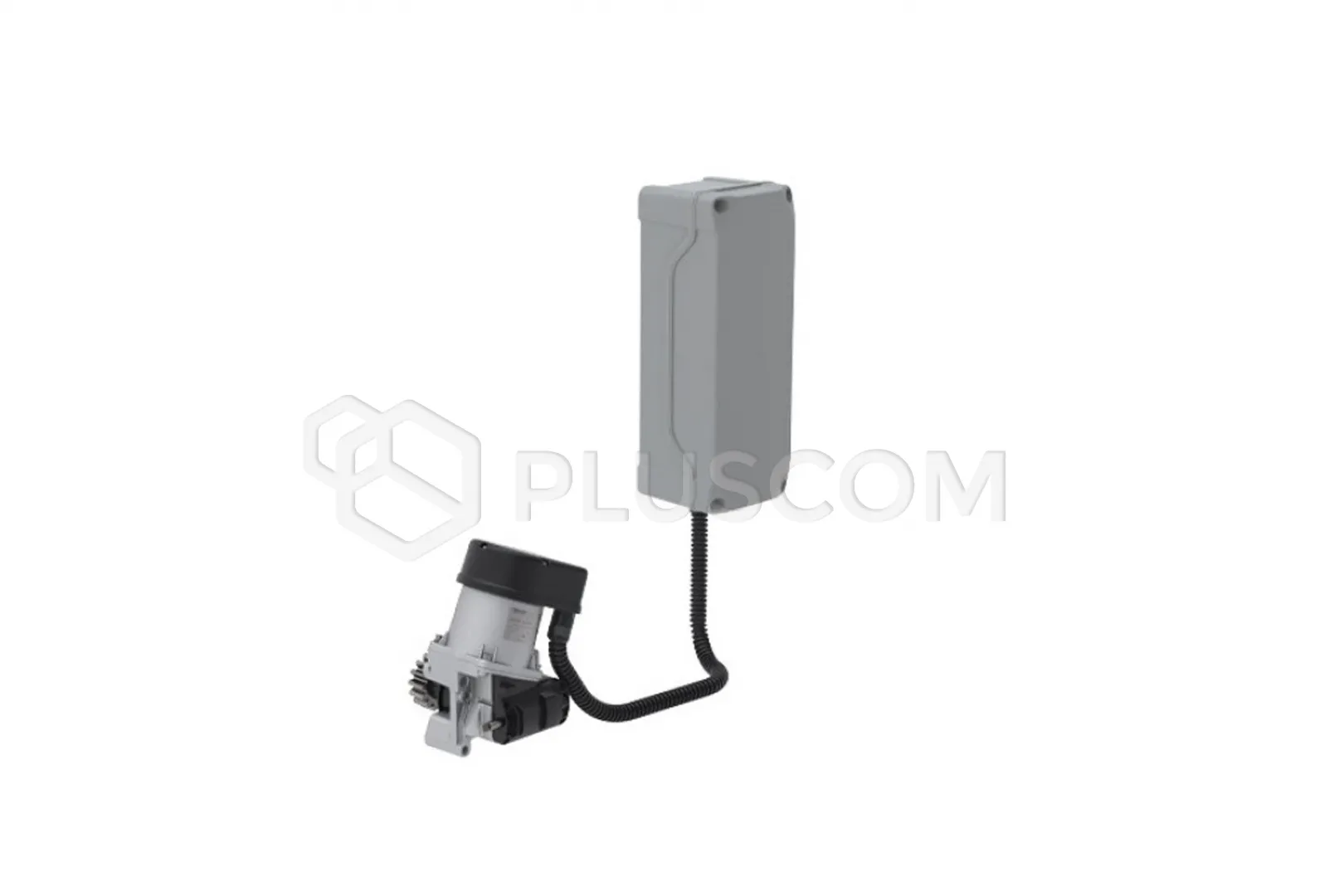

Roger Technology TW90/620/HS Drive with 24V brushless motor for sliding gates up to 600 kg, for installation in a post


Column drive with HIGH SPEED 24V (25m/min) brushless motor, for very intensive work, for sliding gates with a maximum weight of 600 kg, with an absolute encoder, with a B70/1T control unit separated from the drive by a maximum of 1 m, without limit switches.

FEATURES:

  • Gate weight max 600 kg
  • Drive for mounting in a post
  • Brushless motor 24 V
  • High Speed version
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Non-integrated digital control unit without relays
  • Built-in absolute encoder
  • High operating culture
  • Very low energy consumption
  • Possibility of configuring solar power supply

TECHNICAL DATA:

  • Maximum gate weight: 600 kg
  • Mains power supply: 230V AC - 50 Hz
  • Motor power supply: 24V
  • Nominal power: 180W
  • Use: Intensive
  • Force: 540 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Gear motor type: Self-locking
  • Speed: 5.7 - 25 m/min (0.42 m/s)
  • Control unit (built-in): B70/1T
  • Encoder: Built-in digital + magnetic digital SENSRED, 4094 pulses per revolution
  • External gear module: Z15/mod.4
  • Number of cycles per day (opening/closing - 24h non-stop): no cycle limit
  • Dimensions: 166 x 134.4 x 214.5 mm
  • Weight: 7.7 kg
