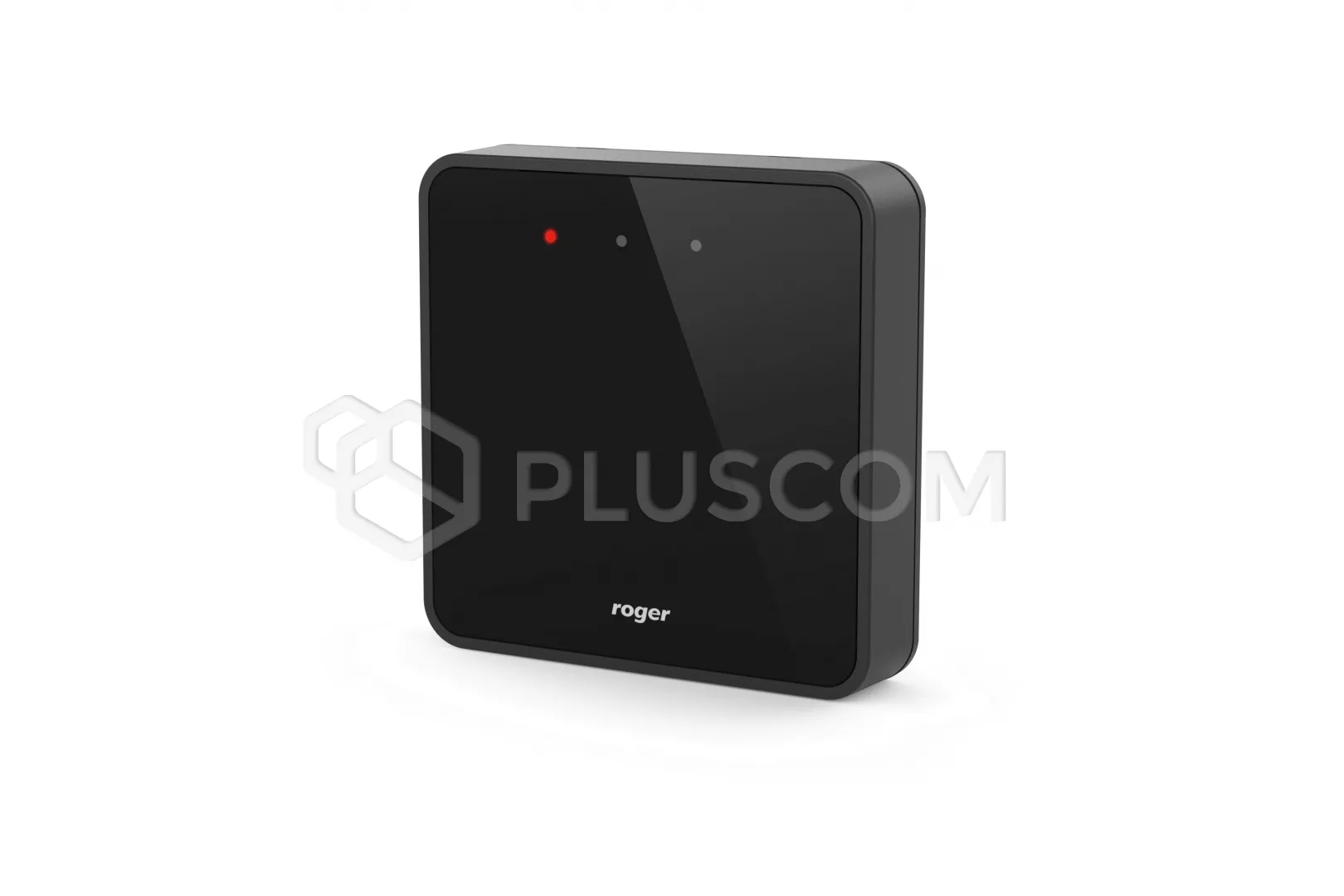

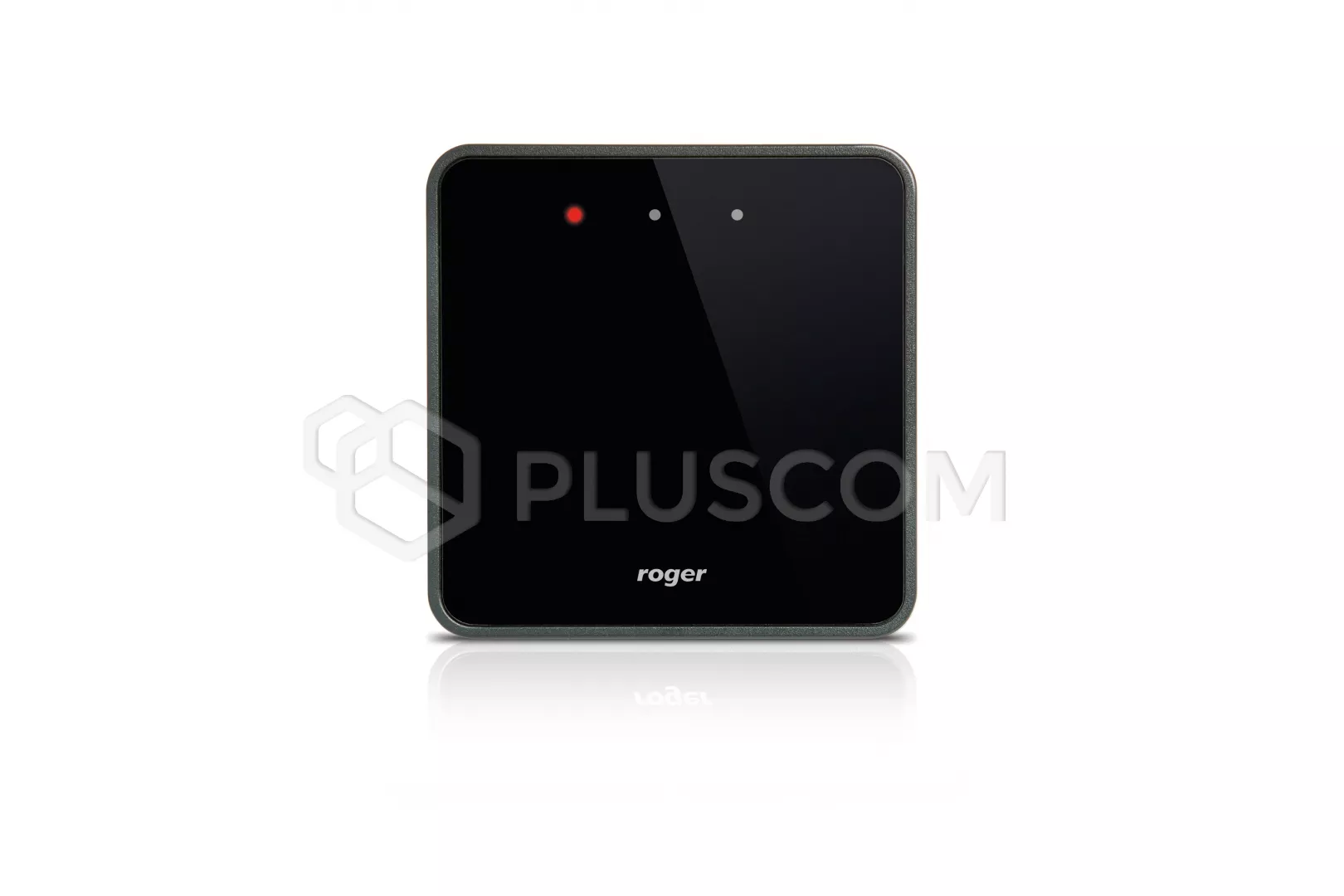

Roger PRT82MF-BK Indoor proximity reader

Roger PRT82MF-BK ISO/IEC 14443A/MIFARE Indoor proximity reader

PRT82MF-BK readers are designed to work with access controllers which support RACS CLK/DTA or Wiegand 24..66 bit data output formats. Readers cannot be operated as standalone devices and they are dedicated to reading and transmitting a card number to access controller. Contrary to other PRTxxMF series readers can also read the most secure MIFARE DESFire and MIFARE Plus card in full range (both CSN and PCN). The factory new reader is pre-configured with RACS CLK/DTA operating mode and ID=0 address. The mode can be changed from PC (RogerVDM) or within the procedure of manual programming of operating mode.

Features

• ISO14443A RFID proximity cards:
• • MIFARE ULTRALIGHT
  • MIFARE Classic 1k and 4k
• CSN and PCN reading for MIFARE cards
• RACS CLK/DTA output format
• Wiegand 26..66 bit output format
• Three LED indicators
• LEDs controlled by inputs (Wiegand mode)
• Buzzer with adjustable loudness
• Buzzer controlled by input (Wiegand mode)
• Tamper contact
• Programming from PC (RogerVDM software)

READER CONFIGURATION
Readers can operate in various operating modes which determine the method of communication with controller. The mode and related output format can be configured with RogerVDM program (Windows) or within the procedure of manual programming of operating mode.


TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards:
• • MIFARE ULTRALIGHT
  • MIFARE Classic 1k i 4k
• average current consumption: 45mA
• read range: up to 7cm
• environment class: II
• IP41
• working temperature: -10 ° C ~ +50 ° C
• weight: approx. 100g
• dimensions: 85x85x22mm
