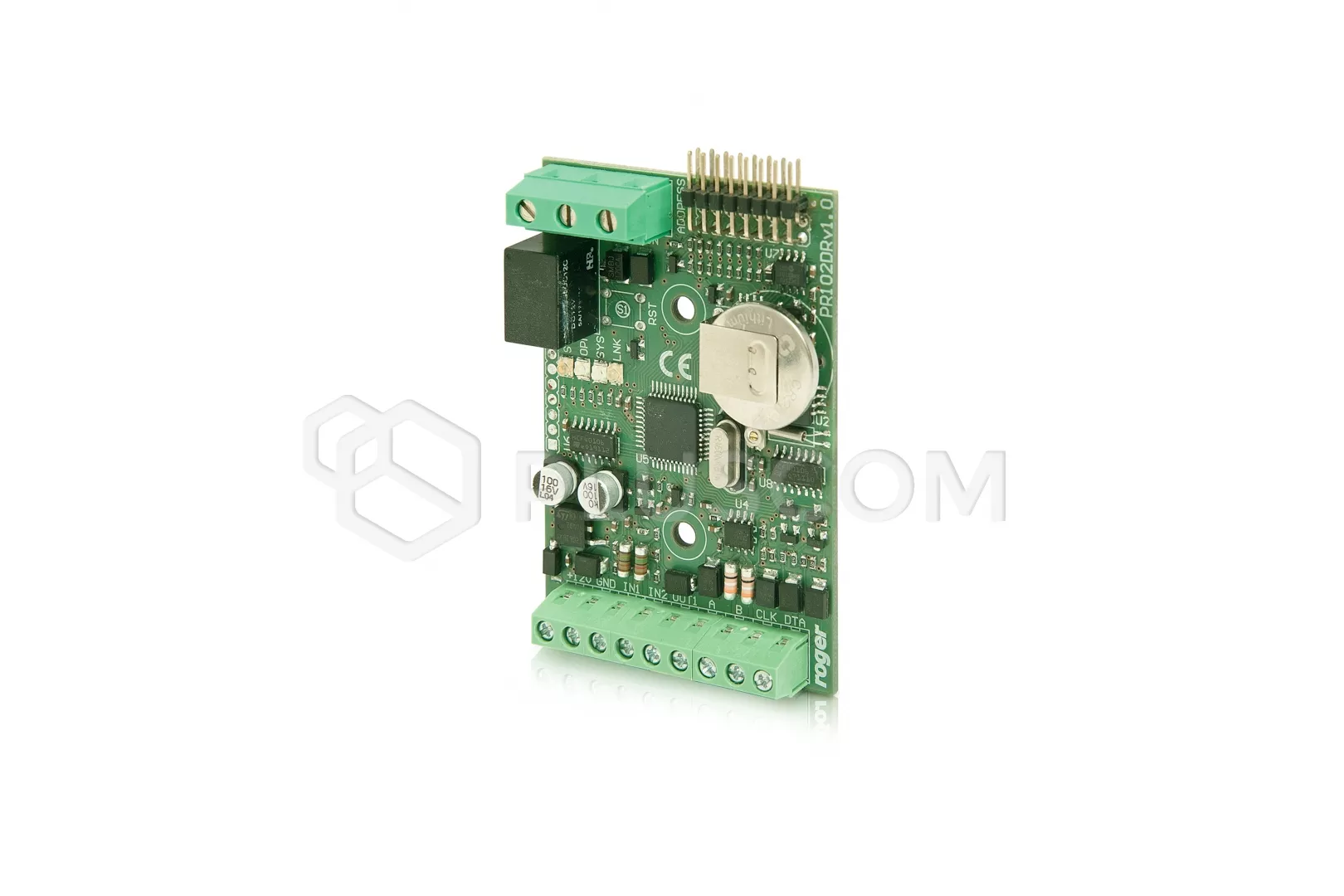

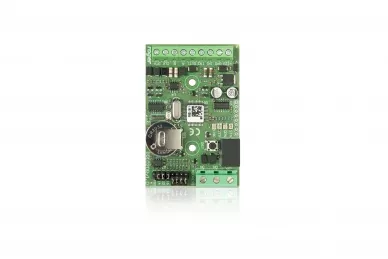

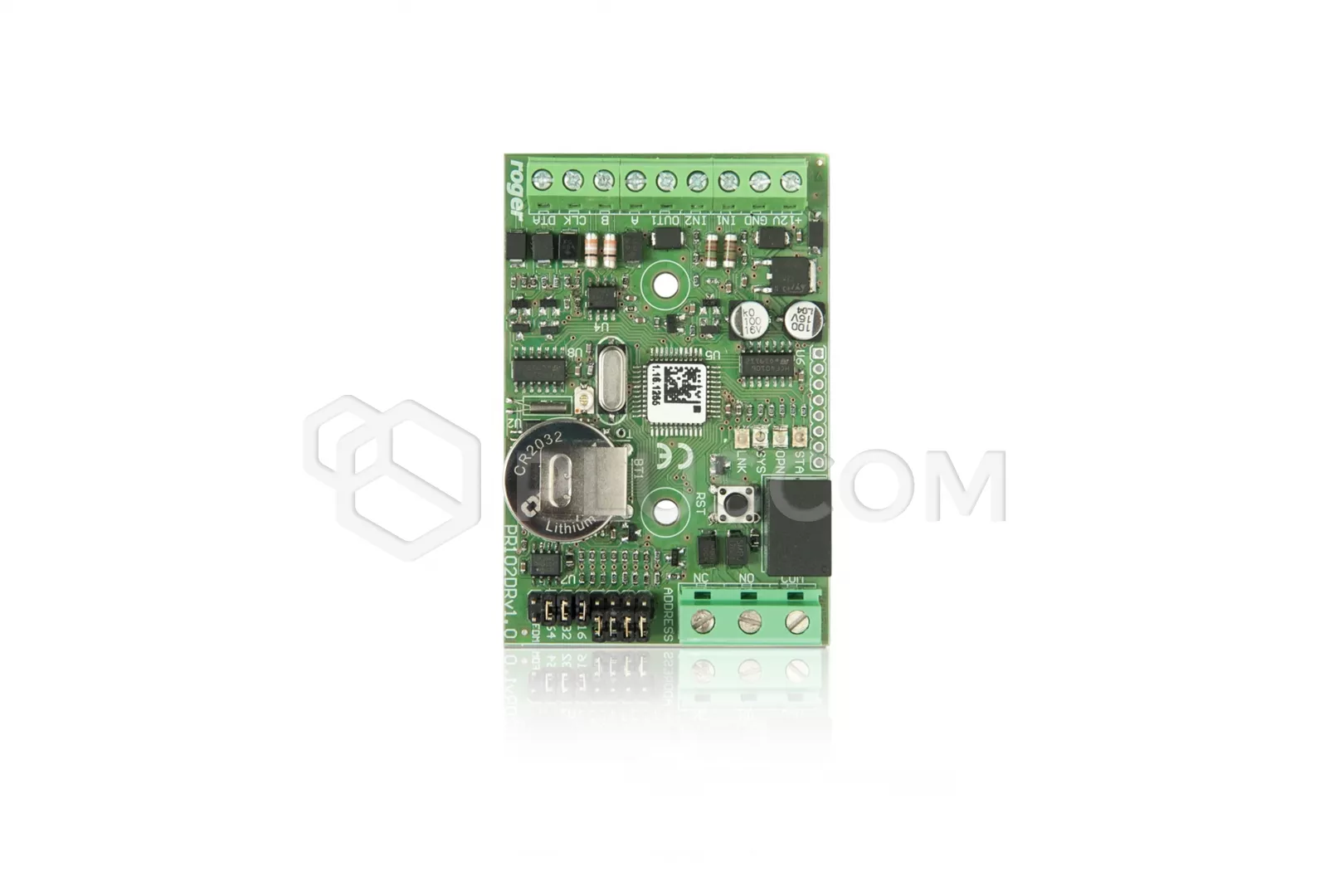

Roger PR102DR-BRD Electronic module of PR102DR access controller

Roger PR102DR-BRD Electronic module of PR102DR access controller

PR102DR-BRD access controllers may operate as standalone access control units or in integrated access control system with CPR network controllers. In standalone mode PR102DR-BRD autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real time clock. Access control system based on PR102DR-BRD modules can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN.

FEATURES:

• 2 programmable inputs/outputs
• 1 relay output 1.5 A/30 V
• programmed from PC
• RS485, RACS Clock&Data communication interface
• operation with RFT1000 readers
• up to 4000 users
• up to 32 000 built-in event buffer
• up to 33 000 000 event buffer in network equipped with CPR32-NET
• real time clock with battery backup
• user groups
• access zones
• schedules
• access control in elevators (XM-8 required)
• local APB
• global APB (CPR32 required)
• interlocking
• advanced access options: two users mode, conditional access, high security mode
• operation with barriers
• random user inspection
• integration with T&A system (RCP Master)
• integration with intruder alarm system
• integration with CCTV system (CCTV-DVR)

TECHNICAL PARAMETERS

• 12VDC power
• average current consumption: 40mA
• programmable NO / NC inputs: 2
• programmable relay outputs: 1 x 1.5A / 30V
• programmable transistor outputs: 1
• environment class: I
• working temperature: 5 ° C ~ 40 ° C
• weight: approx. 115g
• dimensions: 85.0 x 62.0 x 73.0 mm
