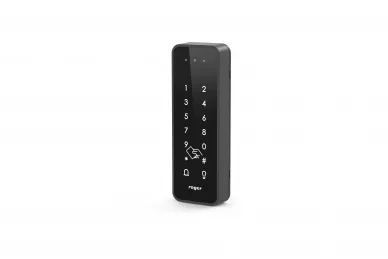

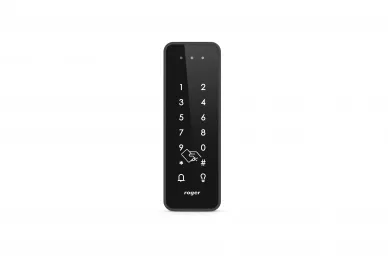

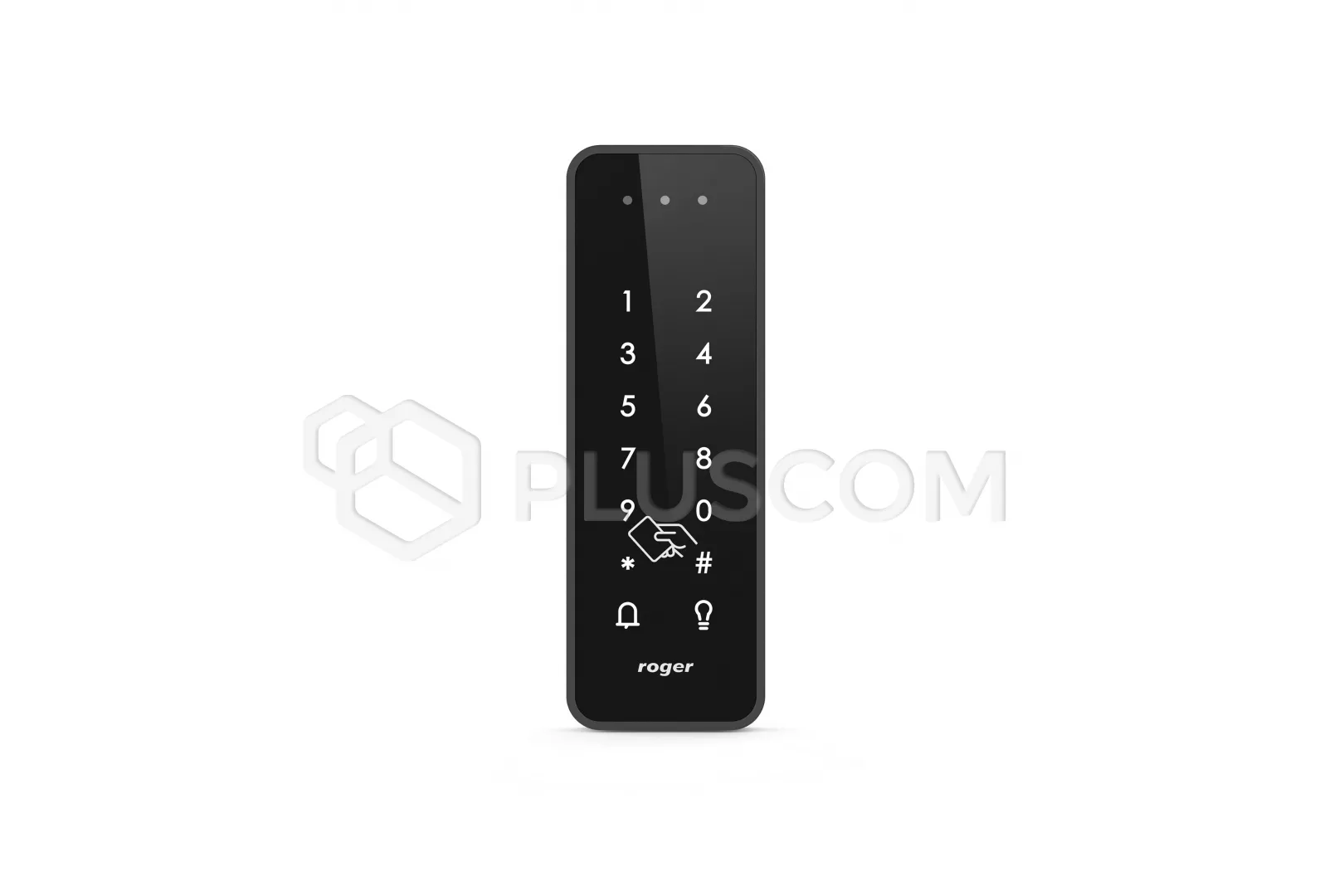

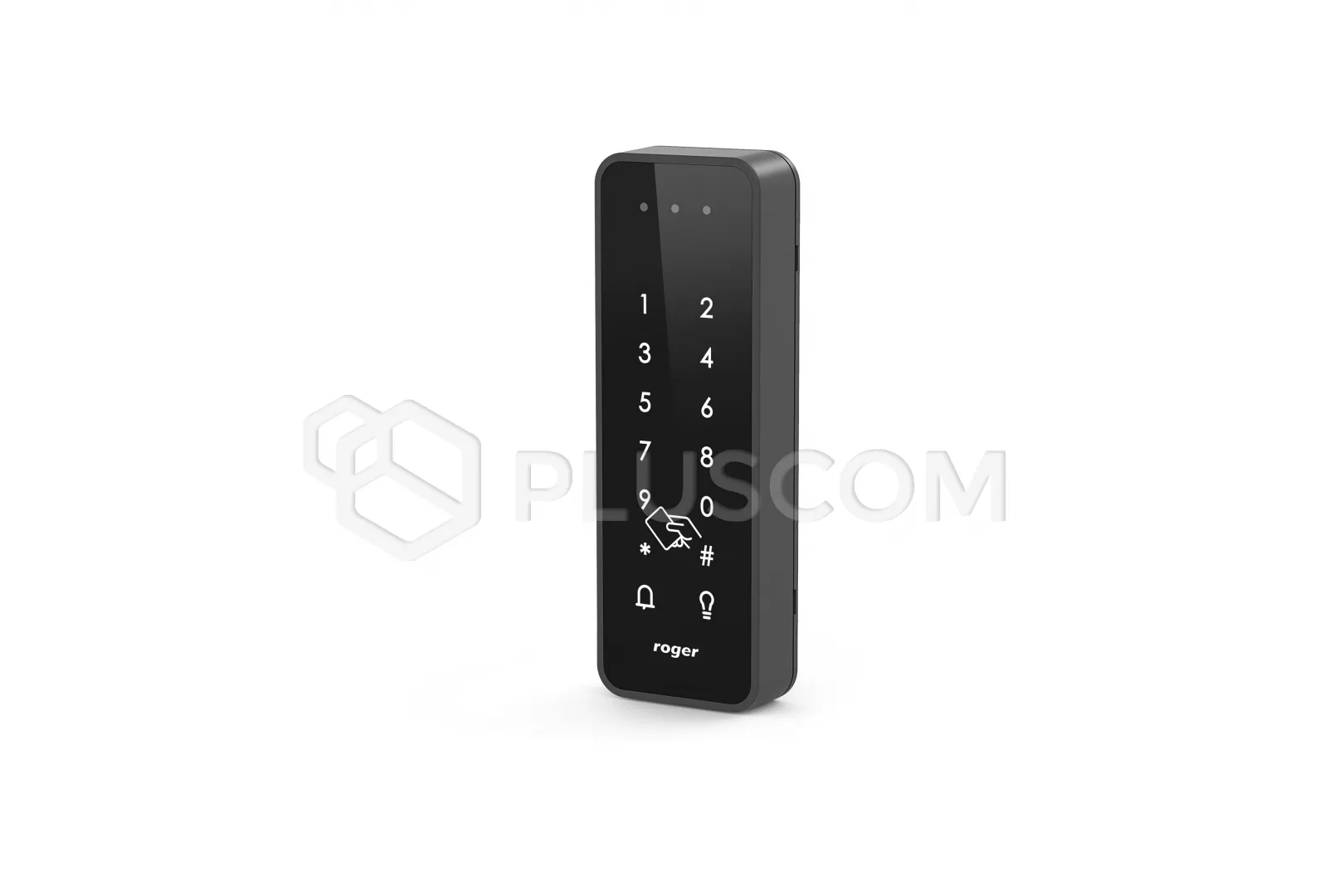

Roger PRT84MF Indoor proximity reader

Roger PRT84MF Indoor proximity reader with touch keypad

PRT84MF readers are designed to work with access controllers which support RACS CLK/DTA or Wiegand 24..66 bit data output formats. Readers cannot be operated as standalone devices and they are dedicated to reading and transmitting a card number or PIN to access controller. The factory new reader is pre-configured with RACS CLK/DTA operating mode and ID=0 address. The mode can be changed from PC (RogerVDM) or within the procedure of manual programming of operating mode.

Features

• ISO14443A RFID proximity cards:
• • 13.56MHz MIFARE Ultralight
  • MIFARE Classic
• CSN and PCN reading for MIFARE cards
• RACS CLK/DTA output format
• Wiegand 26..66 bit output format
• Three LED indicators
• LEDs controlled by inputs (Wiegand mode)
• Buzzer with adjustable loudness
• Buzzer controlled by input (Wiegand mode)
• Adjustable keypad backlight
• Tamper contact
• Programming from PC (RogerVDM software)

READER CONFIGURATION
Readers can operate in various operating modes which determine the method of communication with controller. The mode and related output format can be configured with RogerVDM program (Windows) or within the procedure of manual programming of operating mode.


TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards:
• • 13.56MHz MIFARE Ultralight
  • MIFARE Classic
• average current consumption: 65mA
• read range: up to 7cm
• environment class: II
• IP41
• working temperature: -10 ° C ~ +50 ° C
• weight: approx. 100g
• dimensions: 130x45x22mm
